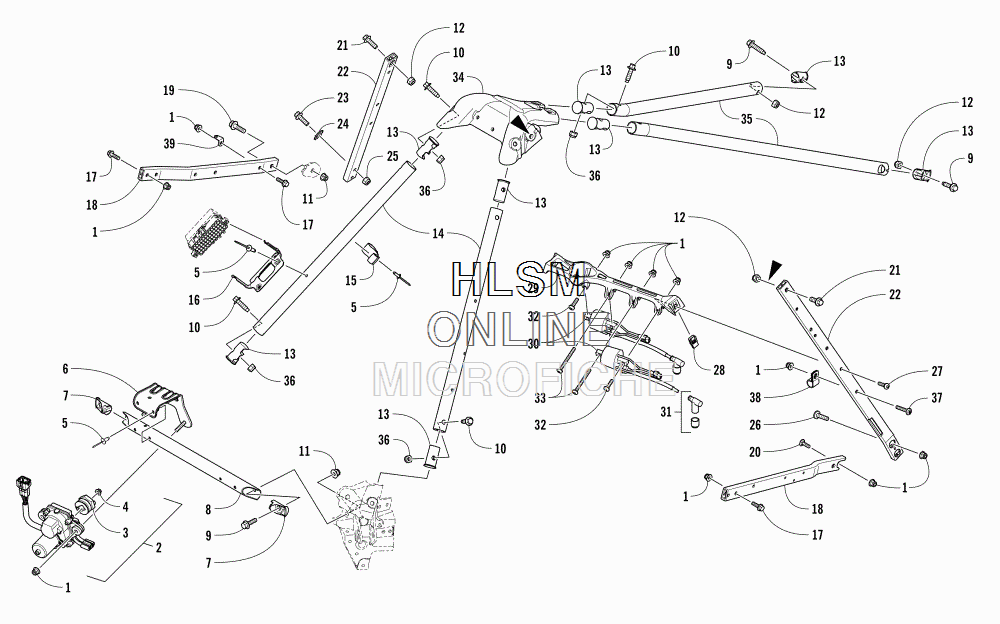

STEERING SUPPORT ASSEMBLY для Arctic Cat ZR 8000 LTD ES 137 GREEN - 2018 года выпуска
-
№АртикулНазвание
-
18427-602 NUT, LOCKNUT, LOCK
-
20902-012 SERVOMOTOR (INC. 3-4)SERVOMOTOR (INC. 3-4)
-
30902-019 ...PULLEY, CONTROLLER...PULLEY, CONTROLLER
-
48424-501 ...NUT...NUT
-
58060-686 RIVETRIVET
-
60708-642 BRACKET, SERVOMOTORBRACKET, SERVOMOTOR
-
71607-002 INSERTINSERT
-
81707-582 SUPPORT, SHOCK MOUNT BRACKET -BLACKSUPPORT, SHOCK MOUNT BRACKET -BLACK
-
91623-982 SCREW, CAPSCREW, CAP
-
101623-836 SCREW, CAPSCREW, CAP
-
118427-802 NUTNUT
-
128422-802 NUT, LOCKNUT, LOCK
-
131607-680 INSERTINSERT
-
142707-497 SPAR, FRONT - BLACKSPAR, FRONT - BLACK
-
151623-938 CLAMP, ROUTINGCLAMP, ROUTING
-
160645-653 BRACKET, MOUNTING - FUSE BLOCKBRACKET, MOUNTING - FUSE BLOCK
-
178408-630 SCREW, CAPSCREW, CAP
-
180607-248 SUPPORT, CHASSIS - RIGHTSUPPORT, CHASSIS - RIGHT
-
181607-583 SUPPORT, CHASSIS - LEFTSUPPORT, CHASSIS - LEFT
-
198408-885 SCREW, CAPSCREW, CAP
-
201623-917 BOLT, CARRIAGEBOLT, CARRIAGE
-
218408-820 SCREW, CAPSCREW, CAP
-
220607-252 SUPPORT, SIDE - REAR - RIGHTSUPPORT, SIDE - REAR - RIGHT
-
221607-581 SUPPORT, SIDE - REAR - LEFTSUPPORT, SIDE - REAR - LEFT
-
238408-625 SCREW, CAPSCREW, CAP
-
248053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
258422-602 NUTNUT
-
268476-616 SCREW, MACHINESCREW, MACHINE
-
278476-631 SCREW, MACHINESCREW, MACHINE
-
280423-577 CLIP, U-NUTCLIP, U-NUT
-
290708-626 BRACKET, MOUNTING - COILBRACKET, MOUNTING - COIL
-
300902-034 COIL, IGNITION - ASSEMBLY (INC. 31)COIL, IGNITION - ASSEMBLY (INC. 31)
-
313006-367 ...CAP, SPARK PLUG...CAP, SPARK PLUG
-
328468-640 SCREW, MACHINESCREW, MACHINE
-
338468-650 SCREW, MACHINESCREW, MACHINE
-
342707-850 SUPPORT, STEERINGSUPPORT, STEERING
-
352707-686 SPAR, REAR - RIGHTSPAR, REAR - RIGHT
-
352707-687 SPAR, REAR - LEFTSPAR, REAR - LEFT
-
368422-002 NUT, LOCKNUT, LOCK
-
378476-625 SCREW, CAPSCREW, CAP
-
382623-083 CLAMP, ROUTINGCLAMP, ROUTING
-
392612-707 TAB, SPRINGTAB, SPRING
