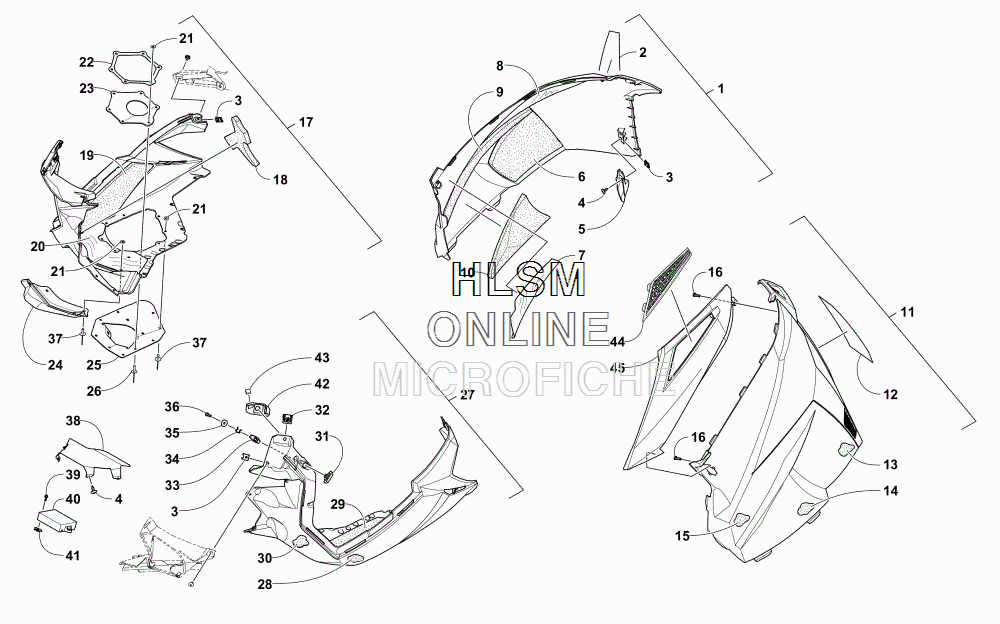

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat ZR 8000 RR ES 137 GREEN INTERNATIONAL - 2018 года выпуска
-
№АртикулНазвание
-
15718-548 PANEL, SIDE W/DECALS - RIGHT - GRAY (SEE DECALS PAGE FOR DECALS)PANEL, SIDE W/DECALS - RIGHT - GRAY (SEE DECALS PAGE FOR DECALS)
-
15718-476 PANEL, SIDE W/O DECALS - RIGHT - GRAY (INC. 2-10)PANEL, SIDE W/O DECALS - RIGHT - GRAY (INC. 2-10)
-
23621-487 ...DECAL, WARNING - ENGLISH...DECAL, WARNING - ENGLISH
-
31623-939 ...NUT, U...NUT, U
-
42623-166 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
57606-292 ...HOOK, MOUNTING - RIGHT...HOOK, MOUNTING - RIGHT
-
57606-293 ...HOOK, MOUNTING - LEFT...HOOK, MOUNTING - LEFT
-
60617-756 ...FOAM, SIDE PANEL - LOWER REAR - RIGHT...FOAM, SIDE PANEL - LOWER REAR - RIGHT
-
77606-552 ...FOIL, PROTECTIVE - REAR - RIGHT...FOIL, PROTECTIVE - REAR - RIGHT
-
87606-598 ...FOIL, PROTECTIVE - UPPER - RIGHT...FOIL, PROTECTIVE - UPPER - RIGHT
-
90617-758 ...FOAM, SIDE PANEL - MID - RIGHT...FOAM, SIDE PANEL - MID - RIGHT
-
100617-754 ...FOAM, SIDE PANEL - LOWER FRONT - RIGHT...FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
115718-549 PANEL, SIDE W/DECALS - LEFT - GRAY (SEE DECALS PAGE FOR DECALS)PANEL, SIDE W/DECALS - LEFT - GRAY (SEE DECALS PAGE FOR DECALS)
-
115718-477 PANEL, SIDE W/O DECALS - LEFT - GRAY (INC. 3-5 AND 12-15)PANEL, SIDE W/O DECALS - LEFT - GRAY (INC. 3-5 AND 12-15)
-
123621-486 ...DECAL, WARNING - FRENCH...DECAL, WARNING - FRENCH
-
130617-757 ...FOAM, SIDE PANEL - LOWER REAR - LEFT...FOAM, SIDE PANEL - LOWER REAR - LEFT
-
140617-755 ...FOAM, SIDE PANEL - LOWER FRONT - LEFT...FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
150617-759 ...FOAM, SIDE PANEL - MIDDLE - LEFT...FOAM, SIDE PANEL - MIDDLE - LEFT
-
162623-211 SCREWSCREW
-
175718-482 PLATE, SKID W/FOAM - RIGHT - BLACK (INC. TWO NO. 3, 18-21, 24, AND 31-37)PLATE, SKID W/FOAM - RIGHT - BLACK (INC. TWO NO. 3, 18-21, 24, AND 31-37)
-
180617-776 ...FOAM, SKID PLATE - FRONT - RIGHT...FOAM, SKID PLATE - FRONT - RIGHT
-
190617-762 ...FOAM, SKID PLATE - MIDDLE - RIGHT...FOAM, SKID PLATE - MIDDLE - RIGHT
-
203612-328 ...FOIL, SKID PLATE - RIGHT...FOIL, SKID PLATE - RIGHT
-
210123-802 ...WASHER...WASHER
-
223612-232 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
233612-231 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
243612-196 SHIELD, RESONATORSHIELD, RESONATOR
-
252712-041 DEFLECTOR, EXHAUST OUTLETDEFLECTOR, EXHAUST OUTLET
-
268061-710 RIVETRIVET
-
275718-483 PLATE, SKID W/FOAM - LEFT - GRAY (INC. TWO NO. 3 AND 28-36)PLATE, SKID W/FOAM - LEFT - GRAY (INC. TWO NO. 3 AND 28-36)
-
280617-765 ...FOAM, SKID PLATE - LOWER - LEFT...FOAM, SKID PLATE - LOWER - LEFT
-
290617-763 ...FOAM, SKID PLATE - MIDDLE - LEFT...FOAM, SKID PLATE - MIDDLE - LEFT
-
300617-761 ...FOAM, SKID PLATE - FRONT - LEFT...FOAM, SKID PLATE - FRONT - LEFT
-
317606-265 ...KNOB, HOLDDOWN...KNOB, HOLDDOWN
-
322623-005 ...CLIP, RETAINING...CLIP, RETAINING
-
337606-296 ...PLATE, BACKING...PLATE, BACKING
-
342623-155 ...CLIP, RETAINING...CLIP, RETAINING
-
352623-171 ...WASHER, FLAT...WASHER, FLAT
-
361623-933 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
378061-708 RIVETRIVET
-
386606-940 SHIELD, HEAT - ECMSHIELD, HEAT - ECM
-
398408-620 SCREW, CAPSCREW, CAP
-
400730-296 ECMECM
-
410423-031 NUT, SPEEDNUT, SPEED
-
427606-654 BUMPER, PROTECTORBUMPER, PROTECTOR
-
430123-987 CLIP, UCLIP, U
-
447606-272 VENT, UPPER - SIDE PANEL - RIGHTVENT, UPPER - SIDE PANEL - RIGHT
-
447606-273 VENT, UPPER - SIDE PANEL - LEFTVENT, UPPER - SIDE PANEL - LEFT
-
457606-448 PANEL, UPPER SIDE - RIGHT - GRAYPANEL, UPPER SIDE - RIGHT - GRAY
-
457606-449 PANEL, UPPER SIDE - LEFT - GRAYPANEL, UPPER SIDE - LEFT - GRAY
