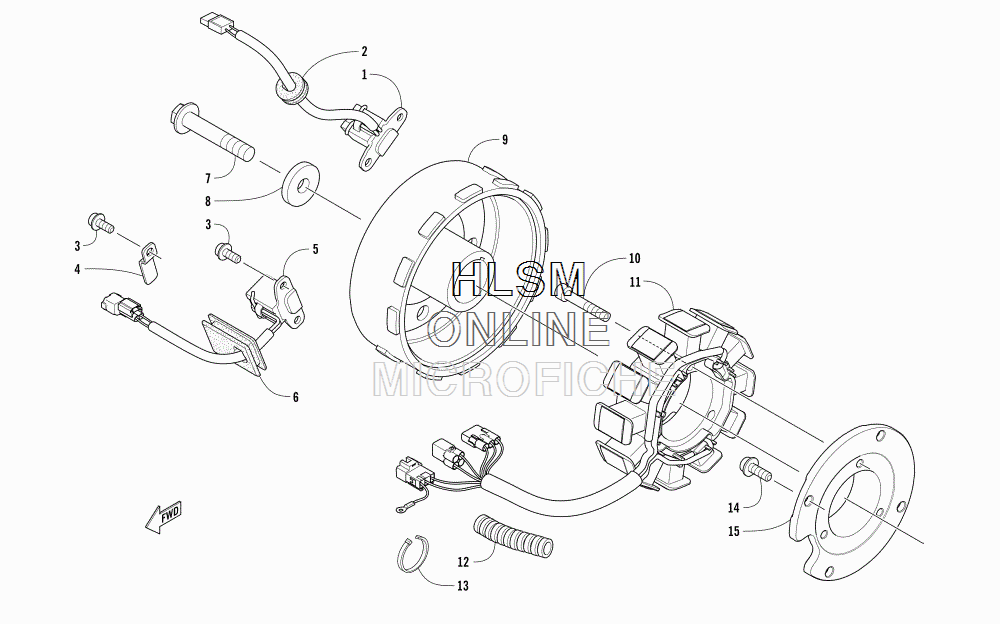

MAGNETO для Arctic Cat ZR 8000 SNO PRO ES 137 GREEN EARLY RELEASE - 2018 года выпуска
-
№АртикулНазвание
-
10902-005 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
20902-022 GROMMETGROMMET
-
30923-002 SCREW, CAPSCREW, CAP
-
40902-020 BRACKET, RETAININGBRACKET, RETAINING
-
50902-006 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
60902-021 GROMMETGROMMET
-
70923-033 SCREW, CAPSCREW, CAP
-
80923-032 WASHERWASHER
-
90902-052 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
100923-027 SCREW, CAPSCREW, CAP
-
110902-049 STATORSTATOR
-
121619-131 CONDUIT, FLEXIBLE (3/4 IN. ID - 12 IN.)CONDUIT, FLEXIBLE (3/4 IN. ID - 12 IN.)
-
130123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
140923-024 SCREW, CAPSCREW, CAP
-
150902-014 PLATE, BASE - STATORPLATE, BASE - STATOR
