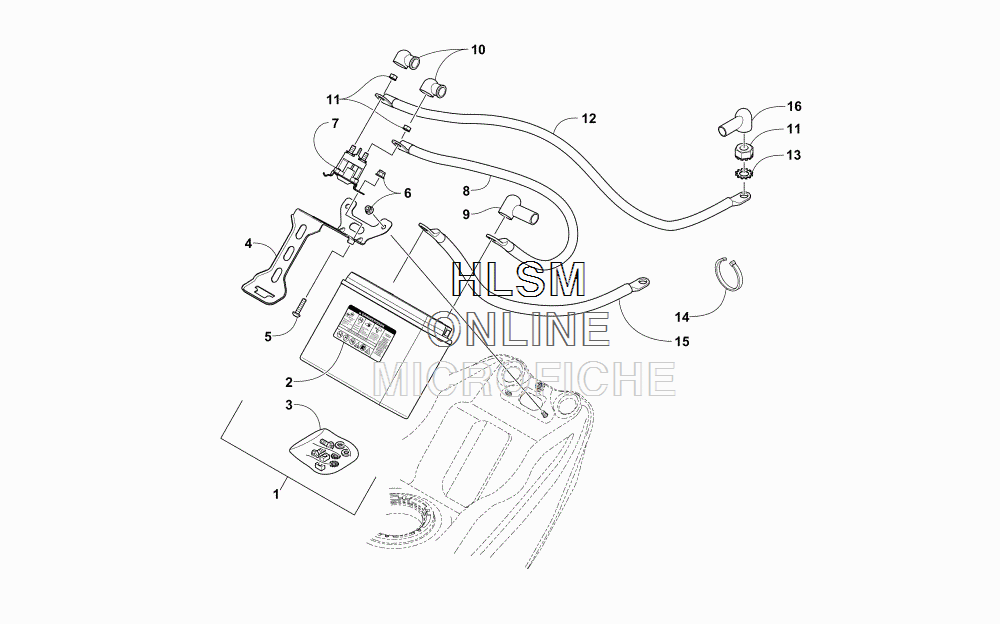

BATTERY AND TRAY ASSEMBLY для Arctic Cat ZR 9000 RR 137 GREEN - 2018 года выпуска
-
№АртикулНазвание
-
10745-406 BATTERY - W/ACID (INC. 2-3)BATTERY - W/ACID (INC. 2-3)
-
20645-430 ...DECAL, WARNING...DECAL, WARNING
-
30445-082 ...KIT, HARDWARE...KIT, HARDWARE
-
40645-722 BRACKET, HOLD-DOWN - BATTERYBRACKET, HOLD-DOWN - BATTERY
-
58468-616 SCREW, MACHINESCREW, MACHINE
-
68427-602 NUT, LOCKNUT, LOCK
-
70445-121 SOLENOID, STARTER RELAYSOLENOID, STARTER RELAY
-
80645-649 CABLE, BATTERY/SOLENOID (INC. 9-10)CABLE, BATTERY/SOLENOID (INC. 9-10)
-
90645-662 ...BOOT, TERMINAL - BATTERY...BOOT, TERMINAL - BATTERY
-
100645-697 ...BOOT, TERMINAL - BATTERY...BOOT, TERMINAL - BATTERY
-
110623-038 NUT W/WASHERNUT W/WASHER
-
120645-690 CABLE, SOLENOID/STARTER (INC. 10 AND 16)CABLE, SOLENOID/STARTER (INC. 10 AND 16)
-
138053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
140123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
150645-691 CABLE, GROUND - BATTERY/STARTERCABLE, GROUND - BATTERY/STARTER
-
160645-019 BOOT, TERMINALBOOT, TERMINAL
