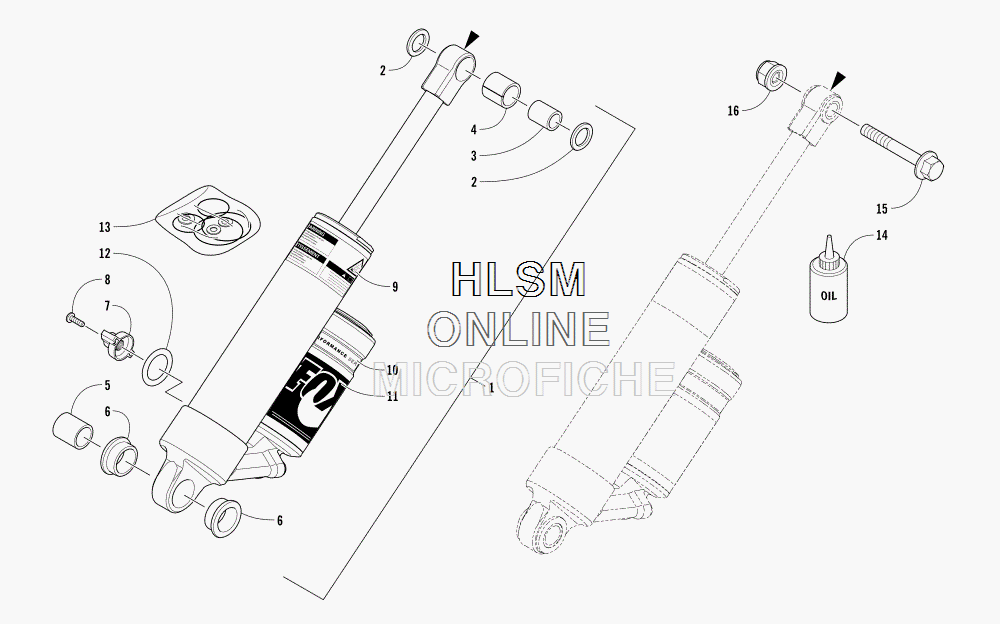

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat ZR 9000 THUNDERCAT 137 BLACK INTERNATIONAL - 2018 года выпуска
-
№АртикулНазвание
-
13704-252 COMPLETE SHOCK ABSORBER (INC. 2-13)COMPLETE SHOCK ABSORBER (INC. 2-13)
-
24604-215 ...SPACER...SPACER
-
34604-216 ...SLEEVE...SLEEVE
-
43603-399 ...BUSHING, EYELET...BUSHING, EYELET
-
52604-223 ...SLEEVE...SLEEVE
-
61604-222 ...BUSHING...BUSHING
-
73603-520 ...KNOB, DAMPING ADJUSTER - REBOUND...KNOB, DAMPING ADJUSTER - REBOUND
-
83603-377 ...SCREW, MACHINE...SCREW, MACHINE
-
93603-523 ...DECAL, BASE VALUE...DECAL, BASE VALUE
-
103603-418 ...DECAL, WARNING...DECAL, WARNING
-
113603-378 ...DECAL, RESERVOIR...DECAL, RESERVOIR
-
123603-365 ...DECAL, "PERFORMANCE SERIES"...DECAL, "PERFORMANCE SERIES"
-
134604-160 ...KIT, SEAL/REBUILD...KIT, SEAL/REBUILD
-
145639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
-
158408-045 SCREW, CAPSCREW, CAP
-
162623-202 NUT, LOCK W/WASHERNUT, LOCK W/WASHER
