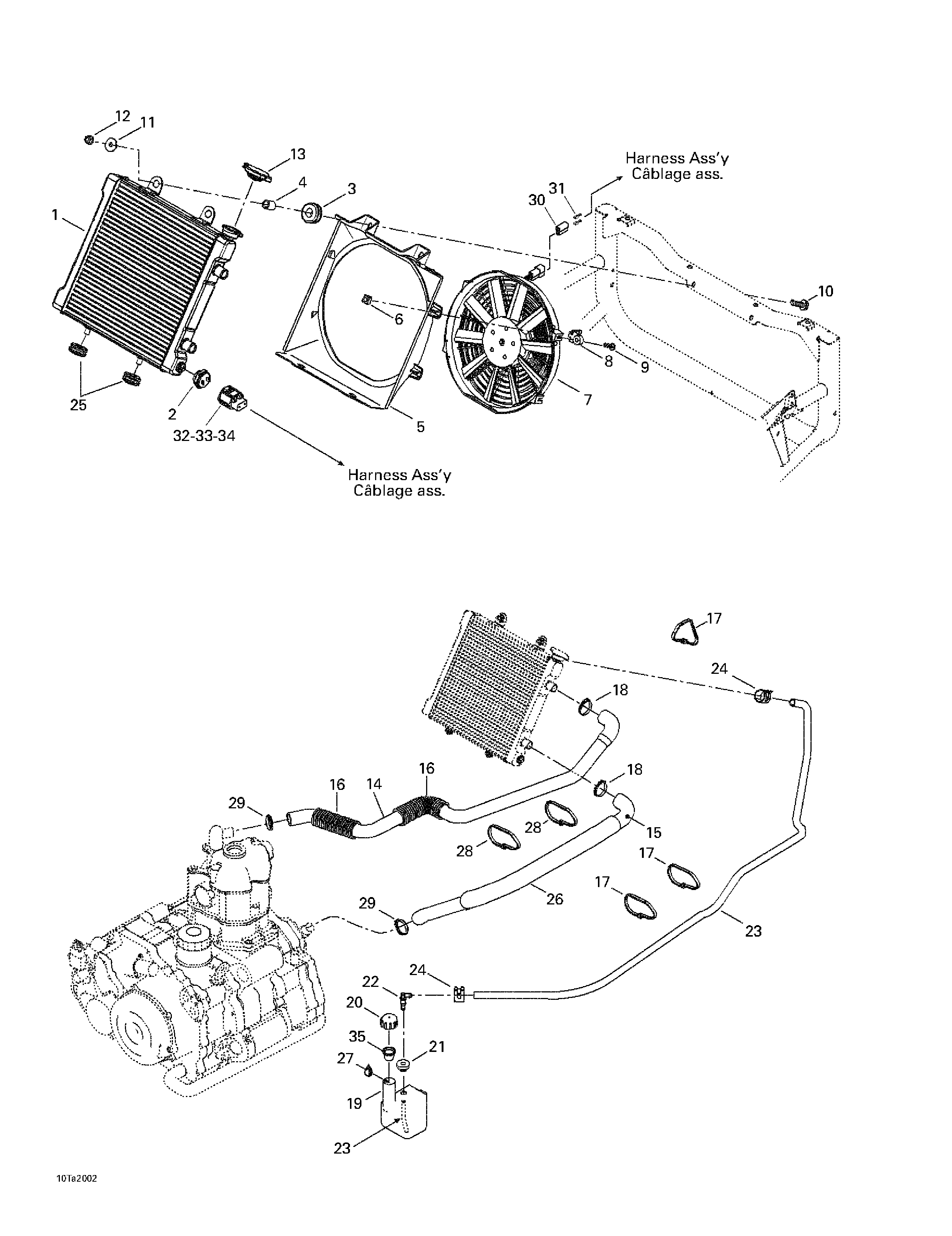

01- Cooling System для BRP Traxter, 7405/7406 - 2000
-
№АртикулНазвание
-
1709200012 RadiatorRadiator
-
2709200003 Sender,TemperatureSender,Temperature
-
3293720053 GrommetGrommet
-
4293900019 BushingBushing
-
5709200013 Outllet DeflectorOutllet Deflector
-
6232862412 Square Nut M6Square Nut M6
-
7709200004 Fan Ass'yFan Ass'y
-
8709200017 Fan SupportFan Support
-
9207562044 Screw Hex. Flanged (Scotch Grip)Screw Hex. Flanged (Scotch Grip)
-
10207663044 Screw Hex. Flanged M6 x 30Screw Hex. Flanged M6 x 30
-
11224060201 Flat WasherFlat Washer
-
12233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
13414684700 Radiator Pressure CapRadiator Pressure Cap
-
14709200006 Radiator Inlet HoseRadiator Inlet Hose
-
15709200007 Radiator Outlet HoseRadiator Outlet Hose
-
16709200031 Protective ShieldProtective Shield
-
17414115200 Tie Rap 180 mmTie Rap 180 mm
-
18293650108 Clamp NormaClamp Norma
-
19709200008 Coolant TankCoolant Tank
-
20709200009 Tank CapTank Cap
-
21570135100 GrommetGrommet
-
22414580600 Elbow Male ConnectorElbow Male Connector
-
23415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
24414554800 Spring ClampSpring Clamp
-
25293720053 GrommetGrommet
-
26709200032 Protective ShieldProtective Shield
-
27413711802 Antifreeze (16 x 1 Btle.)Antifreeze (16 x 1 Btle.)
-
28293750008 Tie Rap 350 mmTie Rap 350 mm
-
29293650109 Clamp NormaClamp Norma
-
30409204600 Female Housing 2 Circ. PackardFemale Housing 2 Circ. Packard
-
31515175252 Female Terminal AmpFemale Terminal Amp
-
32409012100 Female Terminal SumitomoFemale Terminal Sumitomo
-
33409012300 SealSeal
-
34710000078 Female Housing 2 Circ SumitomoFemale Housing 2 Circ Sumitomo
-
35709200034 Cap ProtectorCap Protector
