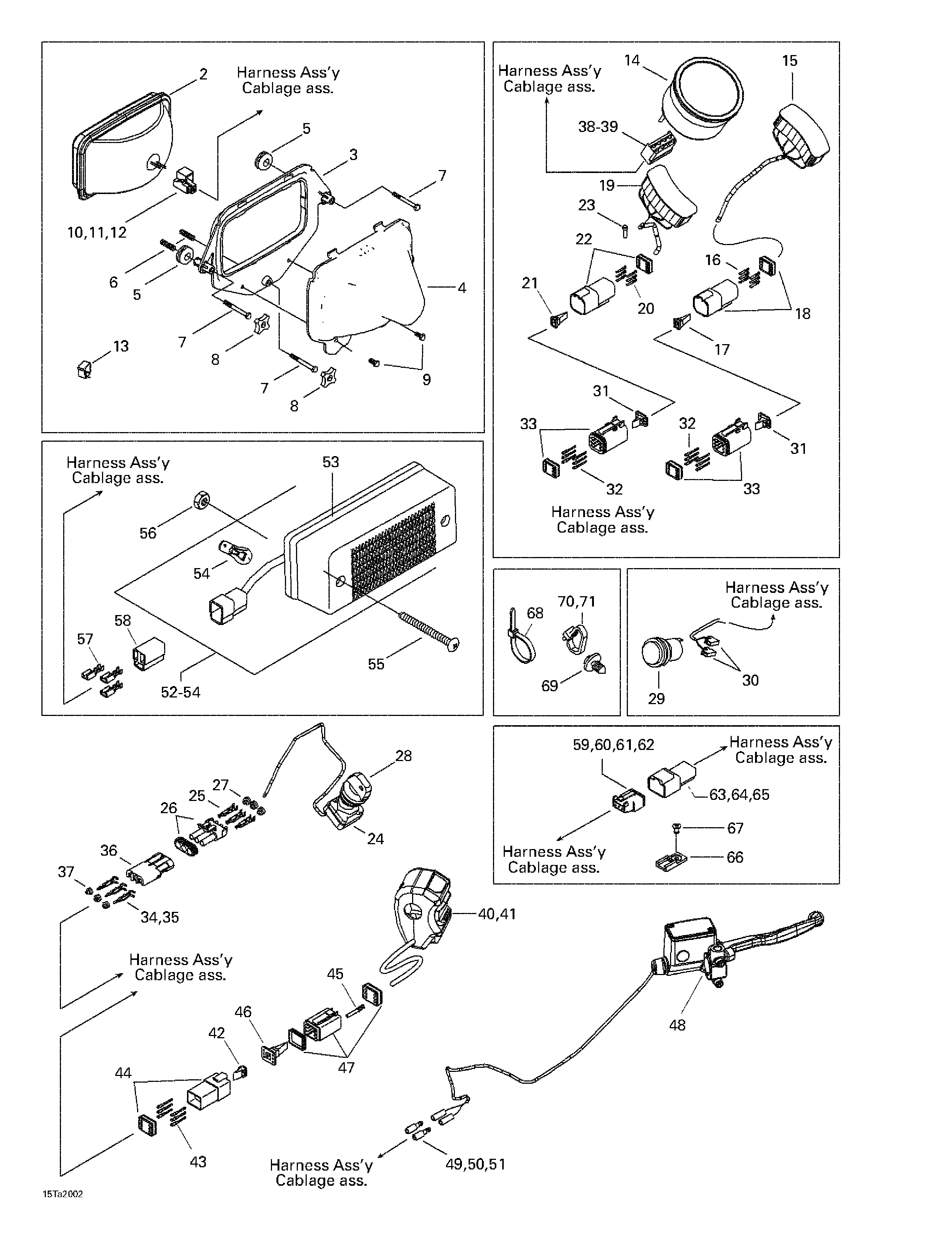

10- Main Harness And Electrical Accessories для BRP Traxter, 7407/7408 - 2000
-
№АртикулНазвание
-
1710000105 Harness Ass'y (Not Shown)Harness Ass'y (Not Shown)
-
2710000001 HeadlampHeadlamp
-
3705000022 Headlamp SupportHeadlamp Support
-
4705000023 ProtectorProtector
-
5293720053 GrommetGrommet
-
6517168600 SpringSpring
-
7250000008 Hex. Screw K40 x 40Hex. Screw K40 x 40
-
8572106600 HandleHandle
-
9250000007 Flanged Screw K40 x 10Flanged Screw K40 x 10
-
10710000027 Female TermFemale Term
-
11710000028 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
12710000026 Female Housing (2 Circ.)Female Housing (2 Circ.)
-
13414227300 ClipClip
-
14710000021 Speedometer (MPH) (US)Speedometer (MPH) (US)
-
14710000037 Speedometer (KM/H)Speedometer (KM/H)
-
15710000007 R.H. Warning LampR.H. Warning Lamp
-
16409014800 Male TermMale Term
-
17409014600 Male Lock (6 Circ) DeutschMale Lock (6 Circ) Deutsch
-
18409015200 Male Housing (6 Circ.)Male Housing (6 Circ.)
-
19710000008 LH Warning LampLH Warning Lamp
-
20409014800 Male Term. DeutschMale Term. Deutsch
-
21409014600 Male Lock (6 Circ) DeutschMale Lock (6 Circ) Deutsch
-
22409015200 Male Housing (6 circ)Male Housing (6 circ)
-
23293000052 Seal capSeal cap
-
24710000042 Ignition Switch. Includes 24 - 27.Ignition Switch. Includes 24 - 27.
-
25278000223 Female Term. (18 Gauge)Female Term. (18 Gauge)
-
26278000273 Male Housing (3 Circ)Male Housing (3 Circ)
-
27278000218 Wire Seal (16-18 Gauge) (Green)Wire Seal (16-18 Gauge) (Green)
-
28710000101 Blank Key (''B'' Type)Blank Key (''B'' Type)
-
28710000137 Blank Key (''A'' Type)Blank Key (''A'' Type)
-
29710000024 DC Outlet PlugDC Outlet Plug
-
30710000038 Female TermFemale Term
-
31409014900 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
32409015100 Female TermFemale Term
-
33409015400 Female Housing (6 Circ.)Female Housing (6 Circ.)
-
34409004300 Male Term. (16 Gauge)Male Term. (16 Gauge)
-
35278000222 Male Term. (18 Gauge)Male Term. (18 Gauge)
-
36278000281 Female Housing (3 Circ.)Female Housing (3 Circ.)
-
37278000218 Wire Seal (16-18 Gauge) (Green)Wire Seal (16-18 Gauge) (Green)
-
38710000036 Female TermFemale Term
-
39710000035 Female Housing (8 Circ.)Female Housing (8 Circ.)
-
40710000015 Multi-function Switch. Includes 40 - 41.Multi-function Switch. Includes 40 - 41.
-
41709400033 Back CoverBack Cover
-
42409014900 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
43409015100 Female TermFemale Term
-
44409015400 Female Housing (6 Circ.)Female Housing (6 Circ.)
-
45409014800 Male TermMale Term
-
46409014600 Male Lock (6 Circ) DeutschMale Lock (6 Circ) Deutsch
-
47409015200 Male Housing (6 Circ.)Male Housing (6 Circ.)
-
48705600005 Master Cylinder (See C4)Master Cylinder (See C4)
-
49278001007 Insulating SheathInsulating Sheath
-
50278000770 Insulating SheathInsulating Sheath
-
51278001009 Female TermFemale Term
-
52710000002 Tail Lamp Housing. Includes 52 - 54.Tail Lamp Housing. Includes 52 - 54.
-
53710000055 Lens (Red)Lens (Red)
-
54410504000 Bulb, Tail LampBulb, Tail Lamp
-
55208656091 Screw M5 x 60Screw M5 x 60
-
56233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
57561503100 Female TermFemale Term
-
58409204300 Female Connector Housing (Triple)Female Connector Housing (Triple)
-
59515175303 PlugPlug
-
60515175248 (Female) Secondary Lock (3 Circuits) (Deutsch)(Female) Secondary Lock (3 Circuits) (Deutsch)
-
61409015100 Female TermFemale Term
-
62515175249 Female Housing (3 Circ.)Female Housing (3 Circ.)
-
63710000043 (Male) Secondary Lock (3 Circuits) (Deutsch)(Male) Secondary Lock (3 Circuits) (Deutsch)
-
64409014800 Male TermMale Term
-
65710000044 Male Housing (3 Circ.)Male Housing (3 Circ.)
-
66270000141 ClipClip
-
67390402400 RivetRivet
-
68293750008 Tie Rap 350 mmTie Rap 350 mm
-
69293730018 DartDart
-
70293750002 Tie Rap 130 mmTie Rap 130 mm
-
71414115200 Tie Rap 180 mmTie Rap 180 mm
-
72409012600 Open Barrel (12/10 Gauge)Open Barrel (12/10 Gauge)
