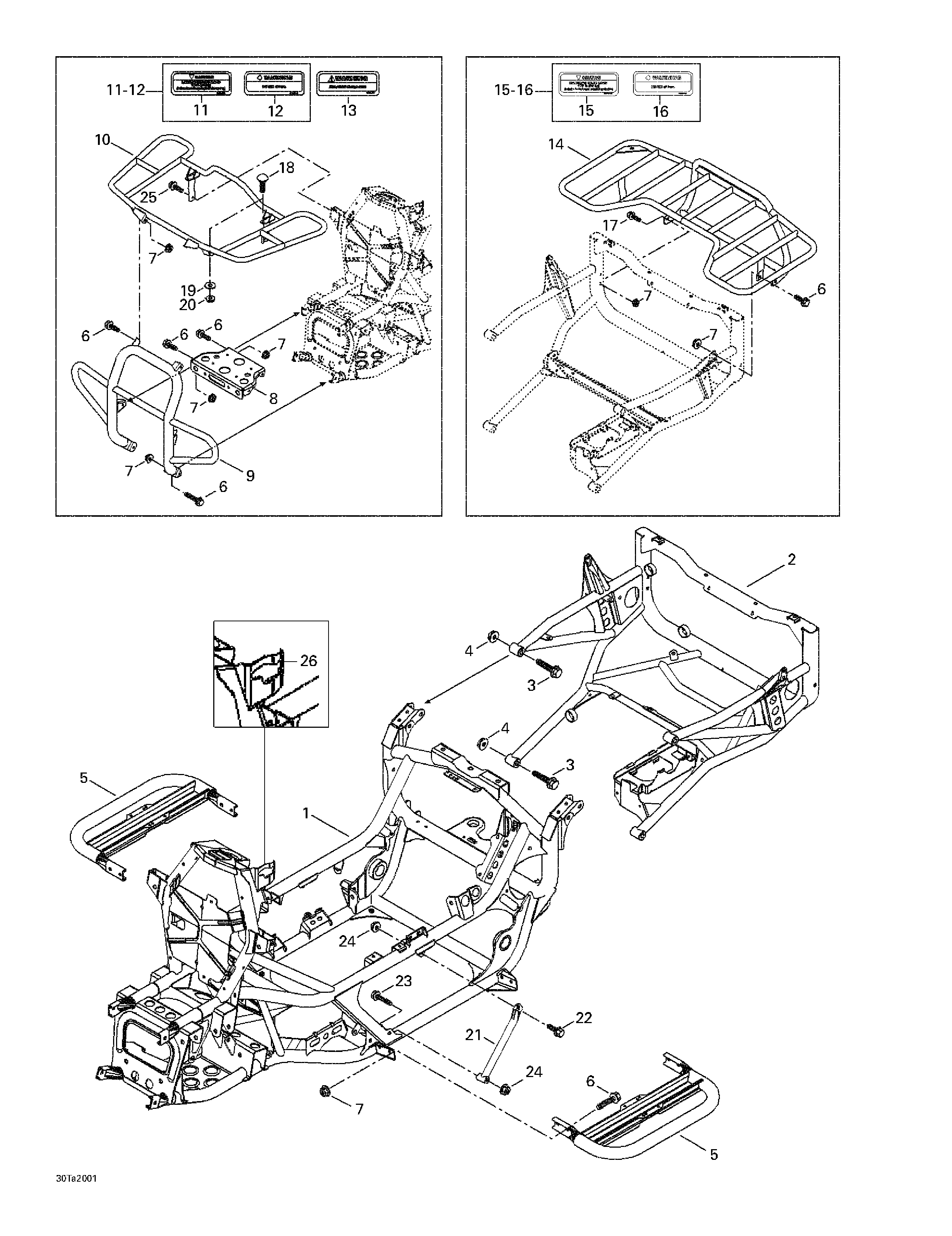

09- Frame And Luggage Racks для BRP Traxter, 7413/7414 - 2000
-
№АртикулНазвание
-
1705200001 FrameFrame
-
2705200002 Frame ExtentionFrame Extention
-
3207605544 Screw Hex. Flanged M10 x 55Screw Hex. Flanged M10 x 55
-
4233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
5705000008 FootrestFootrest
-
6207682044 Screw Hex. Flanged M8 x 20Screw Hex. Flanged M8 x 20
-
7233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
8705200068 Winch LatchWinch Latch
-
9705000001 Front BumperFront Bumper
-
10703500103 Front Luggage Rack Ass'y. Includes 10 - 13. 7400/7401. 7413/7414.Front Luggage Rack Ass'y. Includes 10 - 13. 7400/7401. 7413/7414.
-
703500053 Front Luggage Rack Ass'y. 7415/7416. 7417/7418.Front Luggage Rack Ass'y. 7415/7416. 7417/7418.
-
11704900037 Front Cargo Warning Labels. Includes 11 - 12.Front Cargo Warning Labels. Includes 11 - 12.
-
13704900038 Warning Label (Cover Attachment)Warning Label (Cover Attachment)
-
14703500020 Rear Luggage Rack Ass'y. Includes 14 - 16. 7400/7401. 7413/7414.Rear Luggage Rack Ass'y. Includes 14 - 16. 7400/7401. 7413/7414.
-
703500054 Rear Luggage Rack Ass'y. 7415/7416. 7417/7418.Rear Luggage Rack Ass'y. 7415/7416. 7417/7418.
-
15704900036 Rear Cargo Warning Labels. Includes 15 - 16.Rear Cargo Warning Labels. Includes 15 - 16.
-
17207685044 Screw Hex. Flanged M8 x 50Screw Hex. Flanged M8 x 50
-
18207762581 Carriage Bolt M6 x 25. 7400/7401. 7413/7414.Carriage Bolt M6 x 25. 7400/7401. 7413/7414.
-
250000035 Carriage Bolt M6 x 25. 7415/7416. 7417/7418.Carriage Bolt M6 x 25. 7415/7416. 7417/7418.
-
19224060201 Flat WasherFlat Washer
-
20233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
21705200143 Removable BraceRemovable Brace
-
22207682044 Screw Hex. Flanged M8 x 20Screw Hex. Flanged M8 x 20
-
23207685044 Screw Hex. Flanged M8 x 50Screw Hex. Flanged M8 x 50
-
24233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
25207582044 Screw Hex. Flanged M8 x 20 (S. Grip)Screw Hex. Flanged M8 x 20 (S. Grip)
-
26705200351 Shift PaternShift Patern
