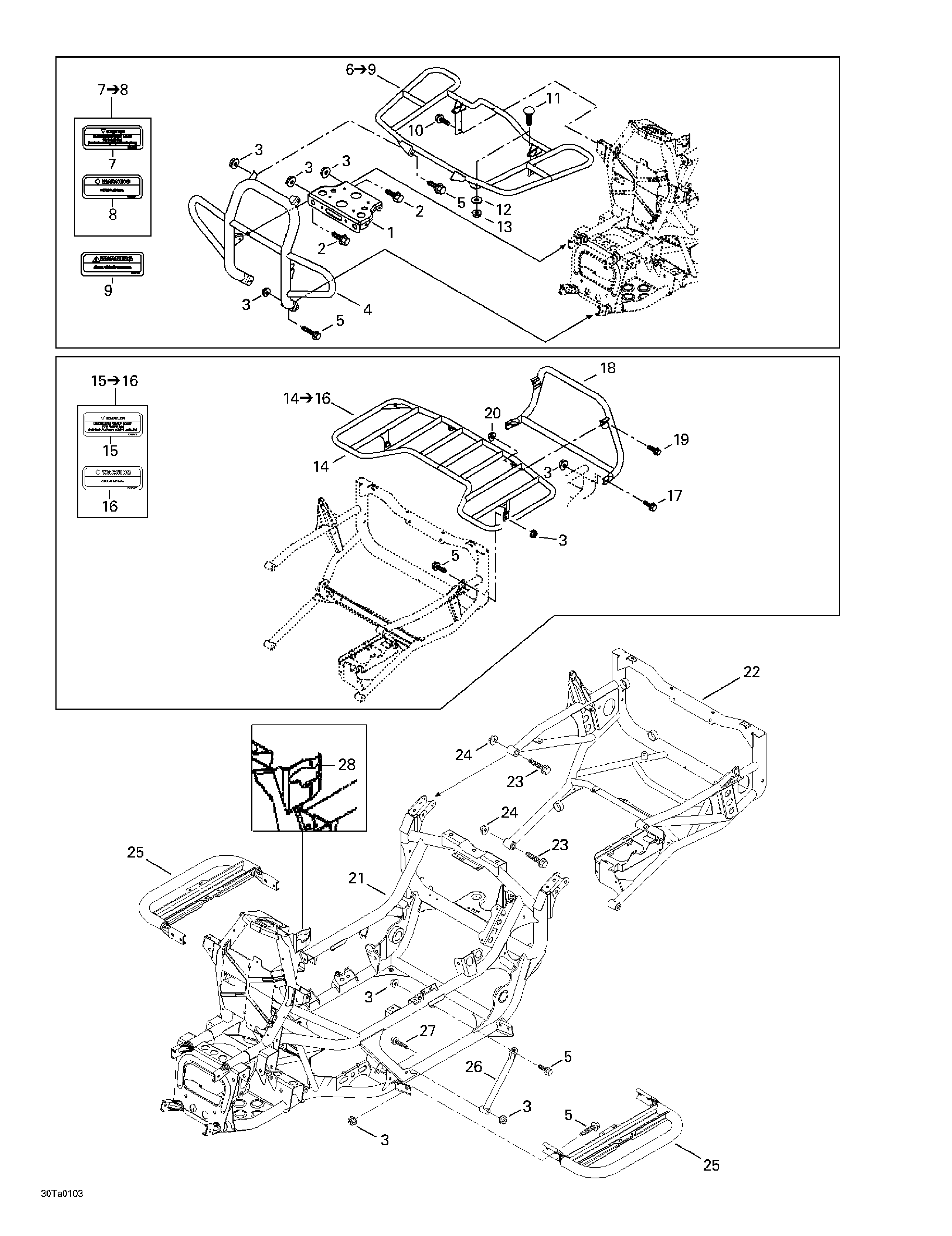

09- Frame And Luggage Racks для BRP Traxter Autoshift - 2001
-
№АртикулНазвание
-
1705200196 Winch LatchWinch Latch
-
2207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
3233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
4705000001 Front BumperFront Bumper
-
5207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
6703500053 Front Luggage Rack Ass'y. Includes 6 - 9.Front Luggage Rack Ass'y. Includes 6 - 9.
-
7704900037 Front Cargo Warning Labels. Includes 7 - 8.Front Cargo Warning Labels. Includes 7 - 8.
-
9704900038 Warning Label (Cover Attachment)Warning Label (Cover Attachment)
-
10207582044 Hex. Flanged Screw M8 x 20 (Scotch Grip)Hex. Flanged Screw M8 x 20 (Scotch Grip)
-
11250000035 Carriage Bolt M6 x 25Carriage Bolt M6 x 25
-
12224060201 Flat WasherFlat Washer
-
13233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
14703500059 Rear Luggage Rack Ass'y. Includes 14 - 16.Rear Luggage Rack Ass'y. Includes 14 - 16.
-
15704900036 Rear Cargo Warning Labels. Includes 15 - 16.Rear Cargo Warning Labels. Includes 15 - 16.
-
17207685044 Hex. Flanged Screw M8 x 50Hex. Flanged Screw M8 x 50
-
18705000210 Rear Bumper (Silver)Rear Bumper (Silver)
-
19207682046 Hex.FlangedScrewM8x20Hex.FlangedScrewM8x20
-
20233281416 ElasticFlangedNutM8ElasticFlangedNutM8
-
21705200364 Frame (Black) (7431 @ 7434)Frame (Black) (7431 @ 7434)
-
705200411 Frame (Black). (7461 / 7462 / 7469 / 7470 / 7471 / 7480)Frame (Black). (7461 / 7462 / 7469 / 7470 / 7471 / 7480)
-
22705200254 Frame ExtentionFrame Extention
-
23207605544 Hex. Flanged Screw M10 x 55Hex. Flanged Screw M10 x 55
-
24233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
25705000008 FootrestFootrest
-
26705200143 Removable BraceRemovable Brace
-
27207685044 Hex. Flanged Screw M8 x 50Hex. Flanged Screw M8 x 50
-
28705200351 Shift PaternShift Patern
