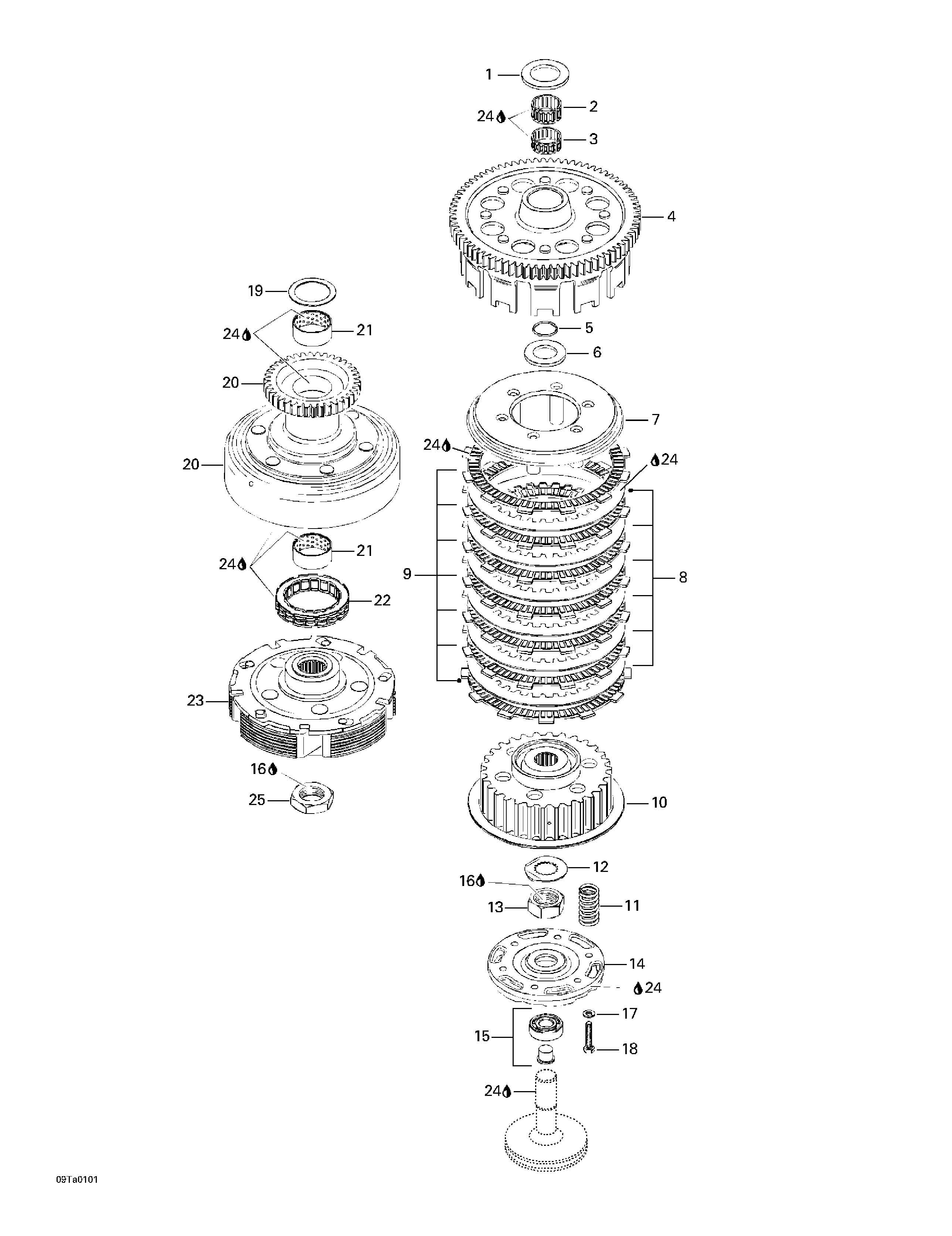

05- Clutch для BRP Traxter, 7421/7422/7427/7428 (green/vert) - 2001
-
№АртикулНазвание
-
1711227390 Thrust WasherThrust Washer
-
2711632070 Needle BearingNeedle Bearing
-
3711232655 Needle CageNeedle Cage
-
4711659203 Clutch DrumClutch Drum
-
5293300018 O-RingO-Ring
-
6420227600 Thrust WasherThrust Washer
-
7711659230 Inner PlateInner Plate
-
8711259915 Plate 1.5 mmPlate 1.5 mm
-
9711259907 Lamella 3 mmLamella 3 mm
-
10711259876 Clutch HubClutch Hub
-
11711239741 Clutch SpringClutch Spring
-
12711245320 Tab WasherTab Washer
-
13711242605 Nut Hex. M18Nut Hex. M18
-
14711259131 Retaining PlateRetaining Plate
-
15711259143 HubThrustass'ywithBallBearingHubThrustass'ywithBallBearing
-
16293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
17420945750 Lock WasherLock Washer
-
18711241770 Screw Hex. M5 x 25Screw Hex. M5 x 25
-
19711427130 Thrust WasherThrust Washer
-
20711296093 Clutch Ass'y. Includes 20 - 23.Clutch Ass'y. Includes 20 - 23.
-
20711659170 Clutch. Includes 20 - 21.Clutch. Includes 20 - 21.
-
21711233765 Clutch BushingClutch Bushing
-
22711659240 Sprag ClutchSprag Clutch
-
23711659180 Clutch HubClutch Hub
-
25711842234 Nut Hex. M22Nut Hex. M22
