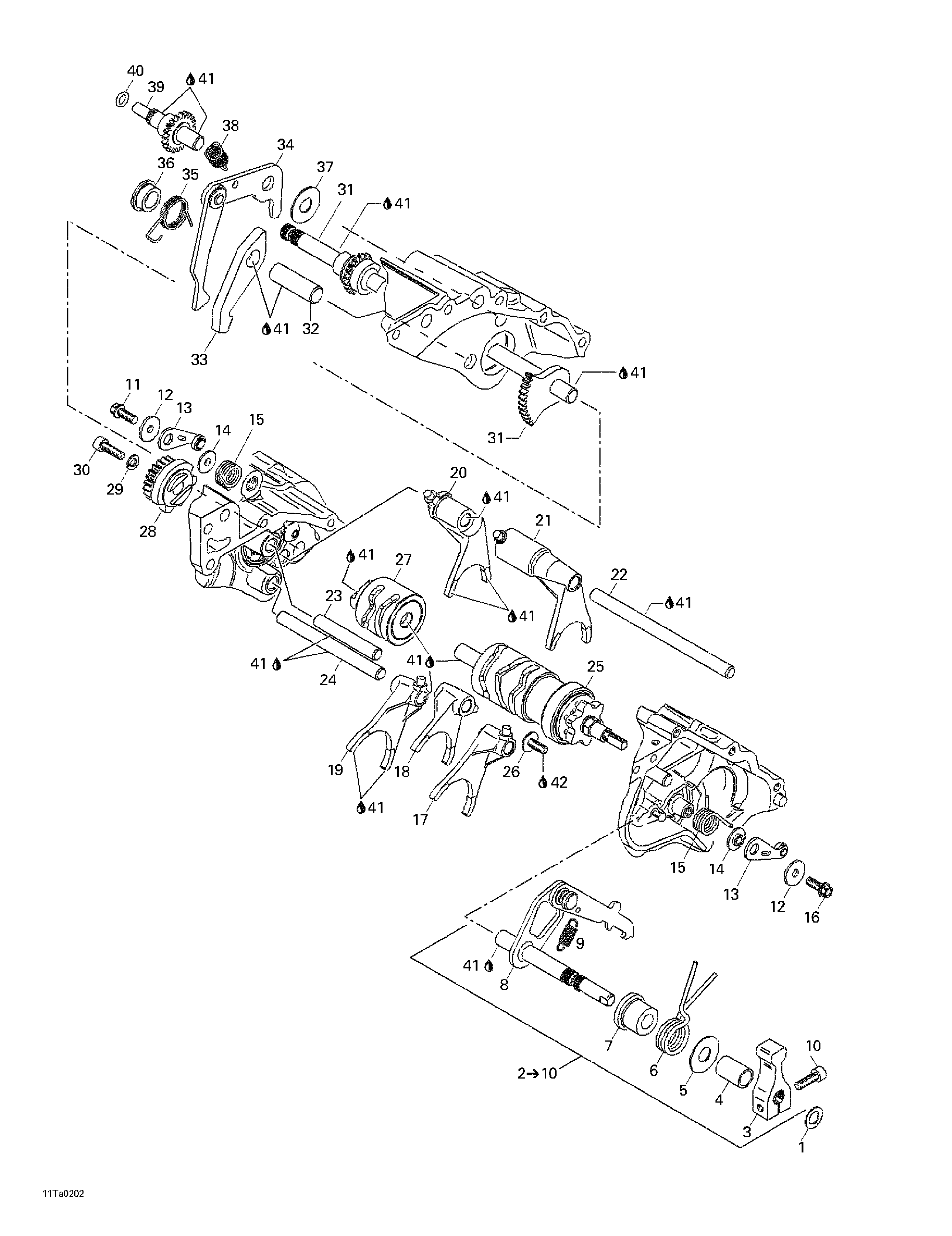

05- Gear Shift для BRP Traxter XL, 7458 - 2002
-
№АртикулНазвание
-
1711627100 Thrust WasherThrust Washer
-
2711220537 Shift Shaft Ass'y. Includes 2 - 10.Shift Shaft Ass'y. Includes 2 - 10.
-
3711257090 Gear Shift LeverGear Shift Lever
-
4711247020 Distance SleeveDistance Sleeve
-
5711227980 Thrust WasherThrust Washer
-
6711239084 Shaft SpringShaft Spring
-
7711247050 Collar SleeveCollar Sleeve
-
8711220536 Shift Shaft With Pawl Ass'yShift Shaft With Pawl Ass'y
-
9711239540 Tension SpringTension Spring
-
10205062544 Socket Screw M6 x 25Socket Screw M6 x 25
-
11711241751 Socket Screw M6 x 16Socket Screw M6 x 16
-
12420227900 WasherWasher
-
13711248326 Index Lever Ass'yIndex Lever Ass'y
-
14711227710 BushingBushing
-
15711239560 Index Lever SpringIndex Lever Spring
-
16711241751 Socket Screw M6 x 16Socket Screw M6 x 16
-
17711258400 Shift ForkShift Fork
-
18711258410 Shift ForkShift Fork
-
19711258390 Shift ForkShift Fork
-
20711258422 Shift ForkShift Fork
-
21711258432 Shift ForkShift Fork
-
22711257080 Gear Shift RodGear Shift Rod
-
23711229470 Cylindrical Pin M10 x 65Cylindrical Pin M10 x 65
-
24711229480 Cylindrical Pin M10 x 100Cylindrical Pin M10 x 100
-
25711257107 Shift Drum Ass'yShift Drum Ass'y
-
26711241531 Flat Head Scew M6 x 13Flat Head Scew M6 x 13
-
27711257111 Shift DrumShift Drum
-
28711257130 Index GearIndex Gear
-
29711445331 Lock WasherLock Washer
-
30205062544 Socket Screw M6 x 25Socket Screw M6 x 25
-
31711220585 Shift Shaft Ass'yShift Shaft Ass'y
-
32711220600 ShaftShaft
-
33711258621 Park Locking LeverPark Locking Lever
-
34711258475 Actuating LeverActuating Lever
-
35711239550 Helical SpringHelical Spring
-
36711247040 Collar SleeveCollar Sleeve
-
37711227980 Thrust WasherThrust Washer
-
38711239591 Tension SpringTension Spring
-
39711220545 Indicator ShaftIndicator Shaft
-
40711430800 O-RingO-Ring
-
42293800060 Loctite 243, 10 mlLoctite 243, 10 ml
