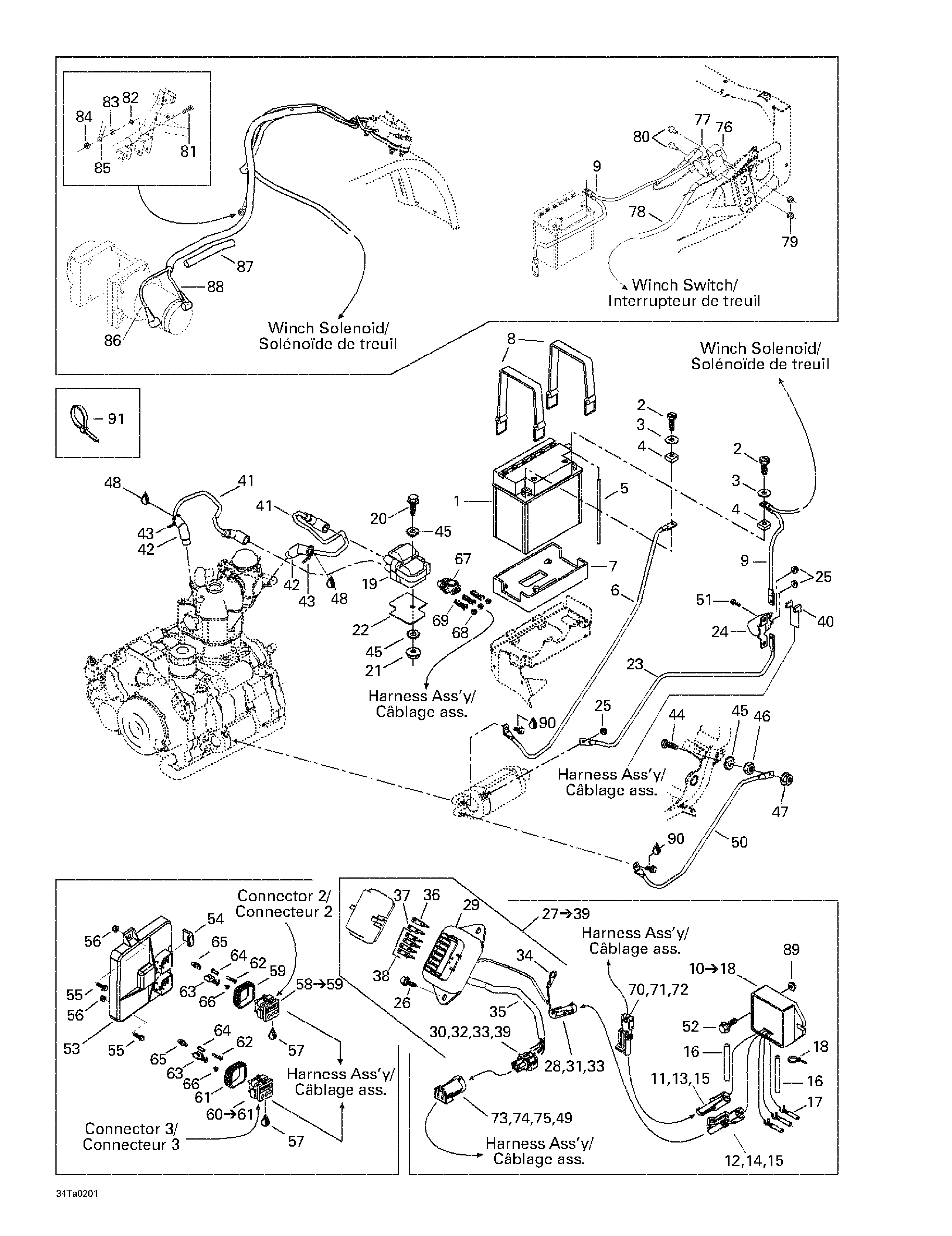

10- Battery And Electrical Accessories для BRP Traxter XT - 2002
-
№АртикулНазвание
-
1278001756 Battery. Includes 1 - 4.Battery. Includes 1 - 4.
-
2211000045 Hex. ScrewHex. Screw
-
3211200018 Flat Washer 6 mmFlat Washer 6 mm
-
4211100022 Nut M6Nut M6
-
5415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
6710000211 Ground CableGround Cable
-
7278001746 Battery Lower PadBattery Lower Pad
-
8293850021 Rubber StrapRubber Strap
-
9710000135 Positive CablePositive Cable
-
10710000100 Voltage Regulator. Includes 10 - 18.Voltage Regulator. Includes 10 - 18.
-
11278000222 Male TerminalMale Terminal
-
12278000223 Female TerminalFemale Terminal
-
13278000161 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
14278000219 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
15278000218 Wire SealWire Seal
-
16409901300 Vinyl Temperature (meter)Vinyl Temperature (meter)
-
17710000034 Female TerminalFemale Terminal
-
18293750001 Tie Rap 94 mmTie Rap 94 mm
-
19278001546 Ignition CoilIgnition Coil
-
20207665044 Hex. Flanged Screw M6 x 50Hex. Flanged Screw M6 x 50
-
21233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
22710000073 Insulator PadInsulator Pad
-
23710000136 Positive CablePositive Cable
-
24710000111 Starter RelayStarter Relay
-
25232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
26210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
27710000212 Fuse Hoder. Includes 27 - 39.Fuse Hoder. Includes 27 - 39.
-
28409004300 Male TerminalMale Terminal
-
29710000213 Fuse BoxFuse Box
-
30409007300 Female TerminalFemale Terminal
-
31278000161 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
32278000218 Wire SealWire Seal
-
33710000048 Wire SealWire Seal
-
34278001392 Open BarrelOpen Barrel
-
35515175442 Housing (Foot)Housing (Foot)
-
36410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
37278001143 Fuse (20 Amperes)Fuse (20 Amperes)
-
38278000343 Fuse (15 Amperes)Fuse (15 Amperes)
-
39710000106 Female Terminal Housing (5 Circuit)Female Terminal Housing (5 Circuit)
-
40409010300 Female TerminalFemale Terminal
-
41710000039 Spark Plug Wire. Includes 41 - 43.Spark Plug Wire. Includes 41 - 43.
-
42710000041 Spark Plug CapSpark Plug Cap
-
43293750001 Tie Rap 94 mmTie Rap 94 mm
-
44207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
45234461608 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
46232061414 Hex. Nut M6Hex. Nut M6
-
47233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
48293550004 Dielectric Grease,150 gDielectric Grease,150 g
-
49710000048 Wire SealWire Seal
-
50710000022 Ground CableGround Cable
-
51250000061 Hex. ScrewHex. Screw
-
52207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
53710000185 Electronic Module CalibratedElectronic Module Calibrated
-
54278001166 Module ProtectorModule Protector
-
55207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
56233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
57293550015 Deoxit Lubricant, SprayDeoxit Lubricant, Spray
-
58278001062 Female Terminal Housing. Includes 58 - 59. (26 Circuits)Female Terminal Housing. Includes 58 - 59. (26 Circuits)
-
59278001307 Wire SealWire Seal
-
60278001062 Female Terminal Housing. Includes 60 - 61. (26 Circuits)Female Terminal Housing. Includes 60 - 61. (26 Circuits)
-
61278001307 Wire SealWire Seal
-
62278000995 Female TerminalFemale Terminal
-
63278000994 Female TerminalFemale Terminal
-
64293000070 PlugPlug
-
65293000070 Sealing CapSealing Cap
-
66278000996 Wire SealWire Seal
-
67278000997 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
68278000999 Wire SealWire Seal
-
69278000998 Female TerminalFemale Terminal
-
70710000048 Wire SealWire Seal
-
71409007300 Female TerminalFemale Terminal
-
72278000219 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
73710000107 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
74409004300 Male TerminalMale Terminal
-
75278000218 Wire SealWire Seal
-
76710000284 Winch SolenoidWinch Solenoid
-
77710000119 Protector CapProtector Cap
-
78710000122 Solenoid WireSolenoid Wire
-
79233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
80207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
81207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
82234461608 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
83232061414 Hex. Nut M6Hex. Nut M6
-
84233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
85710000124 Winch WireWinch Wire
-
86710000123 Winch WireWinch Wire
-
87415080000 TubingTubing
-
88710000134 Winch WireWinch Wire
-
89233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
90293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
91414115200 Tie RapTie Rap
-
293750001 Tie Rap 94 mmTie Rap 94 mm
-
293750002 Tie Rap 130 mmTie Rap 130 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
