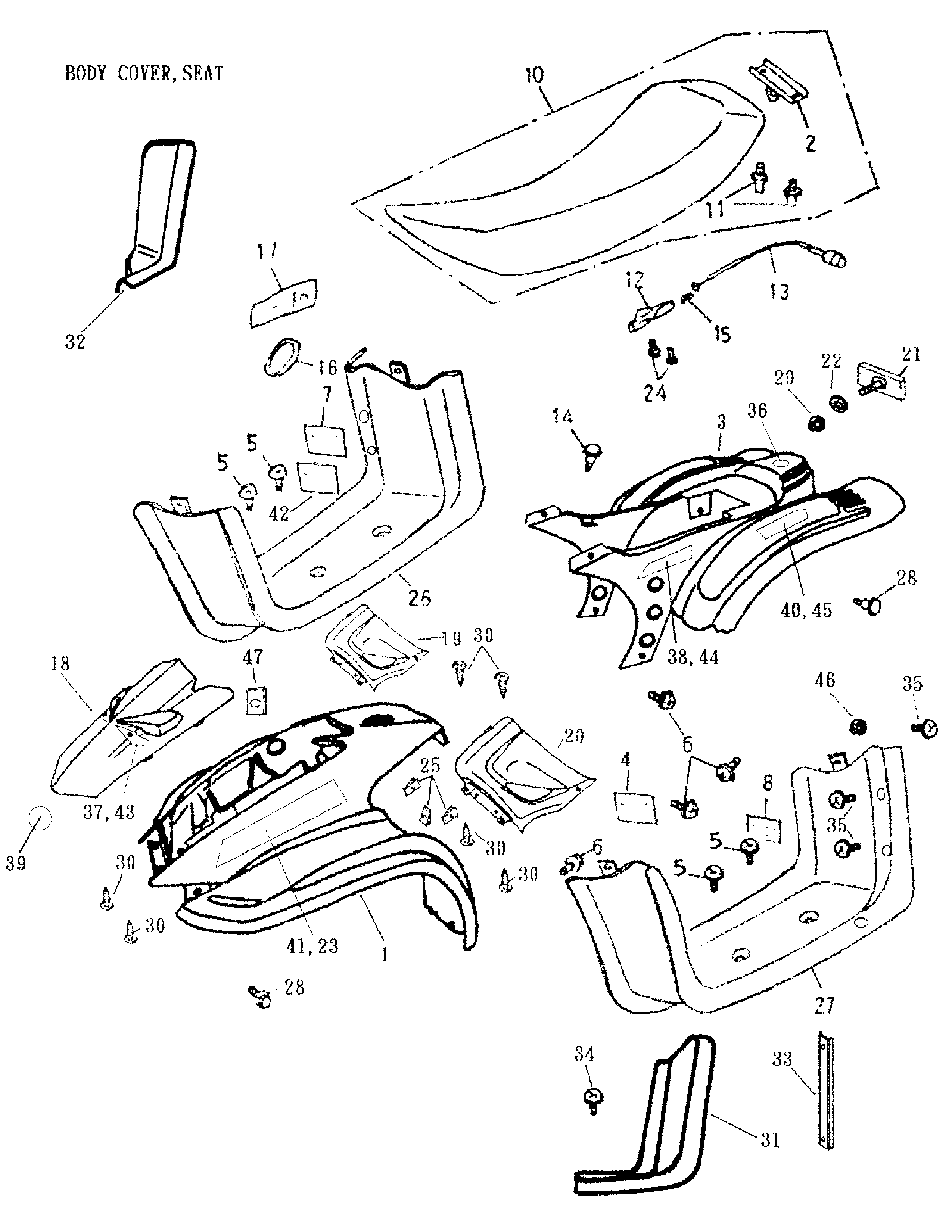

09- Body Cover, Seat 166a-15 для BRP Mini DS 50 2-strokes - 2003

№

Артикул

Название
1

A64301166000 Front Cover

Front Cover

13 430 ₽
2

A77201145000 Seat Bracket

Seat Bracket

4 130 ₽
3

A83400166000 Rear Cover

Rear Cover

10 490 ₽
4

704900302 Warning Decal (Atv General)

Warning Decal (Atv General)

140 ₽
5

A9370106015S Pan Head Phillips Bolt M6 x 15

Pan Head Phillips Bolt M6 x 15

660 ₽
6

A9380006020S Pan Head Phillips Bolt M6 x 20

Pan Head Phillips Bolt M6 x 20

990 ₽
7

704900300 Warning Label. (Under 6, English)

Warning Label. (Under 6, English)

140 ₽
8

704900005 Warning Label. (Passanger, English)

Warning Label. (Passanger, English)

140 ₽
9

A903440600A U Plate Nut (6 mm)

U Plate Nut (6 mm)

660 ₽
10

A7720014500B Seat Ass'y

Seat Ass'y

16 240 ₽
11

A77203145000 Seat Bolt

Seat Bolt

990 ₽
12

A77230145000 Seat Lock Ass'y

Seat Lock Ass'y

1 820 ₽
13

A77212145000 Seat Release Cable

Seat Release Cable

2 140 ₽
14

A901110601218C Ladder Bolt (6 x 12.5 x 3.5)

Ladder Bolt (6 x 12.5 x 3.5)

330 ₽
15

A77213145000 Reset Spring

Reset Spring

660 ₽
16

A91350145000 Rubber Strip

Rubber Strip

950 ₽
17

A50120101000 Tool Bag

Tool Bag

1 330 ₽
18

A64302166000 Front Visor

Front Visor

0 ₽
19

A83504166000 R.H. Body Cover Trim

R.H. Body Cover Trim

3 310 ₽
20

A83604166000 LH Body Cover Trim

LH Body Cover Trim

3 160 ₽
21

A33741133000 Reflector

Reflector

1 730 ₽
22

A941010615010 Plain Washer (6 x 15 x 1)

Plain Washer (6 x 15 x 1)

330 ₽
23

A87700166000 Front Cover Decal Kit

Front Cover Decal Kit

8 660 ₽
24

A960000601210G Hex. Washer Face Bolt M6 x 12

Hex. Washer Face Bolt M6 x 12

990 ₽
25

A903440500A U Plate Nut (4 mm)

U Plate Nut (4 mm)

330 ₽
26

A64312166000 R.H. Floor Panel

R.H. Floor Panel

2 320 ₽
27

A64313166000 LH Floor Panel

LH Floor Panel

2 320 ₽
28

A901110601418G Ladder Bolt

Ladder Bolt

660 ₽
29

A9035006000 Nylon Nut M6

Nylon Nut M6

990 ₽
30

A9390305012 Tapping Screw Truss Head Phillips M5 x 12

Tapping Screw Truss Head Phillips M5 x 12

330 ₽
31

A64331166000 L. H. Floor Panel Protect Cover

L. H. Floor Panel Protect Cover

1 260 ₽
32

A64332166000 R.H. Floor Panel Protect Cover

R.H. Floor Panel Protect Cover

1 330 ₽
33

A64333166000 Floor Protect Cover Bracket

Floor Protect Cover Bracket

1 150 ₽
34

A9370106037G Pan Flat Head Phillips Bolt M6 x 37

Pan Flat Head Phillips Bolt M6 x 37

660 ₽
35

A9370106015G Pan Flat Head Phillips Bolt M6 x 15

Pan Flat Head Phillips Bolt M6 x 15

660 ₽
36

516000983 Bombardier Logo

Bombardier Logo

0 ₽
37

A87700172000 Decal Kit

Decal Kit

8 260 ₽
38

A87700172000 Decal Kit

Decal Kit

8 260 ₽
39

516000983 Front Visor Sticker

Front Visor Sticker

0 ₽
40

A87700172000 Decal Kit

Decal Kit

8 260 ₽
41

A87700166000 Front Cover Decal Kit

Front Cover Decal Kit

8 660 ₽
42

704900299 Down Right Sticker. Warning (Tire Pressure, English)

Down Right Sticker. Warning (Tire Pressure, English)

140 ₽
704900318 Down Right Sticker. Warning (Tire Pressure, French)

Down Right Sticker. Warning (Tire Pressure, French)

10 ₽
43

704900292 LH Front Cover Trim

LH Front Cover Trim

0 ₽
44

A87700172000 Decal Kit

Decal Kit

8 260 ₽
45

A87700172000 Decal Kit

Decal Kit

8 260 ₽
46

233261414 Hex. Flanged Nut With Serration M6

Hex. Flanged Nut With Serration M6

490 ₽
47

A54137166000 Bracket of CDI

Bracket of CDI

610 ₽
48

A87700166000 Color Sticker Set (8 pcs)

Color Sticker Set (8 pcs)

8 660 ₽
