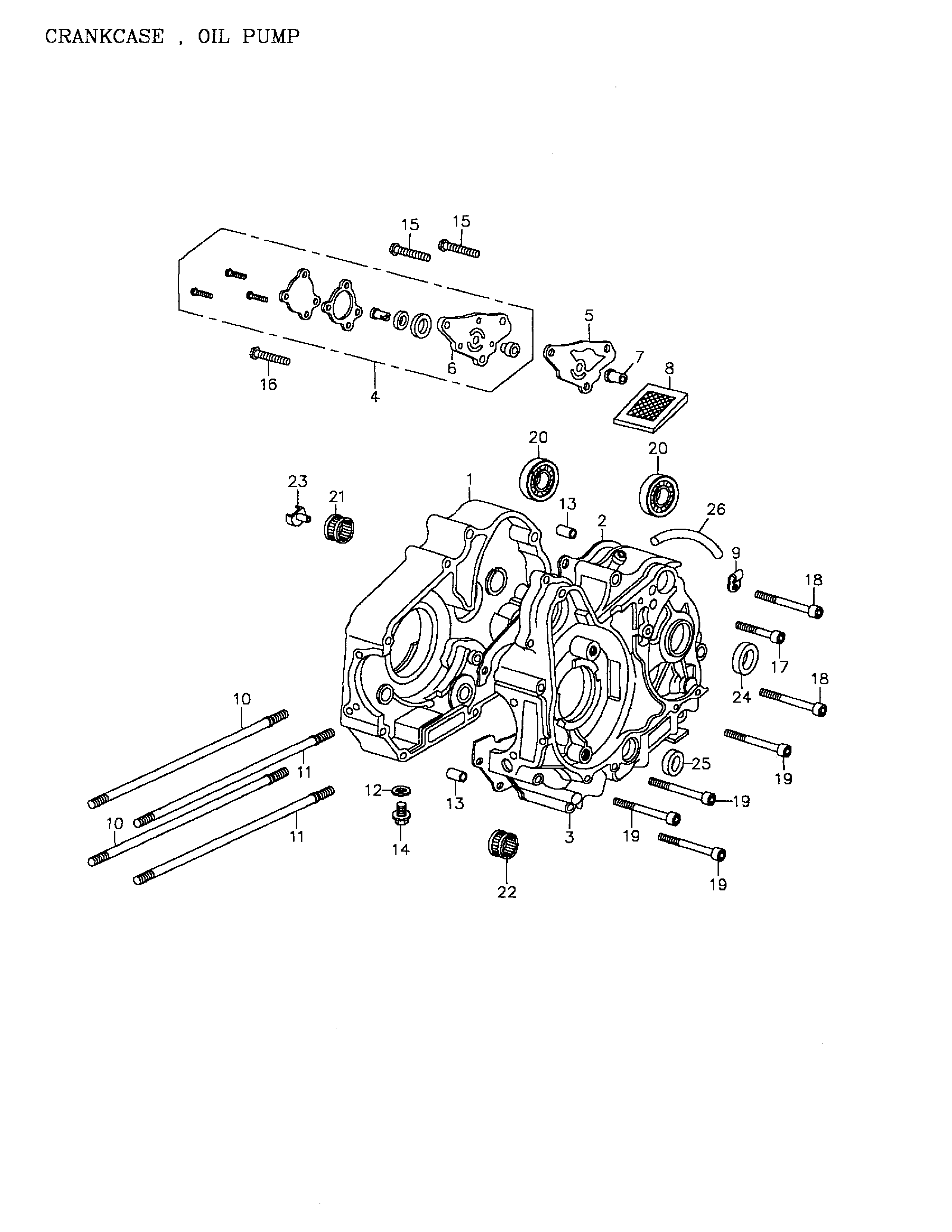

01- Crankcase, Oil Pump (172a-09) для BRP Mini DS 90 4-strokes - 2003
-
№АртикулНазвание
-
1A11101152000 Right CrankcaseRight Crankcase
-
2A11191152000 Crankcase GasketCrankcase Gasket
-
3A11201152000 LH Crank Case CompLH Crank Case Comp
-
4A15100152000 Oil Pump Ass'yOil Pump Ass'y
-
5A15119152000 Oil Pump GasketOil Pump Gasket
-
6A15111152000 Oil Pump BodyOil Pump Body
-
7A15131152000 Oil Pump PivotOil Pump Pivot
-
8A15421152000 Oil Filter ScreenOil Filter Screen
-
9A11351152000 Clamper, Carb Drain TubeClamper, Carb Drain Tube
-
10A9100106202 Stud Bolt M6 x 202Stud Bolt M6 x 202
-
11A9100106195 Stud Bolt M6 x 195Stud Bolt M6 x 195
-
12A941041221320 Plain WasherPlain Washer
-
13A9430110140 Dowel PinDowel Pin
-
14A960001201514 Hex. Washer Face Bolt M12 x 15Hex. Washer Face Bolt M12 x 15
-
15A9350006016 Pan Head Phillips Bolt M6 x 16Pan Head Phillips Bolt M6 x 16
-
16A9350006022 Pan Head Phillips Bolt M6 x 22Pan Head Phillips Bolt M6 x 22
-
17A9100006050 Hex. Socket Bolt M6 x 50Hex. Socket Bolt M6 x 50
-
18A9100006060 Hex. Socket Bolt M6 x 60Hex. Socket Bolt M6 x 60
-
19A9100006065 Hex. Socket Bolt M6 x 65Hex. Socket Bolt M6 x 65
-
20A9610062030 Radial Ball BrearingRadial Ball Brearing
-
21A96200132012 Needle BearingNeedle Bearing
-
22A96200142012 Needle BearingNeedle Bearing
-
23A11103152000 Oil GuideOil Guide
-
24A9650017295 Oil SealOil Seal
-
25A96500112410 Oil SealOil Seal
-
26A15761152000 Breather HoseBreather Hose
