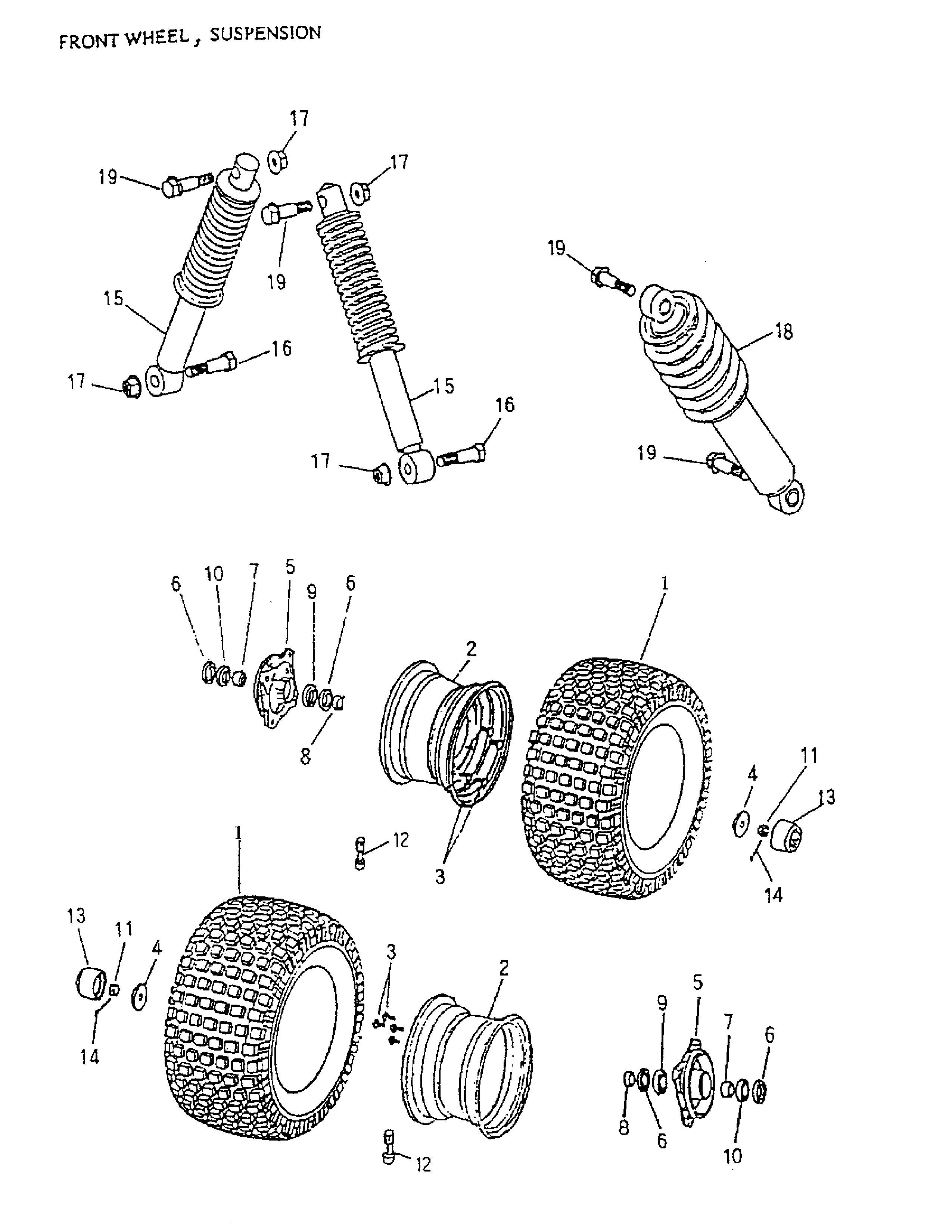

07- Front Wheel, Suspension 166a-17 для BRP Quest 50 2-strokes - 2003

№

Артикул

Название
1

A42711145000 Tire (16/8-7)

Tire (16/8-7)

9 690 ₽
2

A42701145001 Rim Ass'y. DS 50 2-Stroke.

Rim Ass'y. DS 50 2-Stroke.

6 270 ₽
A42701145001DA Rim Ass'y (Grey). Quest 50 2-STroke.

Rim Ass'y (Grey). Quest 50 2-STroke.

13 100 ₽
3

A960001002014 Hex. Washer Face Bolt (10 x 20)

Hex. Washer Face Bolt (10 x 20)

990 ₽
4

A941011240045 Plain Washer (12 x 40 x 4.5)

Plain Washer (12 x 40 x 4.5)

660 ₽
5

A4271014500B Front Brake Drum

Front Brake Drum

0 ₽
6

A9650022357 Oil Seal (22 x 35 x 7)

Oil Seal (22 x 35 x 7)

1 150 ₽
7

A44620145000 Spacer Tube

Spacer Tube

1 150 ₽
8

A44311145000 Front Coller

Front Coller

1 660 ₽
9

A961006002Z Radial Ball Bearing (6002Z)

Radial Ball Bearing (6002Z)

1 980 ₽
10

A961006003Z Radial Ball Bearing (6003Z)

Radial Ball Bearing (6003Z)

1 820 ₽
11

A940511200017 Nut,Cross Threar (12 mm)

Nut,Cross Threar (12 mm)

990 ₽
12

A42616145000 Air Nozzle

Air Nozzle

1 820 ₽
13

A4281414500A Rubber Cover

Rubber Cover

1 330 ₽
14

A9420130320 Cotter Pin (3 x 32)

Cotter Pin (3 x 32)

660 ₽
15

A5140014500C Front Cushion. DS 50 2-Stroke.

Front Cushion. DS 50 2-Stroke.

5 810 ₽
A5140014500BK Front Cushion (Black). Quest 50 2-STroke.

Front Cushion (Black). Quest 50 2-STroke.

0 ₽
16

A920001004014G Hex Bolt M10 x 40

Hex Bolt M10 x 40

990 ₽
17

A9035010000G Nylon Nut (10 mm x 1.25)

Nylon Nut (10 mm x 1.25)

0 ₽
18

A52400166000 Rear Cushion. DS 50 2-Stroke.

Rear Cushion. DS 50 2-Stroke.

17 120 ₽
A5240014500EBK Rear Cushion (Black). Quest 50 2-STroke.

Rear Cushion (Black). Quest 50 2-STroke.

18 120 ₽
19

A960001004014G Hex. Washer Face Bolt M10 x 40

Hex. Washer Face Bolt M10 x 40

990 ₽
