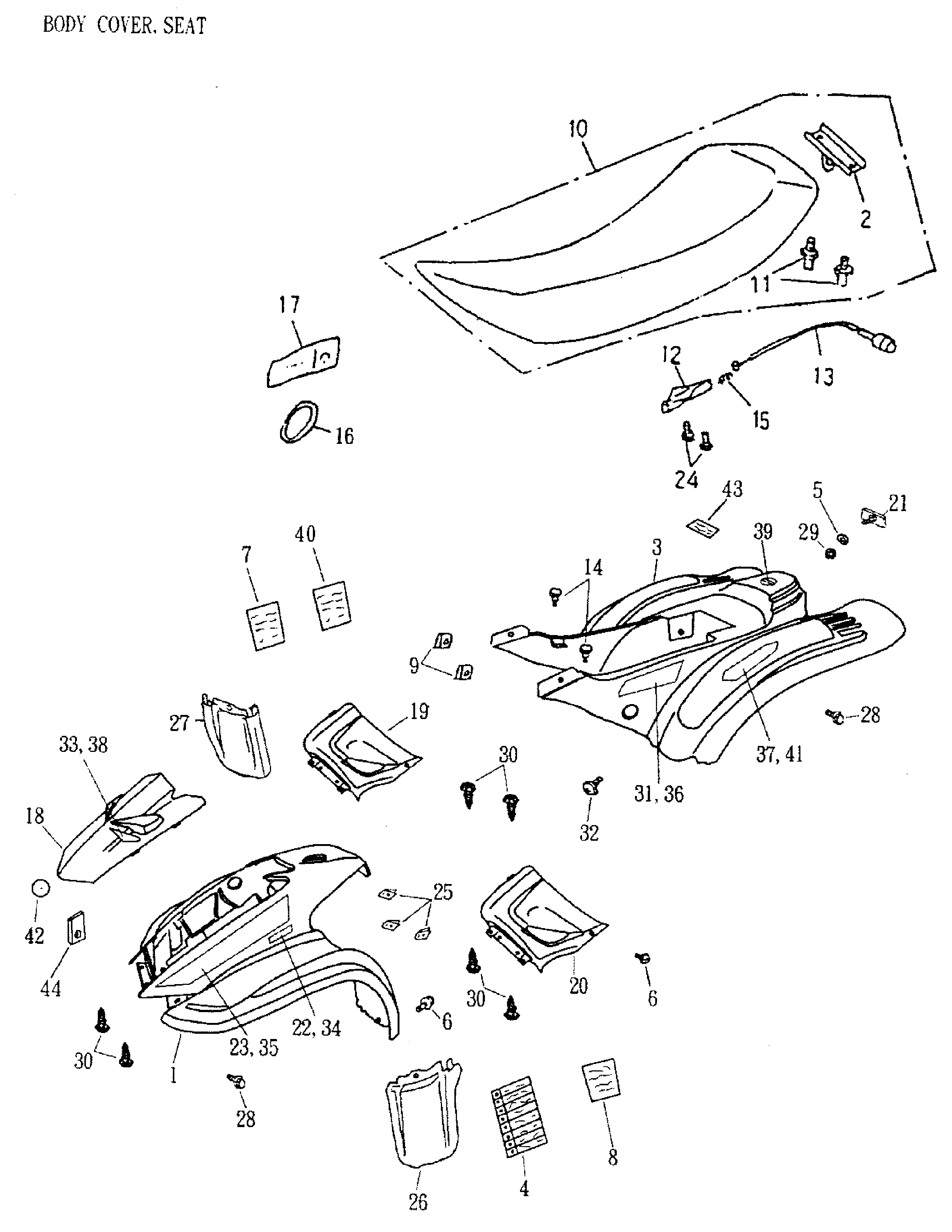

09- Body Cover, Seat 172a-18 для BRP Quest 90 4-strokes - 2003
-
№АртикулНазвание
-
1A64301166000 Front Cover. DS 90 2-Strokes.Front Cover. DS 90 2-Strokes.
-
A6430116600B Front Cover (Carbon). Quest 90 2-Strokes.Front Cover (Carbon). Quest 90 2-Strokes.
-
2A77201145000 Seat BracketSeat Bracket
-
3A83400172000 Rear Cover. DS 90 2-Strokes.Rear Cover. DS 90 2-Strokes.
-
A8340017200B Rear Cover (Carbon). Quest 90 2-Strokes.Rear Cover (Carbon). Quest 90 2-Strokes.
-
4704900302 Warning Decal. Atv General, EnglishWarning Decal. Atv General, English
-
5A941010615010 Plain Washer (6 x 15 x 1)Plain Washer (6 x 15 x 1)
-
6A9380006020S Pan Head Phillips Bolt M6 x 20Pan Head Phillips Bolt M6 x 20
-
7704900294 Warning Label. Under 12, EnglishWarning Label. Under 12, English
-
8704900035 Warning Label. Passenger, EnglishWarning Label. Passenger, English
-
9A903440600A U Plate Nut (6 mm)U Plate Nut (6 mm)
-
10A7720014500B Seat Ass'y. DS 90 2-Strokes.Seat Ass'y. DS 90 2-Strokes.
-
A7720014500BDA Seat Ass'y (Grey). Quest 90 2-Strokes.Seat Ass'y (Grey). Quest 90 2-Strokes.
-
11A77203145000 Seat BoltSeat Bolt
-
12A77230145000 Seat Lock Ass'ySeat Lock Ass'y
-
13A77212145000 Seat Release CableSeat Release Cable
-
14A901110601218C Ladder Bolt (6 x 14 x 2.5)Ladder Bolt (6 x 14 x 2.5)
-
15A77213145000 Reset SpringReset Spring
-
16A91350145000 Rubber StripRubber Strip
-
17A50120101000 Tool BagTool Bag
-
18A64302166000 Front VisorFront Visor
-
A64302166000GY Front Visor (Earth Grey). Quest 90 2-Strokes.Front Visor (Earth Grey). Quest 90 2-Strokes.
-
19A83504166000 R.H. Body Cover Trim. DS 90 2-Strokes.R.H. Body Cover Trim. DS 90 2-Strokes.
-
A83504166000GY R.H. Body Cover Trim (Earth Grey). Quest 90 2-Strokes.R.H. Body Cover Trim (Earth Grey). Quest 90 2-Strokes.
-
20A83604166000 LH Body Cover Trim. DS 90 2-Strokes.LH Body Cover Trim. DS 90 2-Strokes.
-
A83604166000GY LH Body Cover Trim (Earth Grey). Quest 90 2-Strokes.LH Body Cover Trim (Earth Grey). Quest 90 2-Strokes.
-
21A33741133000 ReflectorReflector
-
22A87700172000 Decal Kit. DS 90 2-Strokes.Decal Kit. DS 90 2-Strokes.
-
23A87700170000 Decal Kit. Quest 90 2-Strokes.Decal Kit. Quest 90 2-Strokes.
-
704900004 Logo Decal. Quest 90 2-Strokes.Logo Decal. Quest 90 2-Strokes.
-
24A960000601210G Hex. Washer Face Bolt M6 x 12Hex. Washer Face Bolt M6 x 12
-
25A903440500A U Plate Nut (4 mm)U Plate Nut (4 mm)
-
26A61100152000 LH Front FenderLH Front Fender
-
A61100152000GY LH Front Fender (Earth Grey)LH Front Fender (Earth Grey)
-
27A61101152000 R.H. Front Fender. DS 90 2-Strokes.R.H. Front Fender. DS 90 2-Strokes.
-
A61101152000GY R.H. Front Fender (Earth Grey). Quest 90 2-Strokes.R.H. Front Fender (Earth Grey). Quest 90 2-Strokes.
-
28A901110601418G Ladder BoltLadder Bolt
-
29A9035006000 Nylon Nut M6Nylon Nut M6
-
30A9390305012 Tapping Screw Truss Head Phillips M5 x 12Tapping Screw Truss Head Phillips M5 x 12
-
31A87700172000 Decal Kit. DS 90 2-Strokes.Decal Kit. DS 90 2-Strokes.
-
32A9380006025S Pan Head Phillips Bolt M6 x 25Pan Head Phillips Bolt M6 x 25
-
33A87700172000 Decal KitDecal Kit
-
A8770017200A Decal Kit. Quest 90 2-Strokes.Decal Kit. Quest 90 2-Strokes.
-
34A87700172000 Decal Kit. DS 90 2-Strokes.Decal Kit. DS 90 2-Strokes.
-
35A87700170000 Decal Kit. DS 90 2-Strokes.Decal Kit. DS 90 2-Strokes.
-
704900004 R.H. Logo Decal. Quest 90 2-Strokes.R.H. Logo Decal. Quest 90 2-Strokes.
-
36A87700172000 Decal Kit. DS 90 2-Strokes.Decal Kit. DS 90 2-Strokes.
-
37A87700172000 Decal Kit. DS 90 2-Strokes.Decal Kit. DS 90 2-Strokes.
-
A8770017200A Decal Kit. Quest 90 2-Strokes.Decal Kit. Quest 90 2-Strokes.
-
38A87700172000 Decal Kit. DS 90 2-Strokes.Decal Kit. DS 90 2-Strokes.
-
38A8770017200A Decal Kit. Quest 90 2-Strokes.Decal Kit. Quest 90 2-Strokes.
-
39516000983 Bombardier LogoBombardier Logo
-
40A8770017200 Decal Kit. DS 90 2-Strokes.Decal Kit. DS 90 2-Strokes.
-
A8770017200A Decal Kit. Quest 90 2-Strokes.Decal Kit. Quest 90 2-Strokes.
-
41A87700172000 Decal Kit. DS 90 2-Strokes.Decal Kit. DS 90 2-Strokes.
-
A8770017200A Decal Kit. Quest 90 2-Strokes.Decal Kit. Quest 90 2-Strokes.
-
42516000983 Bombardier Logo DecalBombardier Logo Decal
-
43A87723116000 Warning Label. Battery, EnglishWarning Label. Battery, English
-
44A54137166000 CDI BracketCDI Bracket
-
45A87700172000 Decal Kit. DS 90 2-Strokes.Decal Kit. DS 90 2-Strokes.
-
A8770017200A Decal Kit. Quest 90 2-Strokes.Decal Kit. Quest 90 2-Strokes.
