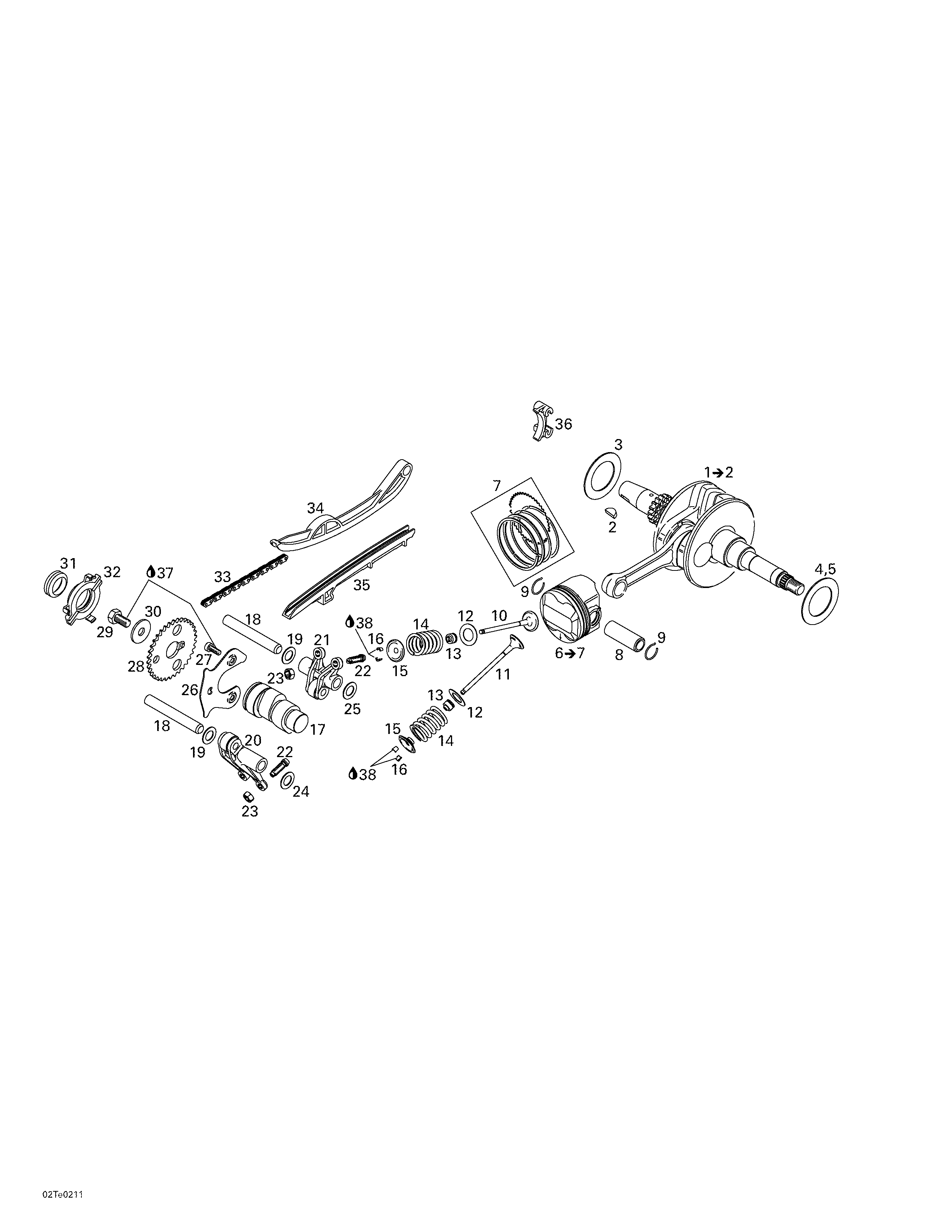

01- Crankshaft And Pistons для BRP Rally - 2003
-
№АртикулНазвание
-
1711296420 Crankshaft Ass'y. Includes 1 - 2.Crankshaft Ass'y. Includes 1 - 2.
-
2711246570 Woodroff KeyWoodroff Key
-
3711627110 Thrust WasherThrust Washer
-
4711627111 Thrust WasherThrust Washer
-
5711627112 Thrust WasherThrust Washer
-
6711296700 Piston Ass'y. Includes 6 - 7.Piston Ass'y. Includes 6 - 7.
-
7711296704 Piston Ring SetPiston Ring Set
-
8711216210 Piston PinPiston Pin
-
9711245805 Circlip PistonCirclip Piston
-
10711253880 Inlet Valve 20 mmInlet Valve 20 mm
-
11711253892 Exhaust Valve 18 mmExhaust Valve 18 mm
-
12711227451 Thrust WasherThrust Washer
-
13711650120 Seal ValveSeal Valve
-
14711239360 Valve SpringValve Spring
-
15711253902 Valve Spring RetainerValve Spring Retainer
-
16711253840 Valve CotterValve Cotter
-
17711220315 CamshaftCamshaft
-
18711229410 PinPin
-
19711627100 Thrust WasherThrust Washer
-
20711253878 Rocket Arm ExhaustRocket Arm Exhaust
-
21711253868 Rocket Arm InletRocket Arm Inlet
-
22711241335 Adjustment ScrewAdjustment Screw
-
23711242910 Hex. Nut M6Hex. Nut M6
-
24711627100 Thrust WasherThrust Washer
-
25420827590 Thrust WasherThrust Washer
-
26711251040 Retaining PlateRetaining Plate
-
27420241841 Socket Screw M5 x 12Socket Screw M5 x 12
-
28711634380 Timing Gear 34TTiming Gear 34T
-
29207181644 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
30711227937 Plain WasherPlain Washer
-
31711630125 V-RingV-Ring
-
32711660180 CoverCover
-
33711297932 Camshaft ChainCamshaft Chain
-
34711236270 Chain Tension GuideChain Tension Guide
-
35711236280 Chain GuideChain Guide
-
36711236350 Chain GuideChain Guide
-
37293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
38293800070 Loctite 767, Antiseize, 8ozLoctite 767, Antiseize, 8oz
