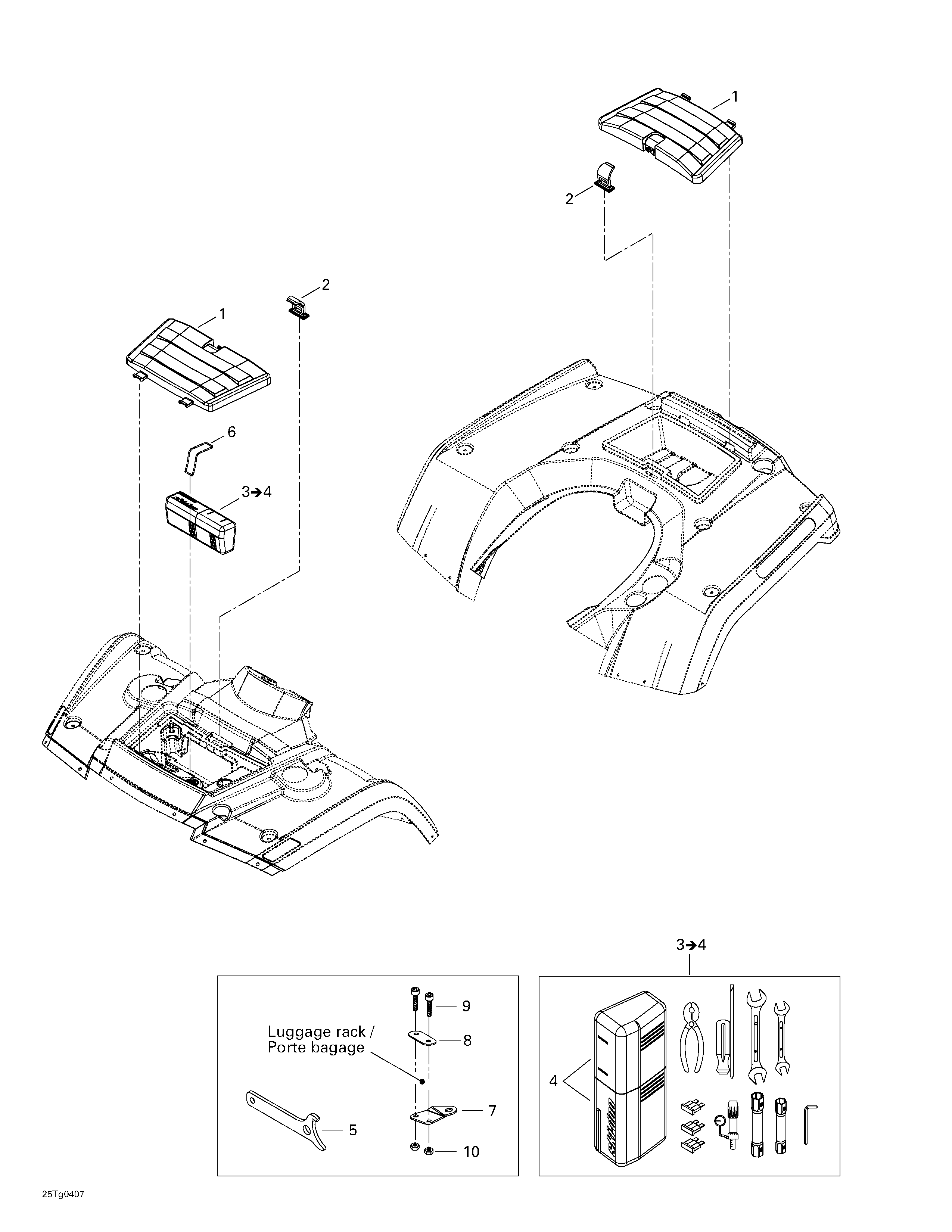

09- Front And Rear Trays для BRP Outlander 330/400 STD 4 X 4 - 2004
-
№АртикулНазвание
-
1708200017 Storage coverStorage cover
-
2708200003 Cover latchCover latch
-
3704700086 Tool kit. Includes 3 - 4.Tool kit. Includes 3 - 4.
-
4708200041 Tool boxTool box
-
5529032900 Adjustment wrenchAdjustment wrench
-
6293300101 O-ringO-ring
-
7705000729 Flag supportFlag support
-
8705000730 PlatePlate
-
9205484596 Socket head screw M8 x 45Socket head screw M8 x 45
-
10232581414 Elastic stop nut M8Elastic stop nut M8
