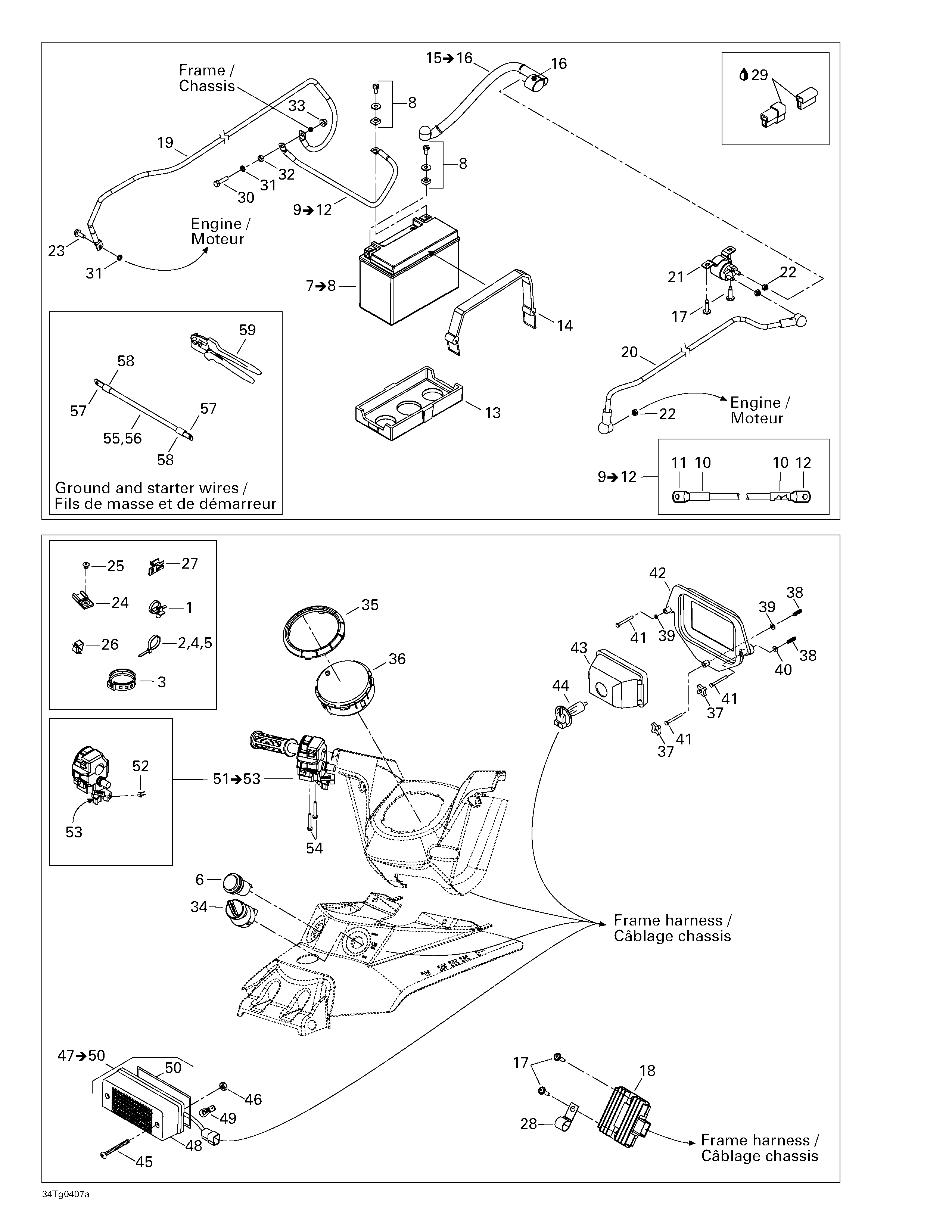

10- Battery And Electrical Accessories для BRP Outlander 400 XT 4 X 4 - 2004
-
№АртикулНазвание
-
1293750009 Tie-rap 160 mmTie-rap 160 mm
-
2293750001 Tie-rap 94 mmTie-rap 94 mm
-
3293650100 Oetiker clampOetiker clamp
-
4414115200 Tie-rapTie-rap
-
4414115200 Tie-rap. STD 2 x 4, STD 4 x 4Tie-rap. STD 2 x 4, STD 4 x 4
-
5293750008 Tie-rap 350 mmTie-rap 350 mm
-
6861507200 Outlet (12 volts)Outlet (12 volts)
-
7710000283 Battery (13 amperes). Includes 7 - 8, STD 2 x 4, STD 4 x 4Battery (13 amperes). Includes 7 - 8, STD 2 x 4, STD 4 x 4
-
8295500849 Battery fastener kit. OUTLANDER STD 2 x 4, STD 4 x 4Battery fastener kit. OUTLANDER STD 2 x 4, STD 4 x 4
-
9710000259 Battery ground cable. Includes 9 - 12Battery ground cable. Includes 9 - 12
-
10710000483 Shrink tubingShrink tubing
-
11710000507 Flat open barilFlat open baril
-
12710000509 Flat open barilFlat open baril
-
13710000279 Insulator padInsulator pad
-
14293850080 Rubber strapRubber strap
-
15710000260 Positive cable. Includes 15 - 16, STD 2 x 4, STD 4 x 4Positive cable. Includes 15 - 16, STD 2 x 4, STD 4 x 4
-
16710000393 Protector cap. STD 2 x 4, STD 4 x 4Protector cap. STD 2 x 4, STD 4 x 4
-
17250000081 Torx button head screw M6 x 25Torx button head screw M6 x 25
-
18710000908 Volt regulator. For replacement, refer to service bulletin 2005-5Volt regulator. For replacement, refer to service bulletin 2005-5
-
21515176011 Starter relayStarter relay
-
22232561600 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
23207561644 Hex flanged screw M6 x 16 (scotch grip)Hex flanged screw M6 x 16 (scotch grip)
-
24270000141 ClipClip
-
25390402400 Pop rivet 3/16''Pop rivet 3/16''
-
26414227300 ClipClip
-
27515175283 Housing supportHousing support
-
28705600311 ClampClamp
-
29293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
30207162544 Hex screw M6 x 25Hex screw M6 x 25
-
31234461608 External serrated lock washer 6 mmExternal serrated lock washer 6 mm
-
32232061414 Hex nut M6Hex nut M6
-
33233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
34710000238 Ignition switchIgnition switch
-
34715900019 Blank KeyBlank Key
-
35710000353 Trim ringTrim ring
-
36710000623 SpeedometerSpeedometer
-
37572106600 HandleHandle
-
38710000285 SpringSpring
-
39234042600 Flat washer 4 mmFlat washer 4 mm
-
40234040600 Flat washer 4 mmFlat washer 4 mm
-
41250000008 Hex screw K40 x 40Hex screw K40 x 40
-
42710000236 R.h. headlight supportR.h. headlight support
-
42710000277 L.h. headlight supportL.h. headlight support
-
43705000284 Lamp housingLamp housing
-
44710000176 BulbBulb
-
45208656091 Pan head Phillips screw M5 x 60Pan head Phillips screw M5 x 60
-
46233251414 Hex flanged elastic nut M5Hex flanged elastic nut M5
-
47710000102 Tail light housing. Includes 47 - 50Tail light housing. Includes 47 - 50
-
48710000055 Red tail light lensRed tail light lens
-
49410504100 Tail light bulbTail light bulb
-
50710000129 GasketGasket
-
51710000311 Multi-fonction handle. Includes 51 - 53Multi-fonction handle. Includes 51 - 53
-
52710000631 ClipClip
-
53710000632 Choke leverChoke lever
-
54205053588 Socket screw M5 x 35Socket screw M5 x 35
-
55278001680 Ground cable battery (no 6) (meter)Ground cable battery (no 6) (meter)
-
56278001690 Red cable battery (no 6) (meter)Red cable battery (no 6) (meter)
-
57278001682 Flat terminal (small hole)Flat terminal (small hole)
-
278001682 Terminal 45 Deg. (small hole)Terminal 45 Deg. (small hole)
-
278001684 Terminal 90 Deg. (small hole)Terminal 90 Deg. (small hole)
-
278001685 Flat terminal (big hole)Flat terminal (big hole)
-
278001686 Terminal 45 Deg. (big hole)Terminal 45 Deg. (big hole)
-
278001687 Terminal 90 Deg. (big hole)Terminal 90 Deg. (big hole)
-
278001688 Flat terminalFlat terminal
-
278001776 Terminal 30 Deg. (2 holes)Terminal 30 Deg. (2 holes)
-
58278001692 Heat shrinkHeat shrink
-
59529035730 Crimp plierCrimp plier
