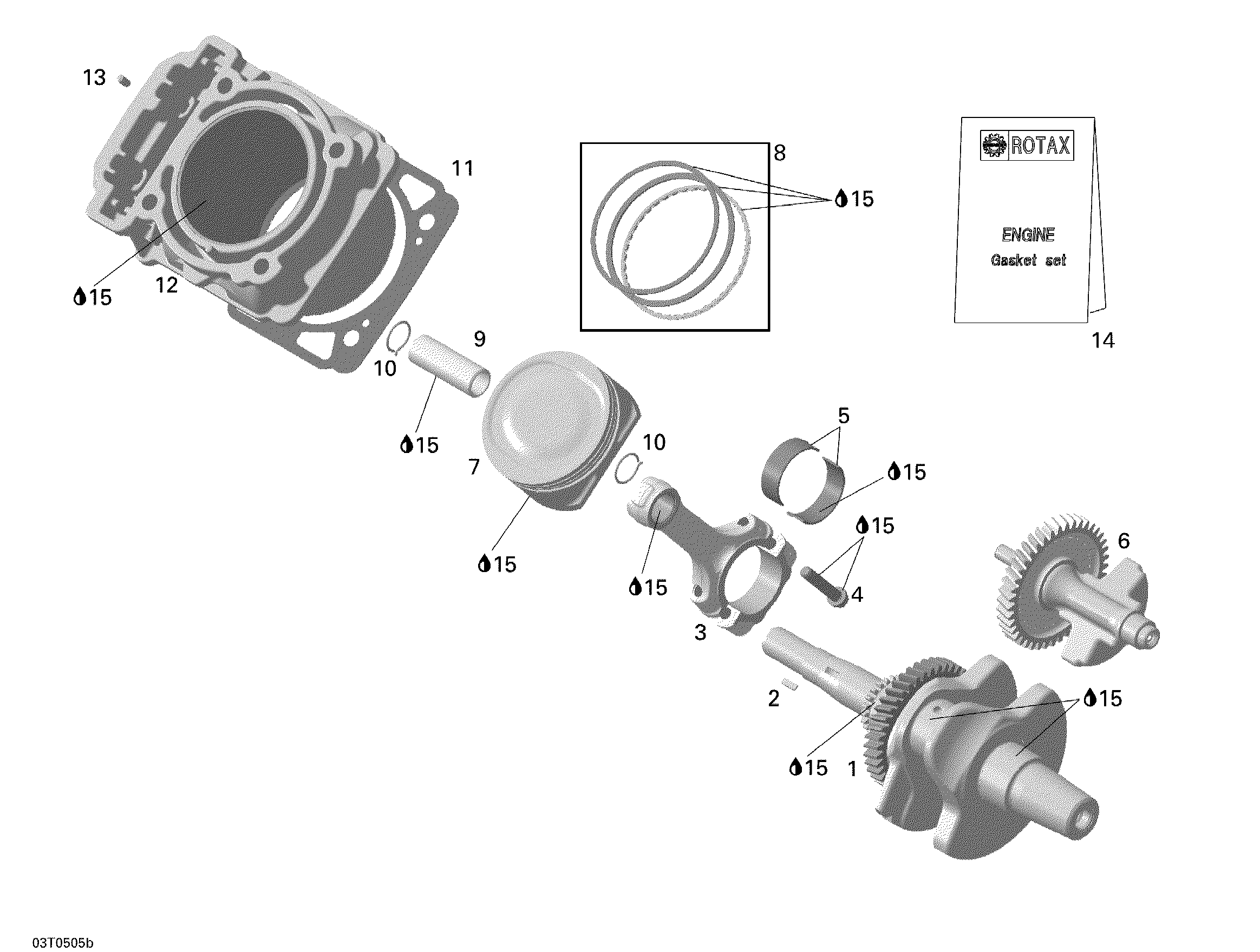

01- Crankshaft, Piston And Cylinder для BRP Outlander 330/400 STD 2 X 4 - 2005

№

Артикул

Название
1

420296672 Crankshaft Ass'Y. Includes 1 to 2

Crankshaft Ass'Y. Includes 1 to 2

0 ₽
2

420246570 Woodruff Key

Woodruff Key

1 200 ₽
3

420217425 Connecting Rod Ass'y. Includes 3 to 4

Connecting Rod Ass'y. Includes 3 to 4

0 ₽
4

420641640 Connecting Rod Screw M8 X 1

Connecting Rod Screw M8 X 1

1 430 ₽
5

420233980 Plain Bearing 40 X 43 X 15

Plain Bearing 40 X 43 X 15

15 070 ₽
6

420620035 Balance Shaft Ass'Y

Balance Shaft Ass'Y

37 950 ₽
7

420296775 Piston Ass'y 90.958 mm. 400HO / Includes 7 to 8

Piston Ass'y 90.958 mm. 400HO / Includes 7 to 8

0 ₽
7

420684110 Piston Ass'Y 82 mm. 330HO / Includes 7 to 8

Piston Ass'Y 82 mm. 330HO / Includes 7 to 8

0 ₽
8

420296774 Piston Ring Set. 400HO

Piston Ring Set. 400HO

12 470 ₽
8

420684114 Piston Ring Set. 330HO

Piston Ring Set. 330HO

0 ₽
9

420216270 Piston Pin

Piston Pin

10 260 ₽
10

420845106 Piston Circlip

Piston Circlip

2 410 ₽
11

420630210 Gasket

Gasket

4 830 ₽
12

420613586 Cylinder Assembly. 400HO / Includes 12 to 13

Cylinder Assembly. 400HO / Includes 12 to 13

0 ₽
12

420613886 Cylinder Assembly. 330HO / Includes 12 to 13

Cylinder Assembly. 330HO / Includes 12 to 13

0 ₽
13

420929650 Drive Pin Ass'y

Drive Pin Ass'y

600 ₽
14

420684125 Gasket Set. 400HO

Gasket Set. 400HO

153 650 ₽
14

420684127 Gasket Set. 330HO

Gasket Set. 330HO

37 150 ₽
15

293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 Liter

Engine Oil 4 Strokes, 5w40, 12 X 1 Liter

0 ₽
