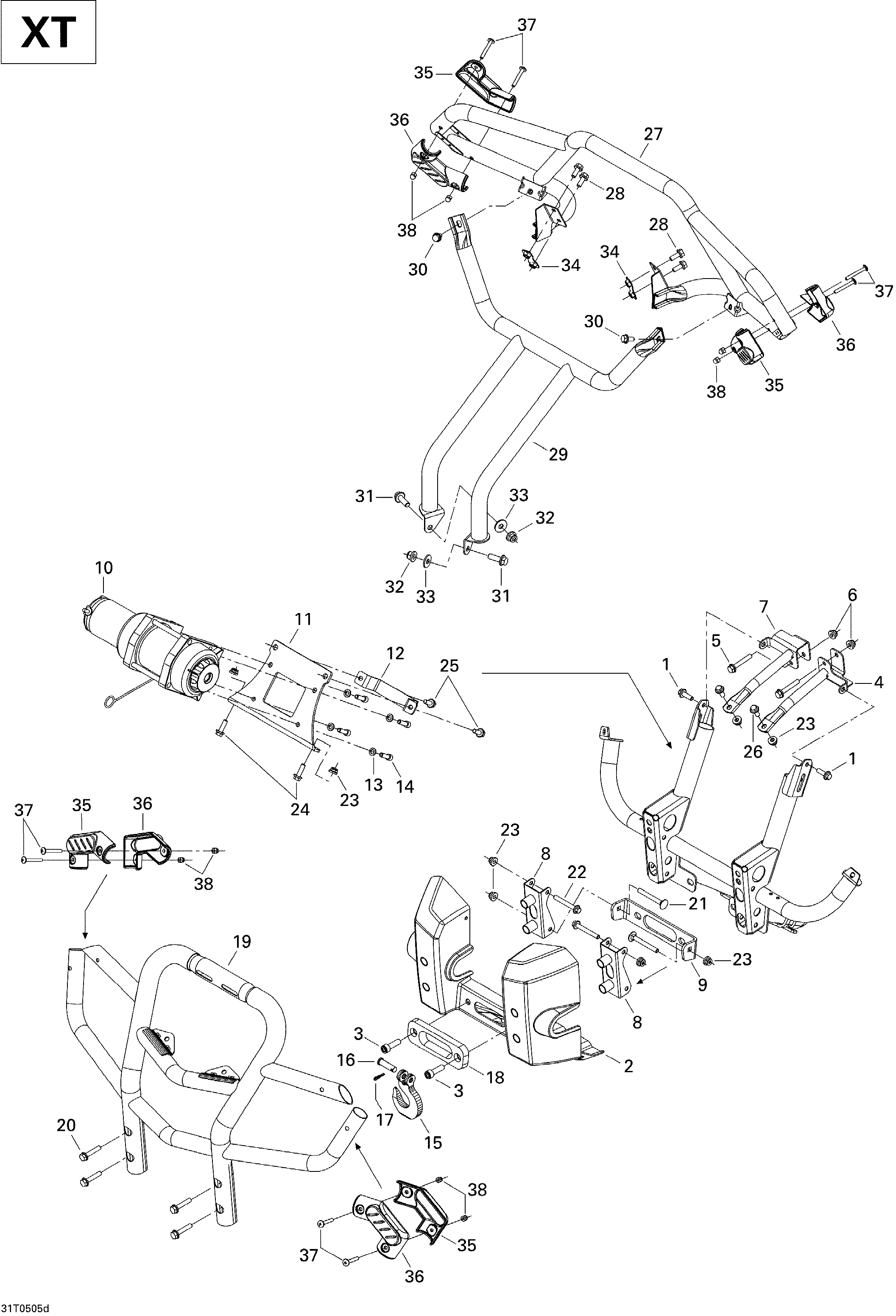

09- Body And Accessories XT для BRP Outlander 400 XT 4 X 4 - 2005
-
№АртикулНазвание
-
1207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
2705001531 Front Protection PlateFront Protection Plate
-
3205003544 Socket Screw M10 X 35Socket Screw M10 X 35
-
4705001186 LH AnchoringLH Anchoring
-
5207685044 Hex Flanged Screw M8 X 50Hex Flanged Screw M8 X 50
-
6233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
7705001190 RH AnchoringRH Anchoring
-
8705001058 Bumper AnchoringBumper Anchoring
-
9705001073 Winch BracketWinch Bracket
-
10705000839 WinchWinch
-
11705000415 Mounting PlateMounting Plate
-
12705000416 Winch BracketWinch Bracket
-
13234181401 Lock Washer 8 mmLock Washer 8 mm
-
14250000041 Socket Screw 5/16''-18 X 1''Socket Screw 5/16''-18 X 1''
-
15705000618 HookHook
-
16250400021 Clevis PinClevis Pin
-
17250400022 Cotter PinCotter Pin
-
18705000194 Cable GuideCable Guide
-
19705001077 Front BumperFront Bumper
-
20207584044 Hex Flanged Screw M8 X 40, Scotch GripHex Flanged Screw M8 X 40, Scotch Grip
-
21207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
22207686044 Hex Flanged Screw M8 X 60Hex Flanged Screw M8 X 60
-
23233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
24207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
25207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
26207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
27705001079 Rear BumperRear Bumper
-
28207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
29705001081 Rear Lower BumperRear Lower Bumper
-
30207581646 Flanged Screw M8 X 16, Scotch GripFlanged Screw M8 X 16, Scotch Grip
-
31207603044 Hex Flanged Screw M10 X 30Hex Flanged Screw M10 X 30
-
32233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
33503032900 WasherWasher
-
34705001075 Attachment PlateAttachment Plate
-
35705001042 Male CapMale Cap
-
36705001043 Female CapFemale Cap
-
37250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
38232361493 Cap Nut M6Cap Nut M6
