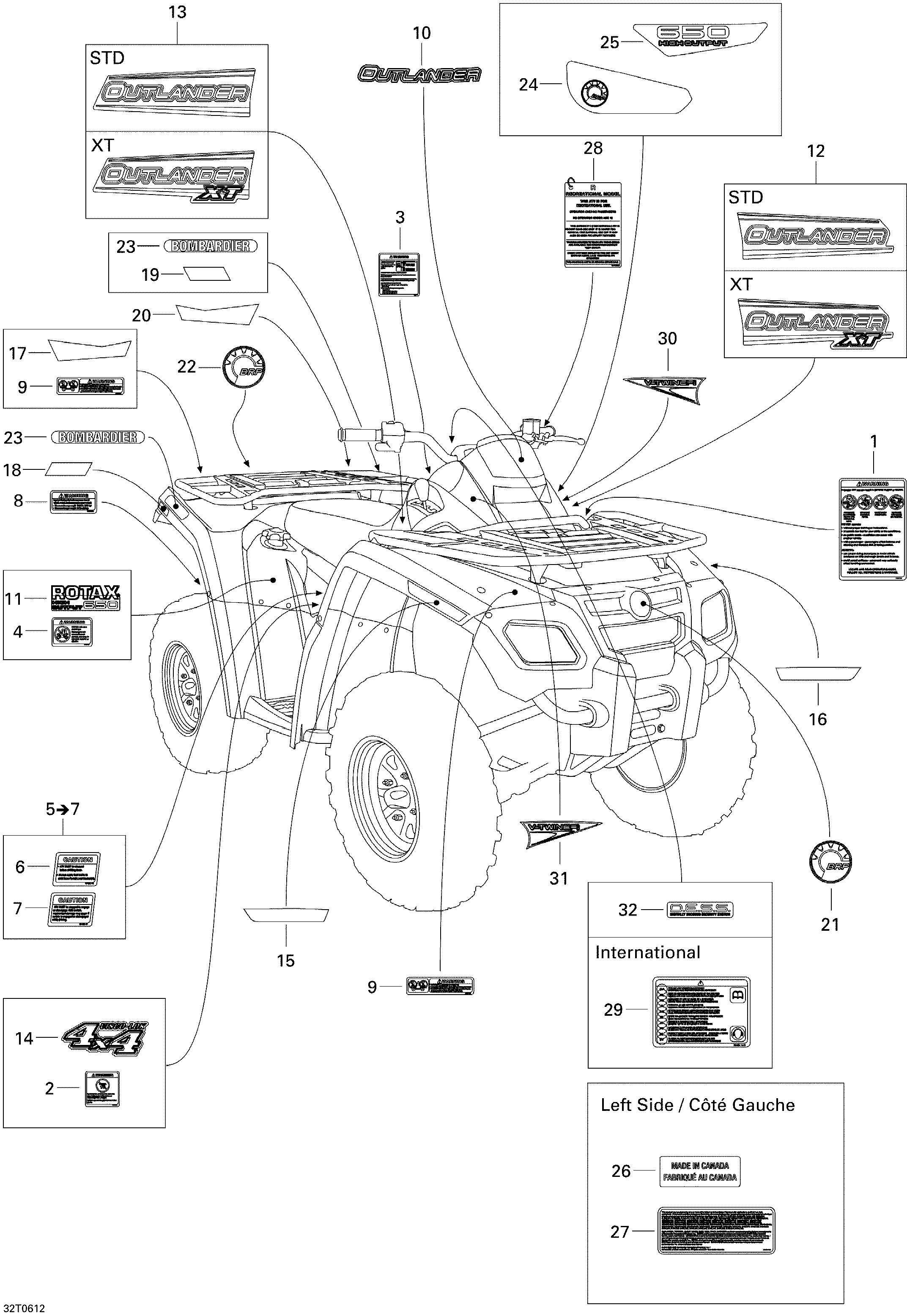

09- Decals XT для BRP Outlander 650 XT 4 X 4 - 2006
-
№АртикулНазвание
-
1704900112 Warning Label, Death And InjuriesWarning Label, Death And Injuries
-
2704900011 Warning Label, Under 16 Years OldWarning Label, Under 16 Years Old
-
3704901118 Warning Label, Tire PressureWarning Label, Tire Pressure
-
4704900005 Warning Label, PassengerWarning Label, Passenger
-
5704900434 Caution Label, Lever And 4wd Switch. Includes 5 to 7Caution Label, Lever And 4wd Switch. Includes 5 to 7
-
6704900470 Caution Label, Shifting LeverCaution Label, Shifting Lever
-
7704900471 Caution Label, 4wd SwitchCaution Label, 4wd Switch
-
8704901123 Warning Decal, TrailerWarning Decal, Trailer
-
9704901089 Warning Label, LoadWarning Label, Load
-
10704900997 Console DecalConsole Decal
-
11704901201 Rotax Decal 650Rotax Decal 650
-
12704901038 LH Decal. XT, Viper RedLH Decal. XT, Viper Red
-
12704901039 LH Decal. XT, YellowLH Decal. XT, Yellow
-
13704901044 RH Decal. XT, Viper RedRH Decal. XT, Viper Red
-
13704901045 RH Decal. XT, YellowRH Decal. XT, Yellow
-
14704900426 Decal 4x4. Viper RedDecal 4x4. Viper Red
-
14704900603 Decal 4x4. YellowDecal 4x4. Yellow
-
15704900989 RH Front ReflectorRH Front Reflector
-
16704900988 LH Front ReflectorLH Front Reflector
-
17704900990 RH Rear ReflectorRH Rear Reflector
-
18704900992 RH Lateral ReflectorRH Lateral Reflector
-
19704900993 LH Lateral ReflectorLH Lateral Reflector
-
20704900991 LH Rear ReflectorLH Rear Reflector
-
21219902469 Brp Logo 68 mmBrp Logo 68 mm
-
22219902672 Logo Brp 68 mmLogo Brp 68 mm
-
23704900076 Bombardier LabelBombardier Label
-
24704900963 Cvt DecalCvt Decal
-
25704901202 Cvt 650 DecalCvt 650 Decal
-
26704900267 Canada DecalCanada Decal
-
27704901098 Serial LabelSerial Label
-
28704900930 Warning Label, UtilityWarning Label, Utility
-
29704901177 International Decal, Multilingual. InternationalInternational Decal, Multilingual. International
-
30704901115 LH Console DecalLH Console Decal
-
31704901116 RH Console DecalRH Console Decal
-
32704901117 DESS DecalDESS Decal
