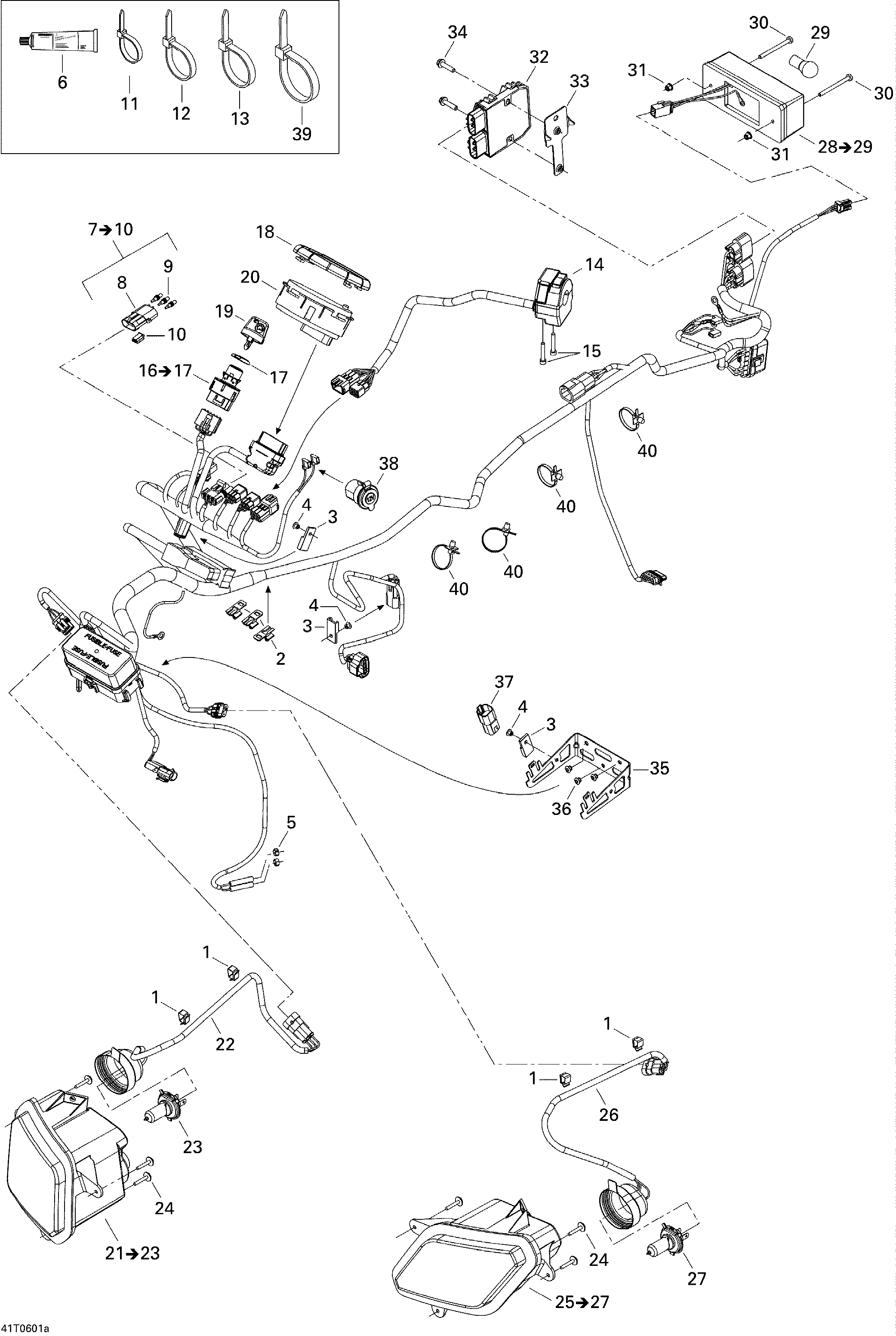

10- Electrical Accessories STD для BRP Outlander 800 STD 4 X 4 - 2006
-
№АртикулНазвание
-
1414227300 ClipClip
-
2515175283 Housing SupportHousing Support
-
3270000141 ClipClip
-
4390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
5293650100 Oetiker ClampOetiker Clamp
-
6293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
7710000917 Connector Ass'y. STD / Includes 7 to 10Connector Ass'y. STD / Includes 7 to 10
-
8278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
9278000216 Wire SealWire Seal
-
10409014200 ClipClip
-
11293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
12414115200 Tie-rap 180 mmTie-rap 180 mm
-
13293750008 Tie-Rap 350 mm. EuropeTie-Rap 350 mm. Europe
-
14710000791 Multi-fonction HandleMulti-fonction Handle
-
15205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
16710000728 Ignition Switch. Includes 16 to 17Ignition Switch. Includes 16 to 17
-
18710000353 Trim RingTrim Ring
-
19710000817 Black-Electronic KeyBlack-Electronic Key
-
20710000919 SpeedometerSpeedometer
-
21710000697 RH Headlamp. Includes 21 to 23RH Headlamp. Includes 21 to 23
-
22710000828 Light HarnessLight Harness
-
23710000871 Bulb, 12 V / 35/35 WBulb, 12 V / 35/35 W
-
24250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
25710000641 LH Headlamp. Includes 25 to 27LH Headlamp. Includes 25 to 27
-
26710000828 Light HarnessLight Harness
-
27710000871 Bulb, 12 V / 35/35 WBulb, 12 V / 35/35 W
-
28710000711 Tail Light Housing Ass'y. Includes 28 to 29Tail Light Housing Ass'y. Includes 28 to 29
-
29410504100 Tail Light BulbTail Light Bulb
-
30208656091 Pan Head Phillips Screw M5 X 60Pan Head Phillips Screw M5 X 60
-
31233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
32710000870 Volt RegulatorVolt Regulator
-
33710000719 Rectifier SupportRectifier Support
-
34210262580 Hex Flanged Forming Screw M6 X 25Hex Flanged Forming Screw M6 X 25
-
35710000795 Fuse SupportFuse Support
-
36390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
37278001725 Diagnostic Connect CapDiagnostic Connect Cap
-
38710000024 Dc Outlet, 12 VoltsDc Outlet, 12 Volts
-
39293750041 Tie-rap 637 mmTie-rap 637 mm
-
40293750009 Tie-rap 160 mmTie-rap 160 mm
