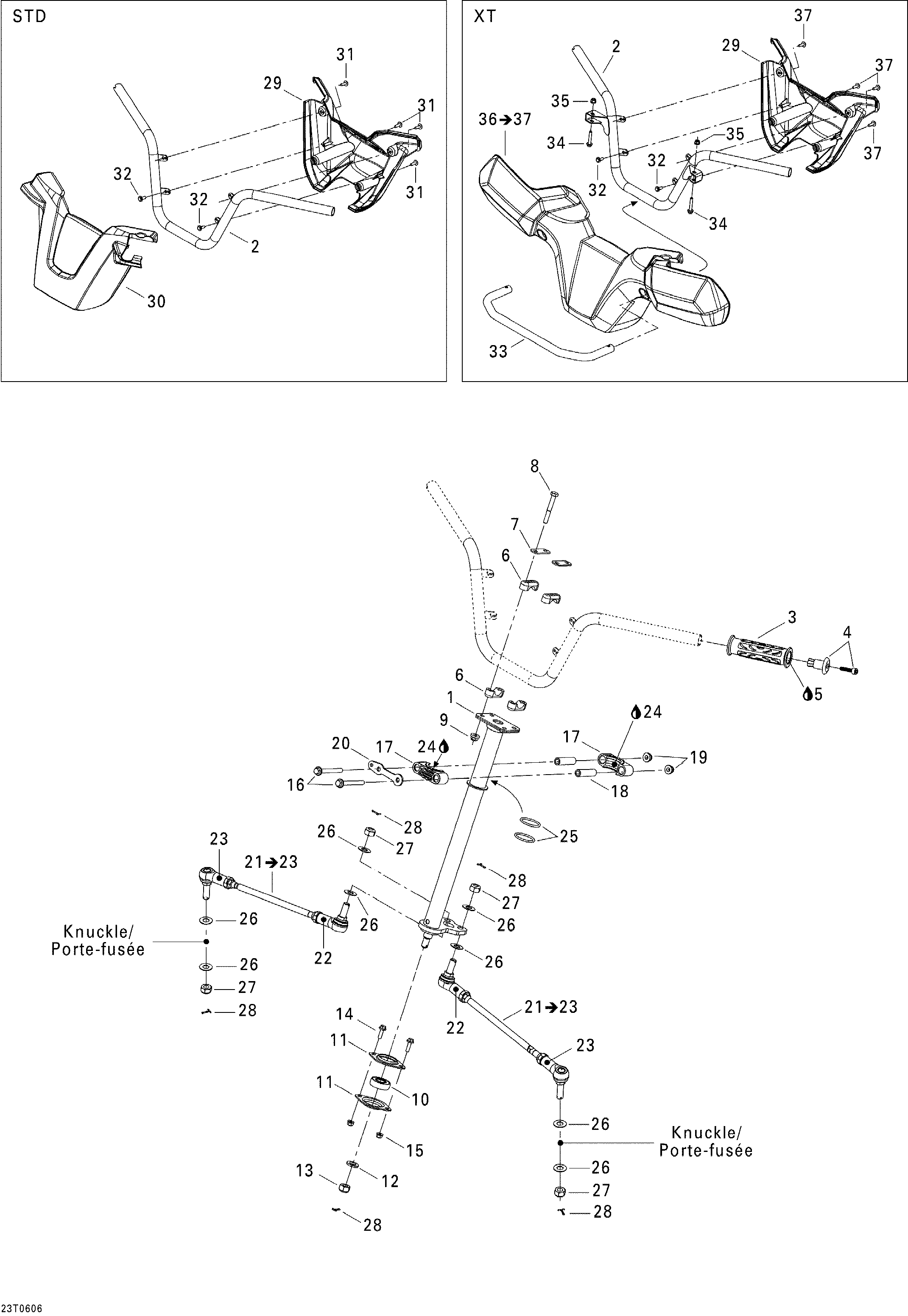

07- Steering System, STD для BRP Outlander MAX 400 STD 4 X 4 - 2006
-
№АртикулНазвание
-
1709400237 Main TubeMain Tube
-
2709400401 Handle Bar. STDHandle Bar. STD
-
2709400399 Handle Bar. XTHandle Bar. XT
-
3709400157 Grip, BlackGrip, Black
-
4709400189 End PieceEnd Piece
-
5293800100 Loctite 406, 7 OzLoctite 406, 7 Oz
-
6506151622 Steering SupportSteering Support
-
7506151196 ReinforcementReinforcement
-
8207086046 Hex Screw M8 X 60Hex Screw M8 X 60
-
9233281416 Elastic Flange Nut M8Elastic Flange Nut M8
-
10709400224 Thrust BearingThrust Bearing
-
11709400152 Thrust WasherThrust Washer
-
12234021410 Flat Washer 12 mmFlat Washer 12 mm
-
13250000047 Hex Flanged Elastic Nut M12Hex Flanged Elastic Nut M12
-
14207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
15233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
16207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
17709400052 Half BushingHalf Bushing
-
18709400072 BushingBushing
-
19233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
20709400053 Stopper PlateStopper Plate
-
21709400190 Tie Rod Ass'Y. Includes 21 to 23Tie Rod Ass'Y. Includes 21 to 23
-
22709400195 RH Ball JointRH Ball Joint
-
23709400196 LH Ball JointLH Ball Joint
-
24293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
25293300068 O-RingO-Ring
-
26706200281 Hardened WasherHardened Washer
-
27250100045 Nut M12Nut M12
-
28211400013 Cotter PinCotter Pin
-
29709400313 Rear Steering Cover, BlackRear Steering Cover, Black
-
30709400386 Front Steering Cover, Black. STDFront Steering Cover, Black. STD
-
31250000146 Truss Head Torx Screw K50 X 16. STDTruss Head Torx Screw K50 X 16. STD
-
32243141640 Hex Flanged Plastite Screw M4.8 X 16Hex Flanged Plastite Screw M4.8 X 16
