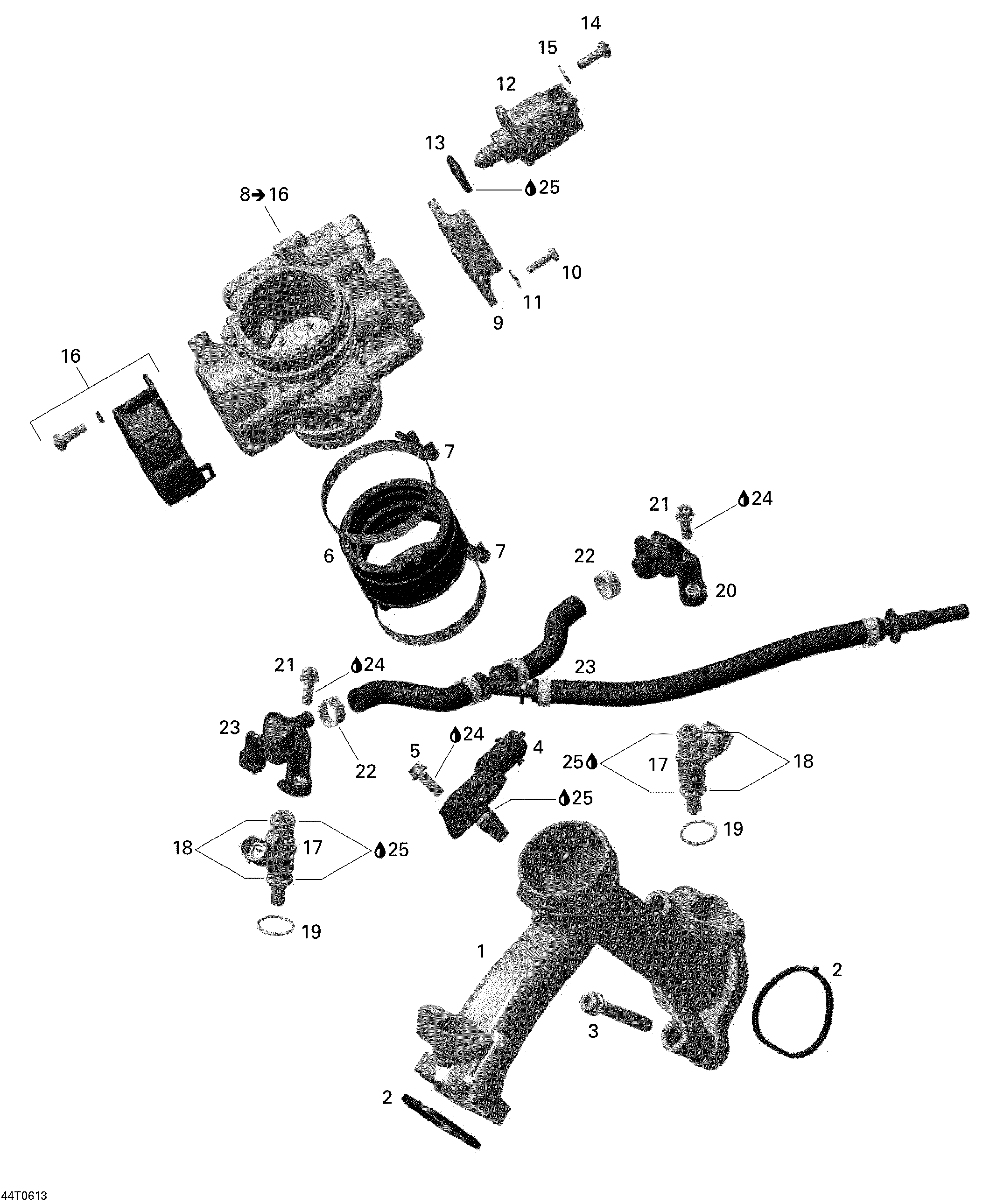

01- Intake Manifold And Throttle Body для BRP Outlander MAX 650 STD 4 X 4 - 2006
-
№АртикулНазвание
-
1420667250 Air Intake ManifoldAir Intake Manifold
-
2420630640 GasketGasket
-
3420440397 Flanged Torx Screw M8 X 55Flanged Torx Screw M8 X 55
-
4420874650 Temperature SensorTemperature Sensor
-
5420440167 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
6420267480 Intake AdmissionIntake Admission
-
7420251480 Hose ClampHose Clamp
-
8420296870 Throttle Body. Includes 8 to 16Throttle Body. Includes 8 to 16
-
12420963055 Idle Bypass ValveIdle Bypass Valve
-
13420631780 O-ringO-ring
-
14420440911 Binding Head Screw M5 X 16Binding Head Screw M5 X 16
-
15420845710 Snap RingSnap Ring
-
16420281540 Cover KitCover Kit
-
17420874402 Injection ValveInjection Valve
-
18420631220 O-ringO-ring
-
19420631295 O-ringO-ring
-
20420874410 Fuel RailFuel Rail
-
21420440167 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
22420851458 ClampClamp
-
23420874712 Fuel Injector Line Ass'yFuel Injector Line Ass'y
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 LiterEngine Oil 4 Strokes, 5w40, 12 X 1 Liter
