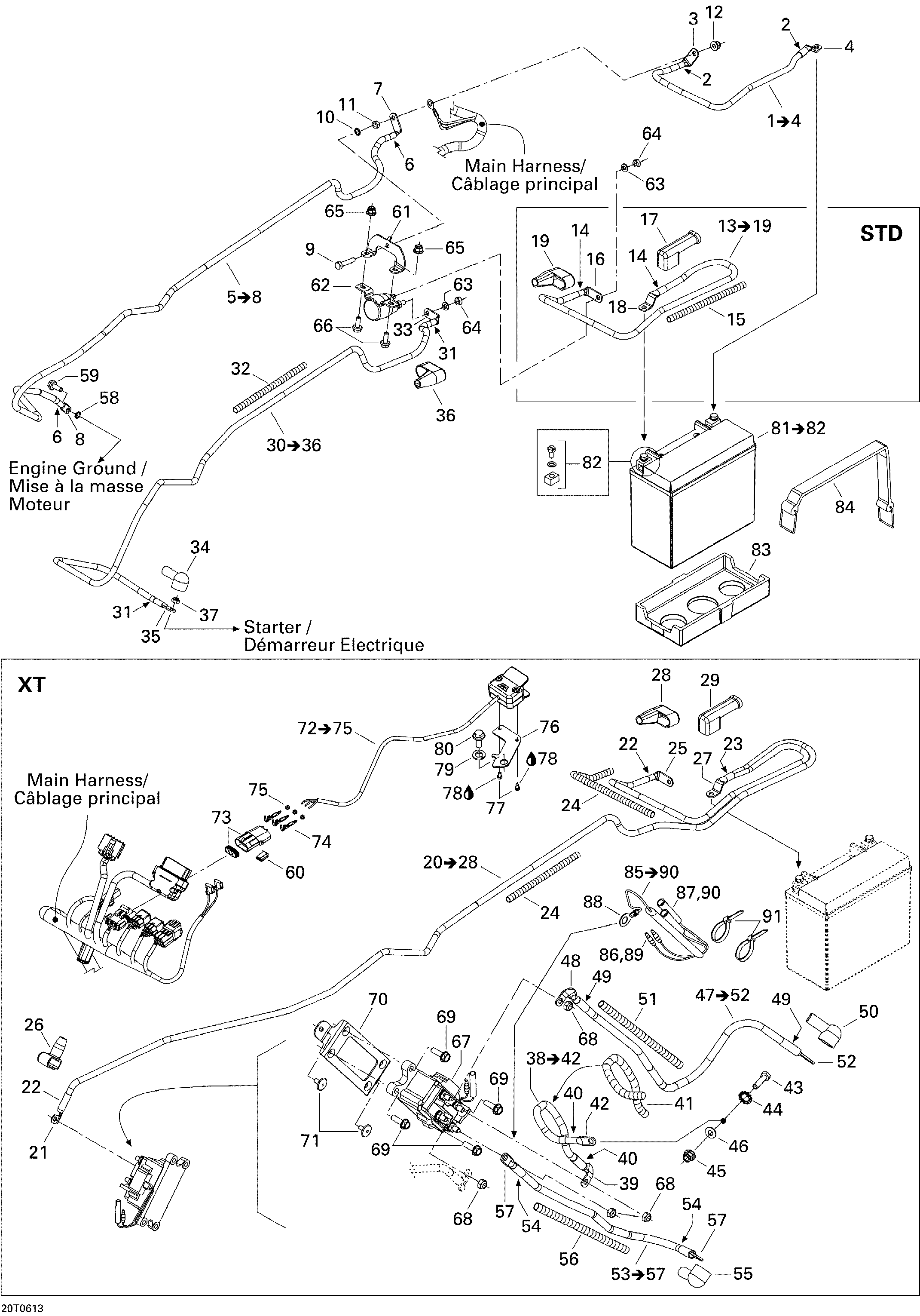

10- Electrical System MAX XT для BRP Outlander MAX 650 XT 4 X 4 - 2006
-
№АртикулНазвание
-
1710000830 Ground Cable, Battery/frame. Includes 1 to 4Ground Cable, Battery/frame. Includes 1 to 4
-
2710000483 Shrink TubingShrink Tubing
-
3710000508 Open BarrelOpen Barrel
-
4710000518 Open BarrelOpen Barrel
-
5710000844 Ground Cable. Includes 5 to 8Ground Cable. Includes 5 to 8
-
6710000483 Shrink TubingShrink Tubing
-
7710000508 Open BarrelOpen Barrel
-
8710000530 TerminalTerminal
-
9207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
10234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
11232061414 Hex Nut M6Hex Nut M6
-
12233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
20710000843 Positive Cable. XT, Includes 20 to 28Positive Cable. XT, Includes 20 to 28
-
21710000476 Open Barrel, 6.6 mm. XTOpen Barrel, 6.6 mm. XT
-
22710000483 Shrink Tubing. XTShrink Tubing. XT
-
23275500578 Shrink Tubing. XTShrink Tubing. XT
-
24710000497 Protector Tube, 9 mm. XTProtector Tube, 9 mm. XT
-
25710000508 Open Barrel. XTOpen Barrel. XT
-
26710000522 Protector Cap. XTProtector Cap. XT
-
27710000519 Open Barrel. XTOpen Barrel. XT
-
28710000902 Protector Cap. XTProtector Cap. XT
-
29710000516 Protector Cap. XTProtector Cap. XT
-
30710000903 Positive Cable, Starter Relay/starter. Includes 30 to 36Positive Cable, Starter Relay/starter. Includes 30 to 36
-
31710000483 Shrink TubingShrink Tubing
-
32710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
33710000508 Open BarrelOpen Barrel
-
34710000526 Protector CapProtector Cap
-
35710000530 TerminalTerminal
-
36710000902 Protector CapProtector Cap
-
37232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
38710000455 Negative Cable. XT / Includes 38 to 42Negative Cable. XT / Includes 38 to 42
-
39710000476 Open Barrel, 6.6 mm. XTOpen Barrel, 6.6 mm. XT
-
40710000483 Shrink Tubing. XTShrink Tubing. XT
-
41710000497 Protector Tube, 9 mm. XTProtector Tube, 9 mm. XT
-
42710000530 Terminal. XTTerminal. XT
-
43207662044 Hex Flanged Screw M6 X 20. XTHex Flanged Screw M6 X 20. XT
-
44250200041 Lock Washer Serrated M6. XTLock Washer Serrated M6. XT
-
45233261414 Hex Flanged Elastic Nut M6. XTHex Flanged Elastic Nut M6. XT
-
46224061121 Flat Washer. XTFlat Washer. XT
-
47710000451 Winch Positive Cable, Blue. XT / Includes 47 to 52Winch Positive Cable, Blue. XT / Includes 47 to 52
-
48710000476 Open Barrel, 6.6 mm. XTOpen Barrel, 6.6 mm. XT
-
49710000483 Shrink Tubing. XTShrink Tubing. XT
-
50710000494 Protector Cap. XTProtector Cap. XT
-
51710000497 Protector Tube, 9 mm. XTProtector Tube, 9 mm. XT
-
52710000530 Terminal. XTTerminal. XT
-
53710000454 Winch Positive Cable, Yellow. XT / Includes 53 to 57Winch Positive Cable, Yellow. XT / Includes 53 to 57
-
54710000483 Shrink Tubing. XTShrink Tubing. XT
-
55710000494 Protector Cap. XTProtector Cap. XT
-
56710000497 Protector Tube, 9 mm. XTProtector Tube, 9 mm. XT
-
57710000530 Terminal. XTTerminal. XT
-
58234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
59207561644 Hex Flanged Screw M6 X 16, Scotch GripHex Flanged Screw M6 X 16, Scotch Grip
-
60409014200 Clip. XTClip. XT
-
61705201325 Starter Relay SupportStarter Relay Support
-
62515176011 Starter RelayStarter Relay
-
63234161601 Lock Washer Helical M6Lock Washer Helical M6
-
64232061600 Hex Nut M6Hex Nut M6
-
65233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
66207661244 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
67710000826 Winch Solenoid. XTWinch Solenoid. XT
-
68232561414 Elastic Stop Nut M6. XTElastic Stop Nut M6. XT
-
69210262080 Hex Forming Screw M6 X 20. XTHex Forming Screw M6 X 20. XT
-
70710000798 Relay Support, Winch. XTRelay Support, Winch. XT
-
71390406500 Pop Rivet 3/16''. XTPop Rivet 3/16''. XT
-
72710000827 Winch Interrupter. XT / Includes 72 to 75Winch Interrupter. XT / Includes 72 to 75
-
73278000281 Female Terminal Housing, 3 Circuits. XTFemale Terminal Housing, 3 Circuits. XT
-
74278000222 Male Terminal. XTMale Terminal. XT
-
75278001065 Wire Seal. XTWire Seal. XT
-
76710000755 Winch Interrupter Support. XTWinch Interrupter Support. XT
-
77250000153 Hex Cap Screw 6-32 X 1/4''. XTHex Cap Screw 6-32 X 1/4''. XT
-
78293800060 Loctite 243, 10 ml. XTLoctite 243, 10 ml. XT
-
79234101601 Helicoidal Lock Washer M10. XTHelicoidal Lock Washer M10. XT
-
80250000029 Hex Screw M10 X 16. XTHex Screw M10 X 16. XT
-
81410301203 Battery, 18 Amperes. Includes 81 to 82Battery, 18 Amperes. Includes 81 to 82
-
82295500849 Battery Fastener KitBattery Fastener Kit
-
83710000279 Insulator PadInsulator Pad
-
84293850097 Rubber StrapRubber Strap
-
85710000999 Diode Harness. XT, Includes 85 to 90Diode Harness. XT, Includes 85 to 90
-
86278000230 Male Terminal. XTMale Terminal. XT
-
87278001009 Female Terminal. XTFemale Terminal. XT
-
88278000992 Open Barrel. XTOpen Barrel. XT
-
89278001008 Insulated Sheath. XTInsulated Sheath. XT
-
90278001007 Insulated Sheath. XTInsulated Sheath. XT
-
91414115200 Tie-rap 180 mm. XTTie-rap 180 mm. XT
