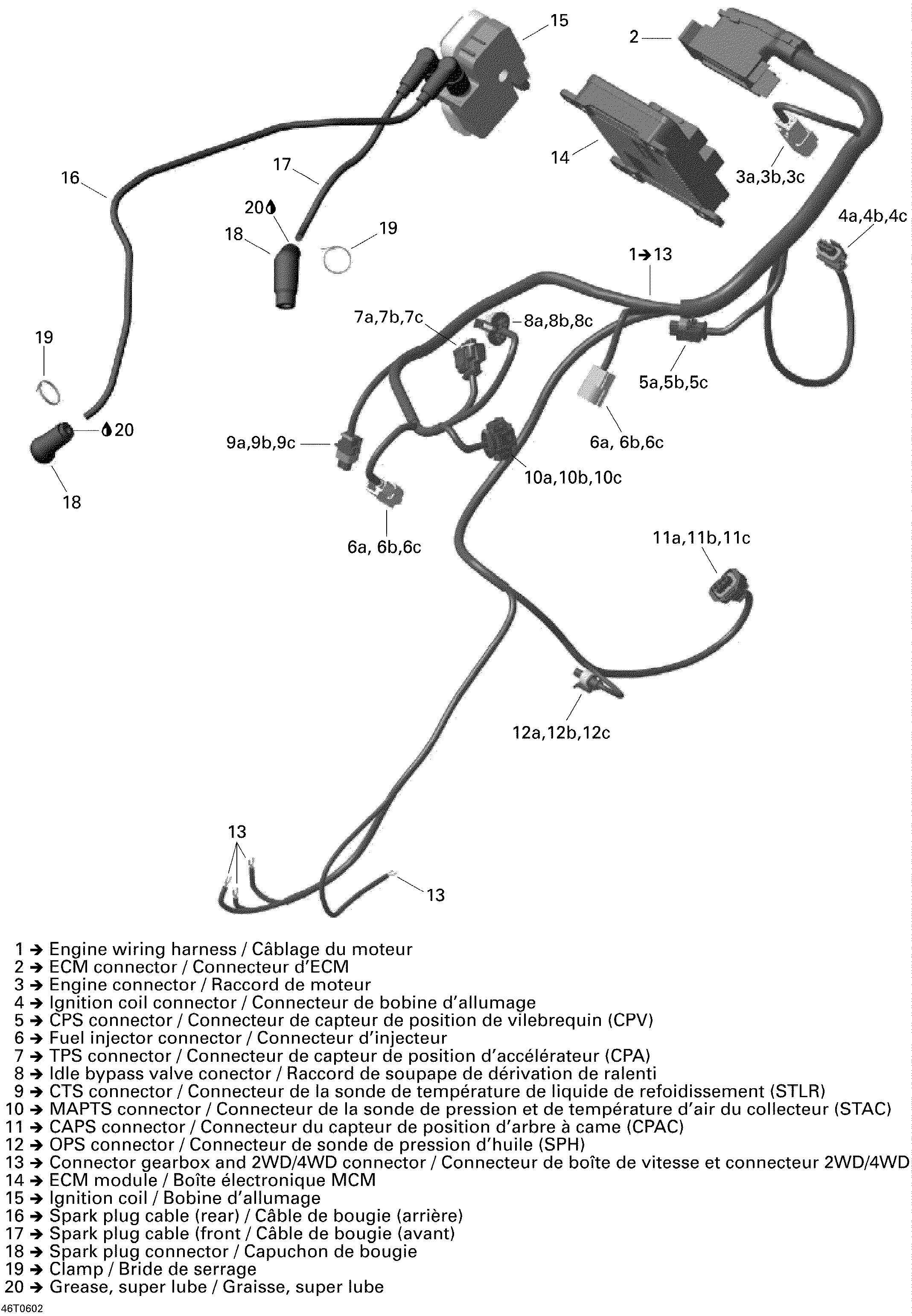

10- Engine Harness для BRP Outlander MAX 800 XT 4 X 4 - 2006
-
№АртикулНазвание
-
1420664229 Engine Wiring Harness. Includes 1 to 13Engine Wiring Harness. Includes 1 to 13
-
2420664450 ECM ConnectorECM Connector
-
3a278000631 Male TerminalMale Terminal
-
3b278000635 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
3c278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
4a710000403 Wire SealWire Seal
-
4b278001210 Female TerminalFemale Terminal
-
4c278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
5a710000403 Wire SealWire Seal
-
5b278001210 Female TerminalFemale Terminal
-
5c278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
7A710000403 Wire SealWire Seal
-
9a710000403 Wire SealWire Seal
-
9c278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
10a710000403 Wire SealWire Seal
-
10c278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
11a710000403 Wire SealWire Seal
-
11c278001830 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
12a278001013 Wire SealWire Seal
-
12b278001014 Female TerminalFemale Terminal
-
12c278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
14420266374 Ecm ModuleEcm Module
-
14420266375 Ecm Module, CE. EuropeEcm Module, CE. Europe
-
15420266070 Ignition CoilIgnition Coil
-
16420665330 Spark Plug Cable, Rear, 610 mmSpark Plug Cable, Rear, 610 mm
-
17420664300 Spark Plug Cable, Front, 365 mmSpark Plug Cable, Front, 365 mm
-
18420265240 Spark Plug ConnectorSpark Plug Connector
-
20293550030 Grease, Super LubeGrease, Super Lube
