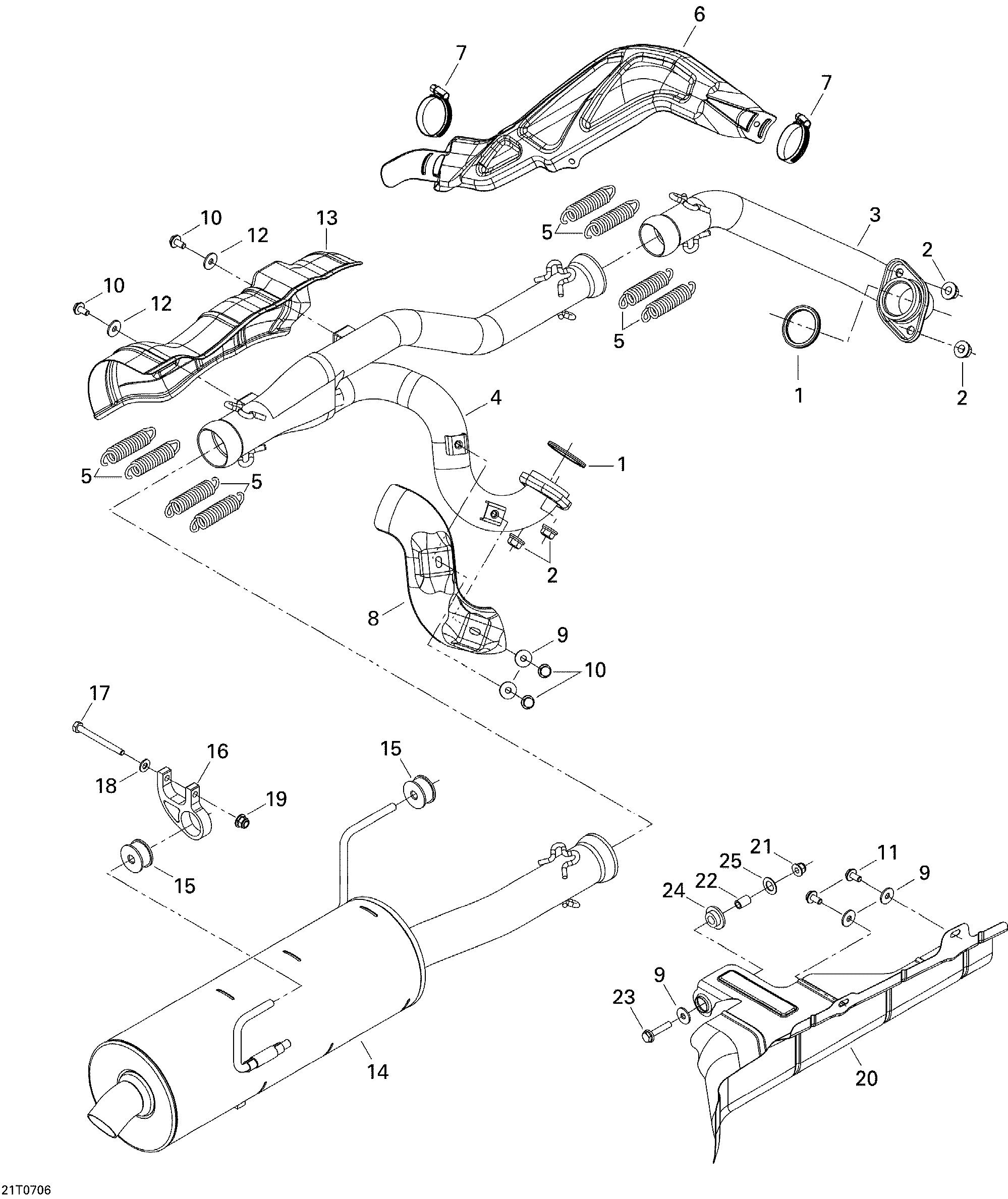

01- Exhaust System для BRP Outlander 500 STD 4 X 4 - 2007
-
№АртикулНазвание
-
1707600317 GasketGasket
-
2233081416 Hex Flanged Nut M8Hex Flanged Nut M8
-
3707600266 Front Tuned PipeFront Tuned Pipe
-
4707600270 Rear Tuned PipeRear Tuned Pipe
-
5415107100 SpringSpring
-
6707600342 Front Heat ShieldFront Heat Shield
-
7293650098 Norma Gear ClampNorma Gear Clamp
-
8707600318 Tuned Pipe ProtectorTuned Pipe Protector
-
9391302000 Flat WasherFlat Washer
-
10250000073 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
11210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
12224081301 Flat WasherFlat Washer
-
13707600344 Rear Heat ShieldRear Heat Shield
-
14707600271 MufflerMuffler
-
15707600012 Anti-Vibration RubberAnti-Vibration Rubber
-
16707600411 Muffler BraketMuffler Braket
-
17207066544 Hex Screw M6 X 65Hex Screw M6 X 65
-
18224061121 Flat WasherFlat Washer
-
19233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
20707600284 Muffler ProtectorMuffler Protector
-
21233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
22708000084 SleeveSleeve
-
23207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
24709200115 BushingBushing
-
25503175800 WasherWasher
