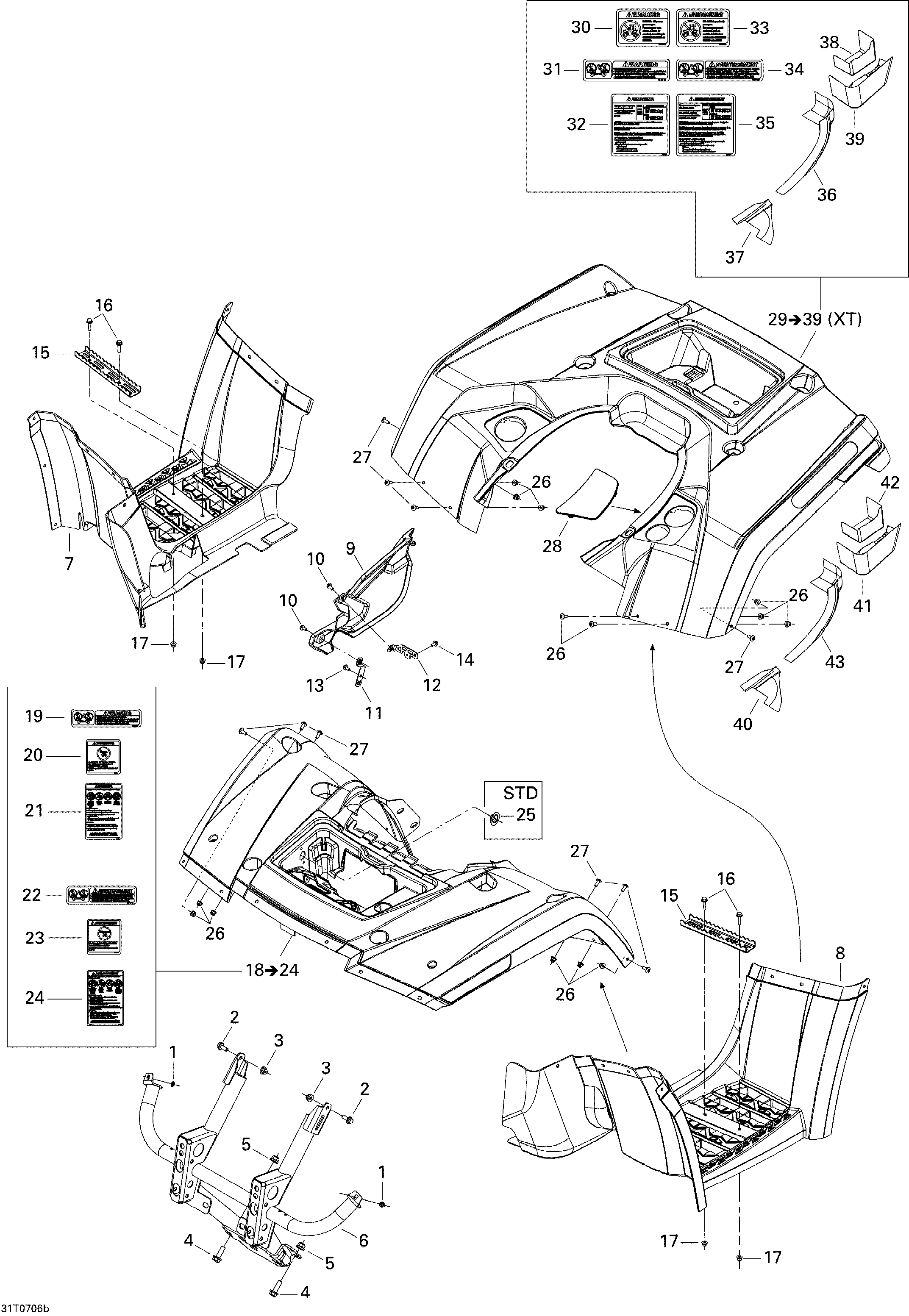

09- Body And Accessories 2 для BRP Outlander 500 XT 4 X 4 - 2007
-
№АртикулНазвание
-
1732610072 Push NutPush Nut
-
2207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
3233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
4207603044 Hex Flanged Screw M10 X 30Hex Flanged Screw M10 X 30
-
5233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
6705001827 Front BumperFront Bumper
-
6705002005 Front Bumper. CamoFront Bumper. Camo
-
7705001311 RH FootboardRH Footboard
-
8705001312 LH FootboardLH Footboard
-
9705002452 Engine CoverEngine Cover
-
10210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
11705000657 Engine Cover SupportEngine Cover Support
-
12705001826 Engine Cover SupportEngine Cover Support
-
13210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
14207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
15705000428 FootrestFootrest
-
16207662584 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
17233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
18703500584 Front Fender Kit, Red. Includes 18 to 24, Viper RedFront Fender Kit, Red. Includes 18 to 24, Viper Red
-
18703500585 Front Fender Kit, Yellow. Includes 18 to 24, YellowFront Fender Kit, Yellow. Includes 18 to 24, Yellow
-
18703500586 Front Fender Kit, Green. Includes 18 to 24, Laurentian GreenFront Fender Kit, Green. Includes 18 to 24, Laurentian Green
-
18703500587 Front Fender Kit, Camo. Includes 18 to 24, CamoFront Fender Kit, Camo. Includes 18 to 24, Camo
-
19704901089 Warning Label, Load. English VersionWarning Label, Load. English Version
-
20704900113 Warning Label, Under 16 Years Old. English VersionWarning Label, Under 16 Years Old. English Version
-
21704900112 Warning Label, Death And Injuries. English VersionWarning Label, Death And Injuries. English Version
-
22704901090 Warning Label, Load. French VersionWarning Label, Load. French Version
-
23704900012 Warning Label, Under 16 Years Old. French VersionWarning Label, Under 16 Years Old. French Version
-
24704900002 Warning Label, Death And Injuries. French VersionWarning Label, Death And Injuries. French Version
-
26233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
27250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
28705001910 LH Cap, BlackLH Cap, Black
-
29703500636 Rear Fender Kit, Red. Includes 29 to 39, Viper RedRear Fender Kit, Red. Includes 29 to 39, Viper Red
-
29703500637 Rear Fender Kit, Yellow. Includes 29 to 39, YellowRear Fender Kit, Yellow. Includes 29 to 39, Yellow
-
29703500638 Rear Fender Kit, Green. Includes 29 to 39, Laurentian GreenRear Fender Kit, Green. Includes 29 to 39, Laurentian Green
-
29703500639 Rear Fender Kit, Camo. Includes 29 to 39, CamoRear Fender Kit, Camo. Includes 29 to 39, Camo
-
30704900005 Warning Label, Passenger. English VersionWarning Label, Passenger. English Version
-
31704901089 Warning Label, Load. English VersionWarning Label, Load. English Version
-
32704901267 Warning Label, Tire Pressure. English VersionWarning Label, Tire Pressure. English Version
-
33704900006 Warning Label, Passenger. French VersionWarning Label, Passenger. French Version
-
34704901090 Warning Label, Load. French VersionWarning Label, Load. French Version
-
35704901278 Warning Label, Tire Pressure. French VersionWarning Label, Tire Pressure. French Version
-
36705002085 Reflective SheetReflective Sheet
-
37705002014 Reflective SheetReflective Sheet
-
38705002189 Reflective SheetReflective Sheet
-
39705002191 Reflective SheetReflective Sheet
-
40705002014 Reflective SheetReflective Sheet
-
41705002191 Reflective SheetReflective Sheet
-
42705002189 Reflective SheetReflective Sheet
-
43705002085 Reflective SheetReflective Sheet
