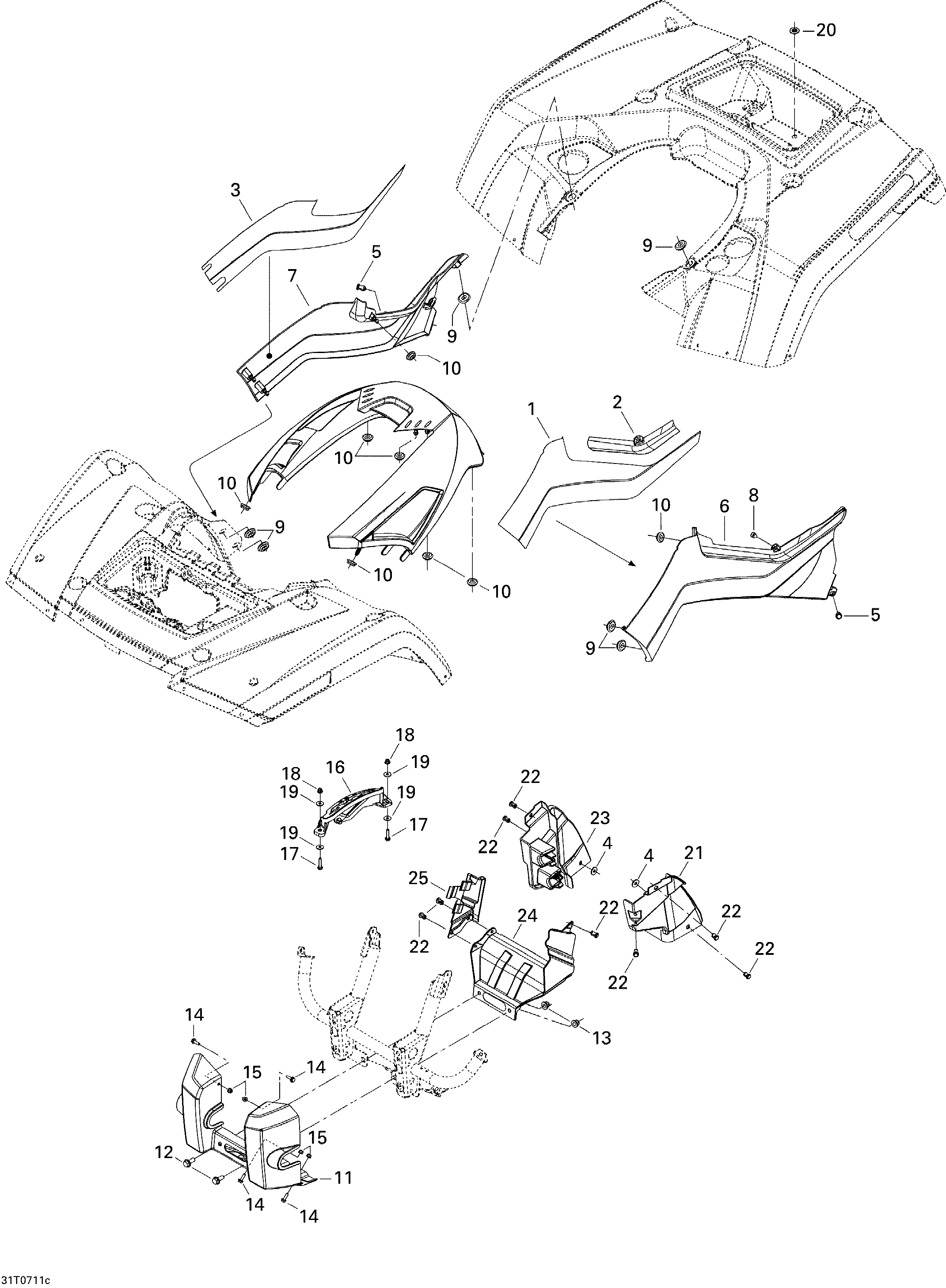

09- Body And Accessories 3, STD для BRP Outlander 650 STD 4 X 4 - 2007
-
№АртикулНазвание
-
1705001990 LH Reflective SheetLH Reflective Sheet
-
2705001989 Reflective SheetReflective Sheet
-
3705002126 RH Reflective SheetRH Reflective Sheet
-
4506151252 WasherWasher
-
5293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
6705001315 LH Lateral Panel, Red. Viper RedLH Lateral Panel, Red. Viper Red
-
6705001995 LH Lateral Panel, Yellow. YellowLH Lateral Panel, Yellow. Yellow
-
6705001996 LH Lateral Panel, Green. Laurentian GreenLH Lateral Panel, Green. Laurentian Green
-
6705002146 LH Lateral Panel, Camo. CamoLH Lateral Panel, Camo. Camo
-
7705001316 RH Lateral Panel, Red. Viper RedRH Lateral Panel, Red. Viper Red
-
7705001997 RH Lateral Panel, Yellow. YellowRH Lateral Panel, Yellow. Yellow
-
7705001998 RH Lateral Panel, Green. Laurentian GreenRH Lateral Panel, Green. Laurentian Green
-
7705002144 RH Lateral Panel, Camo. CamoRH Lateral Panel, Camo. Camo
-
8293830005 Rubber Plug, BlackRubber Plug, Black
-
9705005156 Oblong WasherOblong Washer
-
10705002149 GrommetGrommet
-
11705001530 Front Protection Plate. STDFront Protection Plate. STD
-
12207602544 Hex Flanged Screw M10 X 25. STDHex Flanged Screw M10 X 25. STD
-
13233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
16705001532 Lever IndicatorLever Indicator
-
17207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
18233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
19224061201 Flat WasherFlat Washer
-
20414859400 CapCap
-
21705002125 LH Inner FenderLH Inner Fender
-
22293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
23705002124 RH Inner FenderRH Inner Fender
-
24705002134 LH DeflectorLH Deflector
-
25705002135 RH DeflectorRH Deflector
