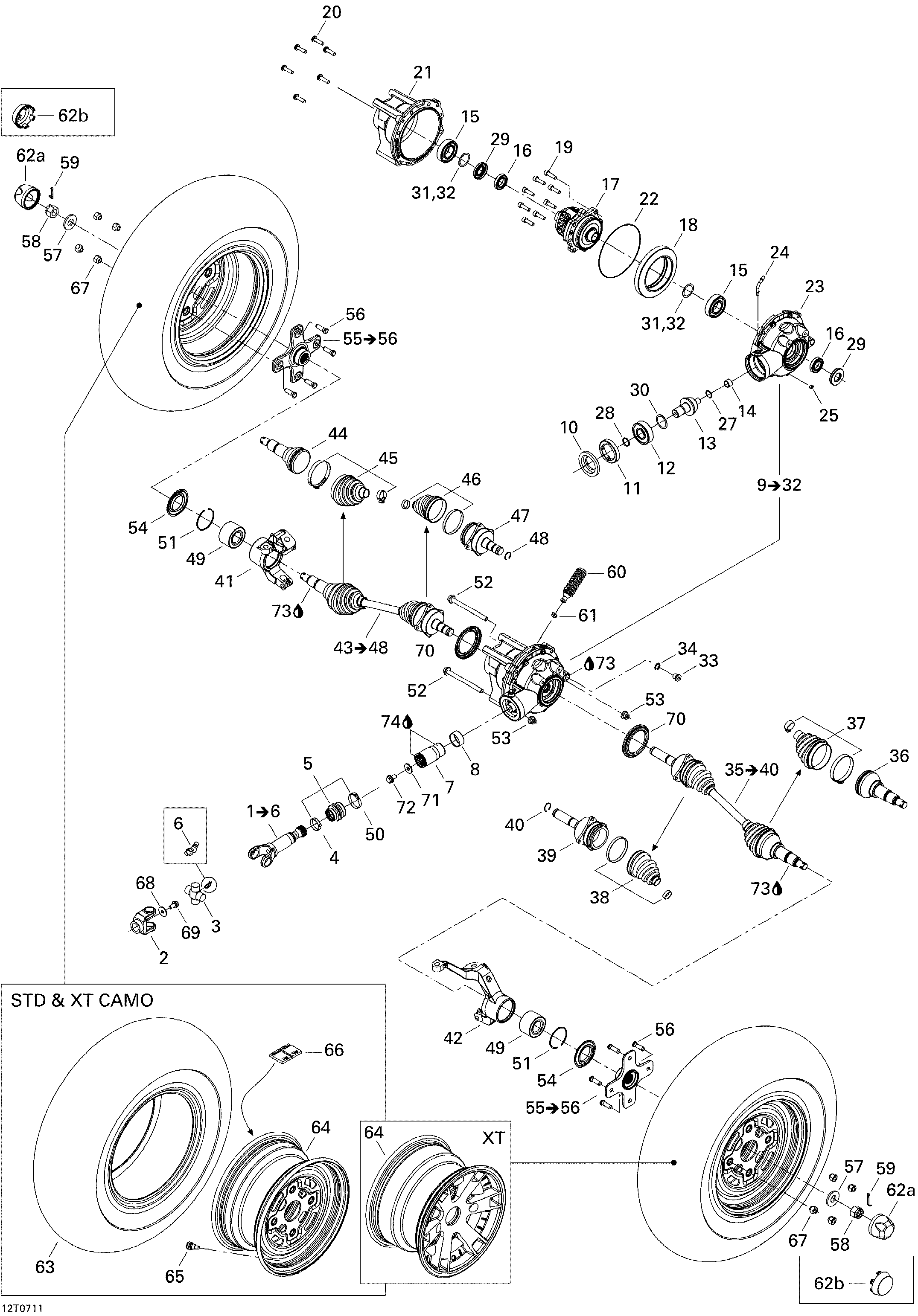

07- Drive System, Front XT для BRP Outlander 650 XT 4 X 4 - 2007
-
№АртикулНазвание
-
1705400551 Front Drive Axle Ass'y. Includes 1 to 6Front Drive Axle Ass'y. Includes 1 to 6
-
2705400391 Yoke, Fixed JointYoke, Fixed Joint
-
3703000023 Unit Pack KitUnit Pack Kit
-
4705400148 CollarCollar
-
5703500255 Rubber Boot KitRubber Boot Kit
-
6705500841 Grease FittingGrease Fitting
-
7705400149 Coupling SleeveCoupling Sleeve
-
8705400036 Wear RingWear Ring
-
9705400425 Front Differential Ass'y. Includes 9 to 32Front Differential Ass'y. Includes 9 to 32
-
10705400027 Oil SealOil Seal
-
11705500789 NutNut
-
12705500260 Ball BearingBall Bearing
-
13705500268 Gear, 10 TeethGear, 10 Teeth
-
14705500261 Needle BearingNeedle Bearing
-
15705500259 Ball BearingBall Bearing
-
16293350044 Ball BearingBall Bearing
-
17705400320 DifferentialDifferential
-
18705400192 Gear, 36 TeethGear, 36 Teeth
-
19705400101 Ring Gear ScrewRing Gear Screw
-
20705500264 ScrewScrew
-
21705400297 Front CoverFront Cover
-
22705500265 SealSeal
-
23705400299 Front Cover, PinionFront Cover, Pinion
-
24705500262 Vent ValveVent Valve
-
25705500245 Drain PlugDrain Plug
-
27705500269 Retaining RingRetaining Ring
-
28705500267 O-RingO-Ring
-
29705500255 Oil SealOil Seal
-
30703500049 Pinion Shim KitPinion Shim Kit
-
31703500288 Differential Shim KitDifferential Shim Kit
-
32703500050 Differential Shim KitDifferential Shim Kit
-
33705500504 Fill Level PlugFill Level Plug
-
34705500506 Copper WasherCopper Washer
-
35705400508 RH Cv Joint. Includes 35 to 40RH Cv Joint. Includes 35 to 40
-
36705500560 Cv JointCv Joint
-
37705400511 Wheel Boot KitWheel Boot Kit
-
38705400512 Differential Boot KitDifferential Boot Kit
-
39705400513 RH Plunging JointRH Plunging Joint
-
40705400042 CirclipCirclip
-
41705400473 LH KnuckleLH Knuckle
-
42705400474 RH KnuckleRH Knuckle
-
43705400510 LH Cv Joint. Includes 43 to 48LH Cv Joint. Includes 43 to 48
-
44705500560 Cv JointCv Joint
-
45705400511 Wheel Boot KitWheel Boot Kit
-
46705400512 Differential Boot KitDifferential Boot Kit
-
47705400514 LH Plunging JointLH Plunging Joint
-
48705400042 CirclipCirclip
-
49293350040 Cone BearingCone Bearing
-
50293650138 Oetiker ClampOetiker Clamp
-
51293370019 CirclipCirclip
-
52230602546 Hex Flanged Screw M10 X 125Hex Flanged Screw M10 X 125
-
53233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
54705500564 Wear SleeveWear Sleeve
-
55705500596 Wheel Hub Ass'y. Includes 55 to 56Wheel Hub Ass'y. Includes 55 to 56
-
56250300020 Wheel StudWheel Stud
-
57250200049 Spring WasherSpring Washer
-
58250100047 Hex Castellated Nut M18Hex Castellated Nut M18
-
59250400016 Cotter PinCotter Pin
-
60705400552 Rubber BellowRubber Bellow
-
61293650042 Oetiker ClampOetiker Clamp
-
62a705400012 Wheel Cap. XT, CAMOWheel Cap. XT, CAMO
-
62b705400504 Wheel Cap. XTWheel Cap. XT
-
63705400431 Front Tire. XTFront Tire. XT
-
64705400243 Front Rim. CAMOFront Rim. CAMO
-
64705400440 Front Rim. XTFront Rim. XT
-
65705400193 Rim ValveRim Valve
-
66705500824 Adhesive Weight, 1/2 OzAdhesive Weight, 1/2 Oz
-
67250100042 Wheel Nut. XT, CAMOWheel Nut. XT, CAMO
-
67250100082 Chrome Wheel Nut M10 X 1.25. XTChrome Wheel Nut M10 X 1.25. XT
-
68211200041 WasherWasher
-
69207581646 Hex Flanged Screw M8 X 16, Scotch GripHex Flanged Screw M8 X 16, Scotch Grip
-
70705400309 Wear SleeveWear Sleeve
-
71250200014 Flat WasherFlat Washer
-
72250000060 Flanged Screw M10 X 16, Scotch GripFlanged Screw M10 X 16, Scotch Grip
-
73293600011 Pump Oil, 75w90, 12 X 6 OzPump Oil, 75w90, 12 X 6 Oz
-
74293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
