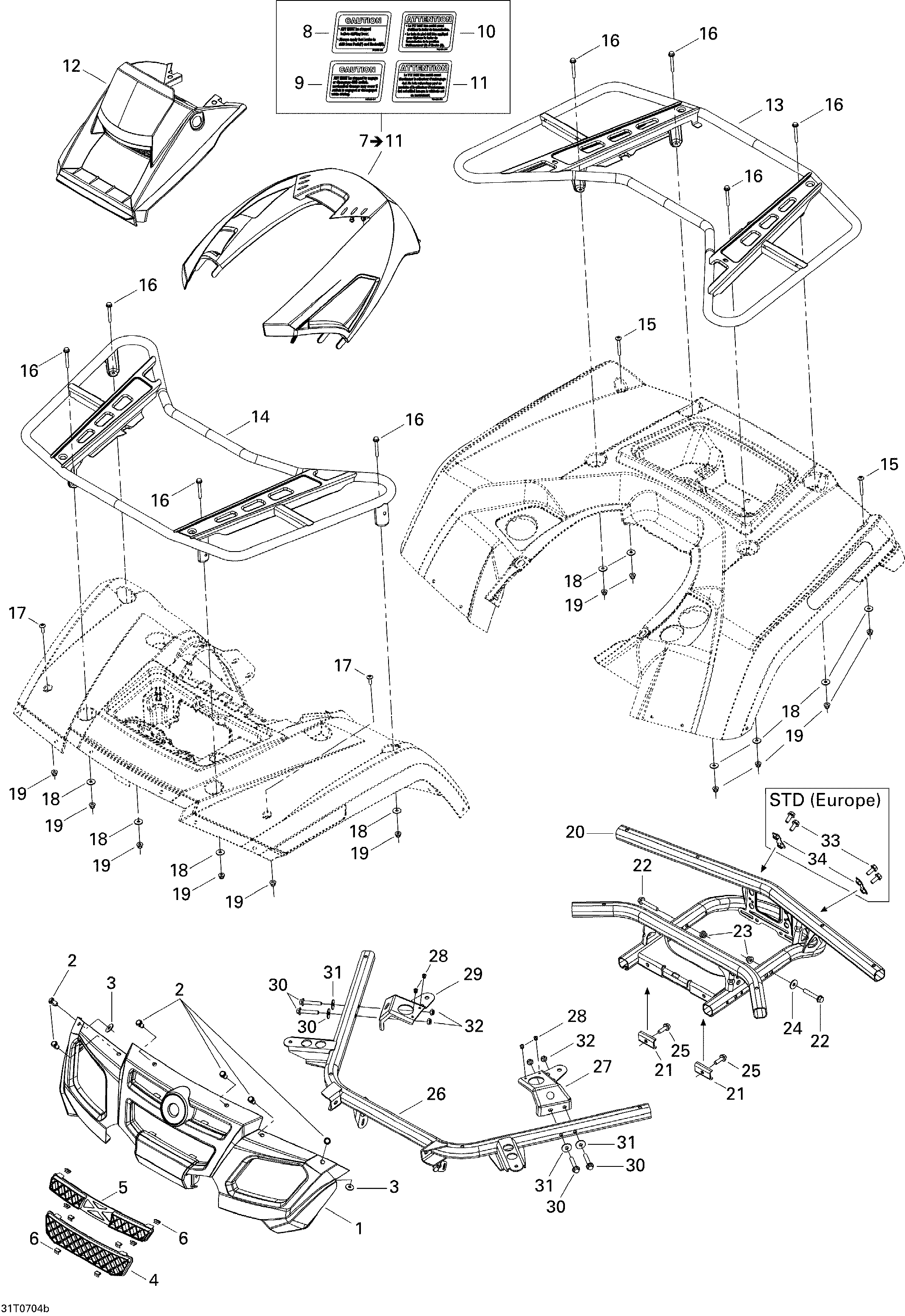

09- Body And Accessories 2, XT для BRP Outlander 800 XT 4 X 4 - 2007
-
№АртикулНазвание
-
1705001313 Front Fascia, Red. Viper RedFront Fascia, Red. Viper Red
-
1705001991 Front Fascia, Yellow. YellowFront Fascia, Yellow. Yellow
-
1705001992 Front Fascia, Green. Laurentian GreenFront Fascia, Green. Laurentian Green
-
1705002012 Front Fascia Camo. CamoFront Fascia Camo. Camo
-
2293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3506151252 WasherWasher
-
4705001679 Lower GrillLower Grill
-
5705001901 Upper GrillUpper Grill
-
6517302674 ClipClip
-
7703500597 Central Panel Kit, Red. Includes 7 to 11, Viper RedCentral Panel Kit, Red. Includes 7 to 11, Viper Red
-
7703500598 Central Panel Kit, Yellow. Includes 7 to 11, YellowCentral Panel Kit, Yellow. Includes 7 to 11, Yellow
-
7703500599 Central Panel Kit, Green. Includes 7 to 11, Laurentian GreenCentral Panel Kit, Green. Includes 7 to 11, Laurentian Green
-
7703500600 Central Panel Kit, Camo. Includes 7 to 11, CamoCentral Panel Kit, Camo. Includes 7 to 11, Camo
-
8704900470 Caution Label, Shifting Lever. English VersionCaution Label, Shifting Lever. English Version
-
9704900471 Caution Label, 4wd Switch. English VersionCaution Label, 4wd Switch. English Version
-
10704900475 Caution Label, Shifting Lever. French VersionCaution Label, Shifting Lever. French Version
-
11704900476 Caution Label, 4wd Switch. French VersionCaution Label, 4wd Switch. French Version
-
12705001314 DashboardDashboard
-
12705002210 Dashboard. EuropeDashboard. Europe
-
13705001780 Rear Luggage RackRear Luggage Rack
-
14705001769 Front Luggage RackFront Luggage Rack
-
15250000239 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
16207665044 Hex Flanged Screw M6 X 50Hex Flanged Screw M6 X 50
-
17250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
18224061201 Flat WasherFlat Washer
-
19233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
20705001459 Rear SupportRear Support
-
20705002004 Rear Support. CamoRear Support. Camo
-
21705001180 U ReinforcementU Reinforcement
-
22207685044 Hex Flanged Screw M8 X 50Hex Flanged Screw M8 X 50
-
23233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
24234082410 Flat Washer 8 mmFlat Washer 8 mm
-
25207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
26705001455 Front SupportFront Support
-
27705000692 LH Anchor PlateLH Anchor Plate
-
28390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
29705000693 RH Anchor PlateRH Anchor Plate
-
30207684544 Hex Flanged Screw M8 X 45Hex Flanged Screw M8 X 45
-
31234082410 Flat Washer 8 mmFlat Washer 8 mm
-
32232581414 Hex Elastic Nut M8Hex Elastic Nut M8
