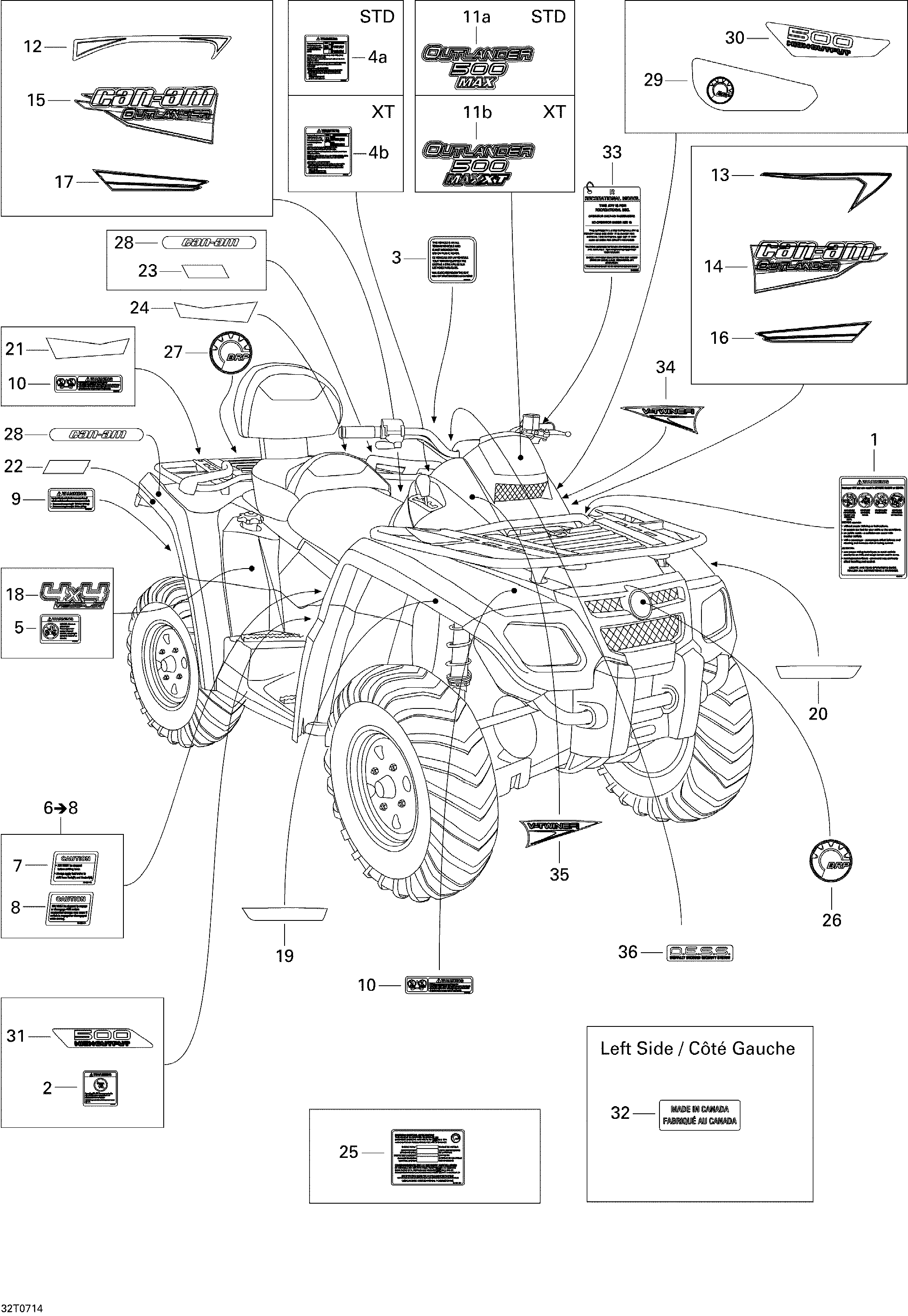

09- Decals STD для BRP Outlander MAX 500 STD 4 X 4 - 2007
-
№АртикулНазвание
-
1704900904 Warning Label, Death And InjuriesWarning Label, Death And Injuries
-
2704900642 Warning Label, Under 16 Years OldWarning Label, Under 16 Years Old
-
3704901315 Transport Canada LabelTransport Canada Label
-
4a704901120 Warning Label, Tire Pressure. STDWarning Label, Tire Pressure. STD
-
5704901113 Warning Label, Under 12 Years OldWarning Label, Under 12 Years Old
-
6704900434 Caution Label, Lever And 4wd Switch. Includes 6 to 8Caution Label, Lever And 4wd Switch. Includes 6 to 8
-
7704900470 Caution Label, Shifting LeverCaution Label, Shifting Lever
-
8704900471 Caution Label, 4wd SwitchCaution Label, 4wd Switch
-
9704901123 Warning Decal, TrailerWarning Decal, Trailer
-
10704901089 Warning Label, LoadWarning Label, Load
-
11a704901324 Pod 500 Max Decal. STDPod 500 Max Decal. STD
-
12704901243 RH Panel DecalRH Panel Decal
-
13704901244 LH Panel DecalLH Panel Decal
-
14704901246 LH Front Lateral DecalLH Front Lateral Decal
-
15704901248 RH Front Lateral DecalRH Front Lateral Decal
-
16704901249 LH Rear Lateral DecalLH Rear Lateral Decal
-
17704901250 RH Rear Lateral DecalRH Rear Lateral Decal
-
18704901219 4x4 Decal4x4 Decal
-
19704900989 RH Front ReflectorRH Front Reflector
-
20704900988 LH Front ReflectorLH Front Reflector
-
21704900990 RH Rear ReflectorRH Rear Reflector
-
22704900992 RH Lateral ReflectorRH Lateral Reflector
-
23704900993 LH Lateral ReflectorLH Lateral Reflector
-
24704900991 LH Rear ReflectorLH Rear Reflector
-
25704901281 Emission Control LabelEmission Control Label
-
26219902469 BRP Logo 68 mmBRP Logo 68 mm
-
27219902672 BRP Logo 68 mmBRP Logo 68 mm
-
28704901271 Signature LabelSignature Label
-
29704900963 CVT DecalCVT Decal
-
30704901205 Cvt 500 DecalCvt 500 Decal
-
31704901242 Engine Cover DecalEngine Cover Decal
-
32704900267 Canada DecalCanada Decal
-
33704900906 Warning Label, 2-up VehicleWarning Label, 2-up Vehicle
-
34704901115 LH Console DecalLH Console Decal
-
35704901116 RH Console DecalRH Console Decal
-
36704901117 DESS DecalDESS Decal
