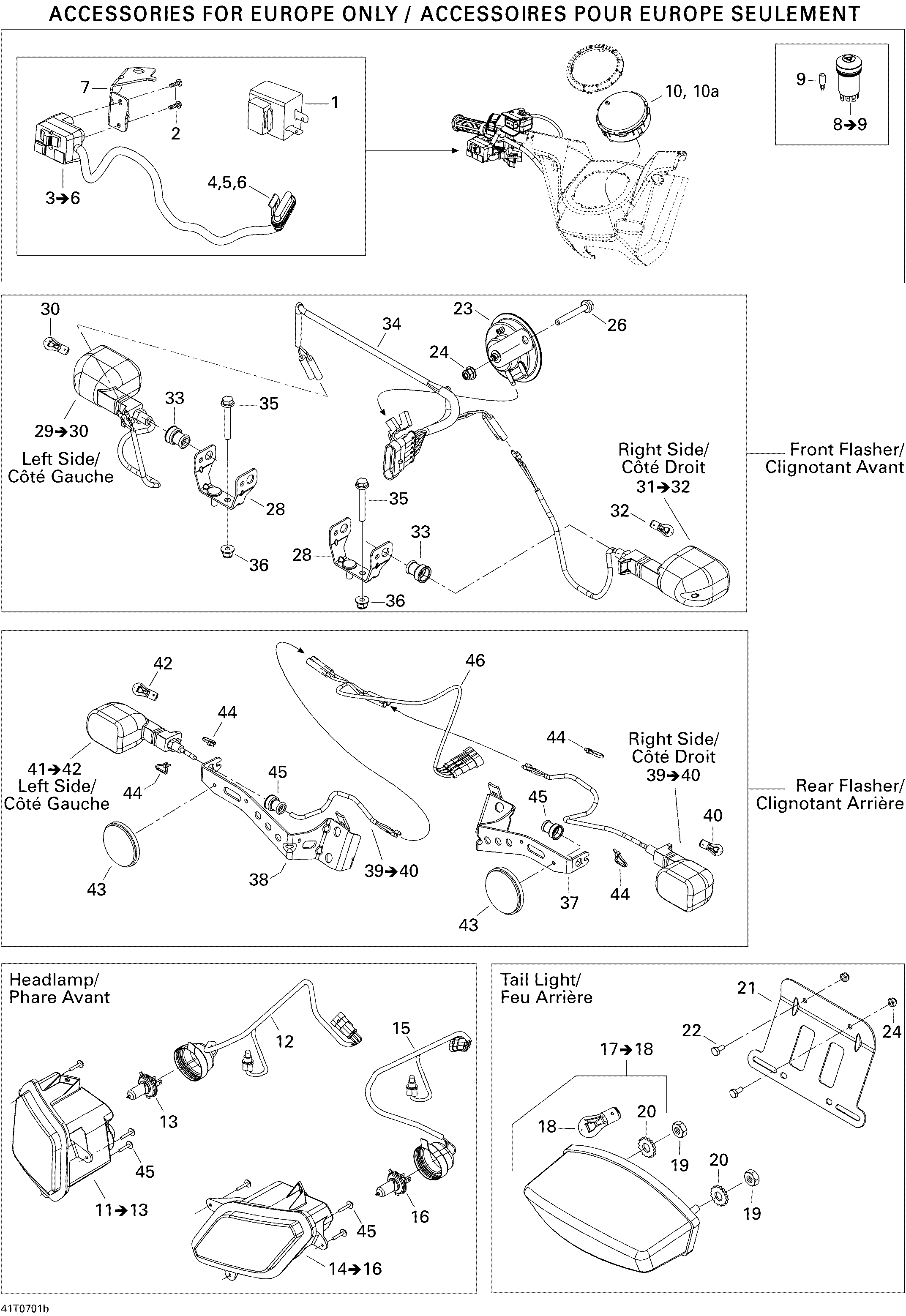

10- Electrical Accessories Euro для BRP Outlander MAX 650 XT 4 X 4 - 2007
-
№АртикулНазвание
-
1710000581 Flasher UnitFlasher Unit
-
2207141260 Screw Hex. M4 X 12Screw Hex. M4 X 12
-
3710000904 Flasher Switch. Includes 3 to 6Flasher Switch. Includes 3 to 6
-
4710000780 ConnectorConnector
-
5278001014 Female TerminalFemale Terminal
-
6278001013 Wire SealWire Seal
-
7710000905 Switch SupportSwitch Support
-
8710000367 Emergency Switch. Includes 8 to 9Emergency Switch. Includes 8 to 9
-
9710000661 Emergency Switch LightEmergency Switch Light
-
10710001061 SpeedometerSpeedometer
-
10a415128938 Replacement Lens, SpeedometerReplacement Lens, Speedometer
-
11710000861 RH Headlamp. Includes 11 to 13RH Headlamp. Includes 11 to 13
-
12710000923 Headlamp HarnessHeadlamp Harness
-
13710000871 Bulb, 12 V / 35/35 WBulb, 12 V / 35/35 W
-
14710000862 LH Headlamp. Includes 14 to 16LH Headlamp. Includes 14 to 16
-
15710000923 Headlamp HarnessHeadlamp Harness
-
16710000871 Bulb, 12 V / 35/35 WBulb, 12 V / 35/35 W
-
17710000760 Tail Light. Includes 17 to 18Tail Light. Includes 17 to 18
-
18410504100 Tail Light BulbTail Light Bulb
-
19232061600 Hex Nut M6Hex Nut M6
-
20234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
21705002377 SupportSupport
-
22207161260 Hex Cap Screw M6 X 12Hex Cap Screw M6 X 12
-
23710000983 HornHorn
-
24232561600 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
25233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
26207664544 Flanged Hex Screw M6 X 45Flanged Hex Screw M6 X 45
-
28710000978 BracketBracket
-
29710000546 Flasher. Includes 29 to 30Flasher. Includes 29 to 30
-
31710000547 Flasher. Includes 31 to 32Flasher. Includes 31 to 32
-
33710000765 Protection CapProtection Cap
-
34710000814 Front Fender HarnessFront Fender Harness
-
35207664544 Flanged Hex Screw M6 X 45Flanged Hex Screw M6 X 45
-
36233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
37710001014 RH Flasher BracketRH Flasher Bracket
-
38710001016 LH Flasher BracketLH Flasher Bracket
-
39710000546 Flasher. Includes 39 to 40Flasher. Includes 39 to 40
-
41710000547 Flasher. Includes 41 to 42Flasher. Includes 41 to 42
-
43710000775 ReflectorReflector
-
44293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
45710000765 Protection CapProtection Cap
-
46710001032 Rear Fender HarnessRear Fender Harness
