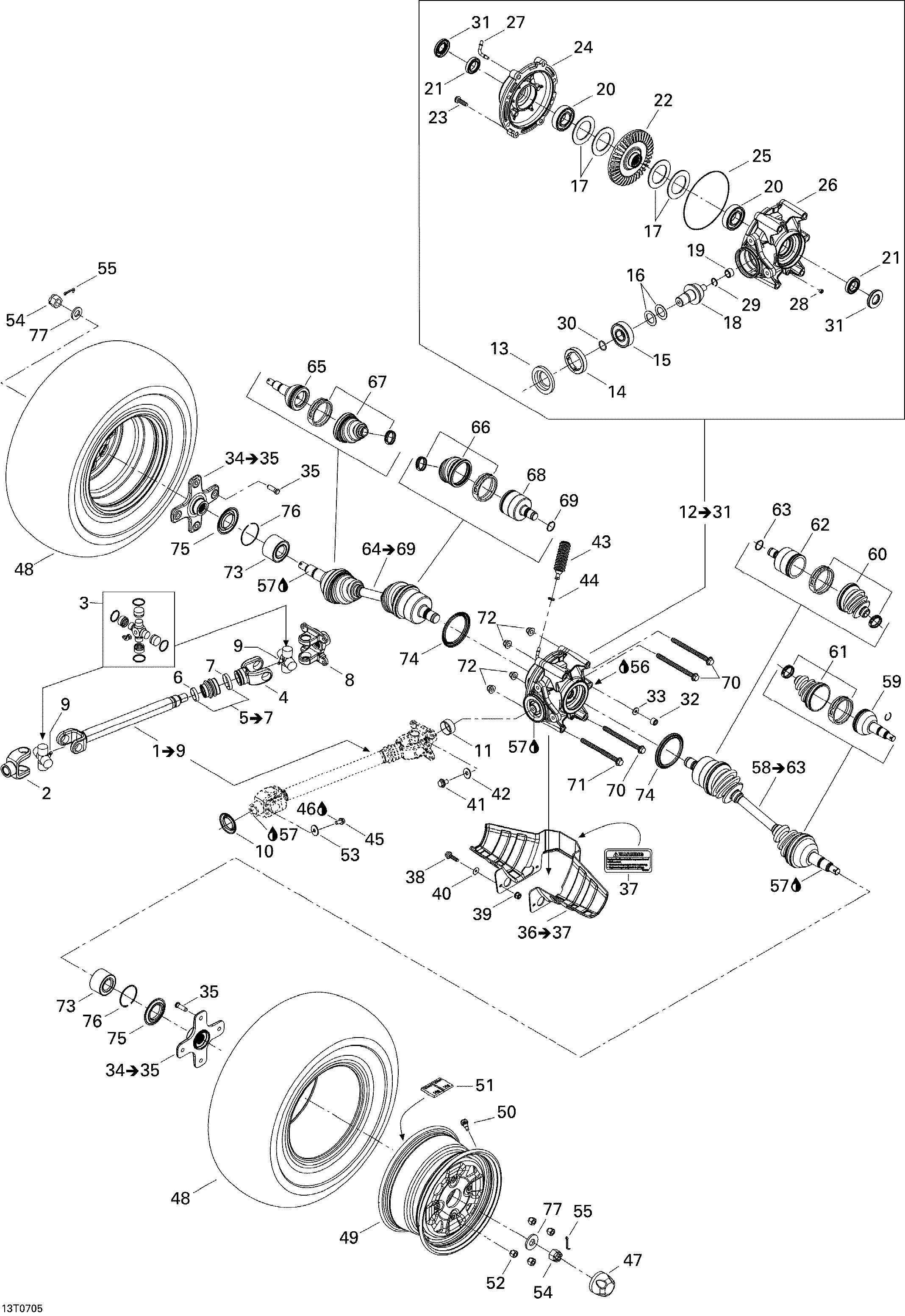

08- Drive System, Rear STD для BRP Outlander MAX 800 STD 4 X 4 - 2007
-
№АртикулНазвание
-
1705500863 Drive Axle Ass'y. Includes 1 to 9Drive Axle Ass'y. Includes 1 to 9
-
3703000022 Unit Pack KitUnit Pack Kit
-
5703500255 Rubber Boot KitRubber Boot Kit
-
6705400148 CollarCollar
-
7293650138 Oetiker ClampOetiker Clamp
-
8705500526 Disc JointDisc Joint
-
9705500841 Grease FittingGrease Fitting
-
10705500678 ProtectorProtector
-
11705400036 Wear RingWear Ring
-
12705500822 Differential. Includes 12 to 31Differential. Includes 12 to 31
-
13705400027 Oil SealOil Seal
-
14705500842 NutNut
-
15705500260 Ball BearingBall Bearing
-
16703500049 Pinion Shim KitPinion Shim Kit
-
17703500548 Differential Shim KitDifferential Shim Kit
-
18705500268 Gear, 10 TeethGear, 10 Teeth
-
19705500261 Needle BearingNeedle Bearing
-
20705500749 Ball BearingBall Bearing
-
21705500750 Ball BearingBall Bearing
-
22705500775 Gear, 36 ToothGear, 36 Tooth
-
23705500264 ScrewScrew
-
24705500697 Rear Differential CoverRear Differential Cover
-
25705500265 SealSeal
-
26705500843 Rear CoverRear Cover
-
27705500262 Vent ValveVent Valve
-
28705500245 Drain PlugDrain Plug
-
29705500269 Retaining RingRetaining Ring
-
30705500267 O-RingO-Ring
-
31705500751 Oil SealOil Seal
-
32705500504 Fill Level PlugFill Level Plug
-
33705500506 Copper WasherCopper Washer
-
34705500596 Wheel Hub Ass'y. Includes 34 to 35Wheel Hub Ass'y. Includes 34 to 35
-
35250300020 Wheel StudWheel Stud
-
36703500289 Protector Kit. Includes 36 to 37Protector Kit. Includes 36 to 37
-
37704900009 Warning Label, HitchWarning Label, Hitch
-
38207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
39233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
40391302000 Flat WasherFlat Washer
-
41250000060 Flanged Screw M10 X 16, Scotch GripFlanged Screw M10 X 16, Scotch Grip
-
42250200014 Flat WasherFlat Washer
-
43705400552 Rubber BellowRubber Bellow
-
44293650042 Oetiker ClampOetiker Clamp
-
45250000247 Flanged Hex Screw M10 X 16Flanged Hex Screw M10 X 16
-
46293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
47705400012 Wheel Cap. STDWheel Cap. STD
-
48705500685 Rear Tire. STDRear Tire. STD
-
49705500686 Rear Rim, Gray. STDRear Rim, Gray. STD
-
50705400193 Rim ValveRim Valve
-
51705500824 Adhesive Weight, 1/2 OzAdhesive Weight, 1/2 Oz
-
52250100042 Wheel Nut. STDWheel Nut. STD
-
53250200014 Flat WasherFlat Washer
-
54250100047 Hex Castellated Nut M18Hex Castellated Nut M18
-
55250400016 Cotter PinCotter Pin
-
56293600011 Pump Oil, 75w90, 12 X 6 OzPump Oil, 75w90, 12 X 6 Oz
-
57293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
58705500726 LH Cv Joint. Includes 58 to 63LH Cv Joint. Includes 58 to 63
-
59705500728 Cv JointCv Joint
-
60705500730 Differential Boot KitDifferential Boot Kit
-
61705500731 Wheel Boot KitWheel Boot Kit
-
62705500729 Plunging JointPlunging Joint
-
63705500845 CirclipCirclip
-
64705500727 RH Cv Joint. Includes 64 to 69RH Cv Joint. Includes 64 to 69
-
65705500728 Cv JointCv Joint
-
66705500730 Differential Boot KitDifferential Boot Kit
-
67705500731 Wheel Boot KitWheel Boot Kit
-
68705500729 Plunging JointPlunging Joint
-
69705500845 CirclipCirclip
-
70230603046 Flanged Hex Screw, M10 X 130Flanged Hex Screw, M10 X 130
-
71230603546 Hex Flanged Screw M10 X 135Hex Flanged Screw M10 X 135
-
72233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
73293350040 Cone BearingCone Bearing
-
74705500725 Wear SleveWear Sleve
-
75705500564 Wear SleeveWear Sleeve
-
76293370019 CirclipCirclip
-
77250200049 Spring WasherSpring Washer
