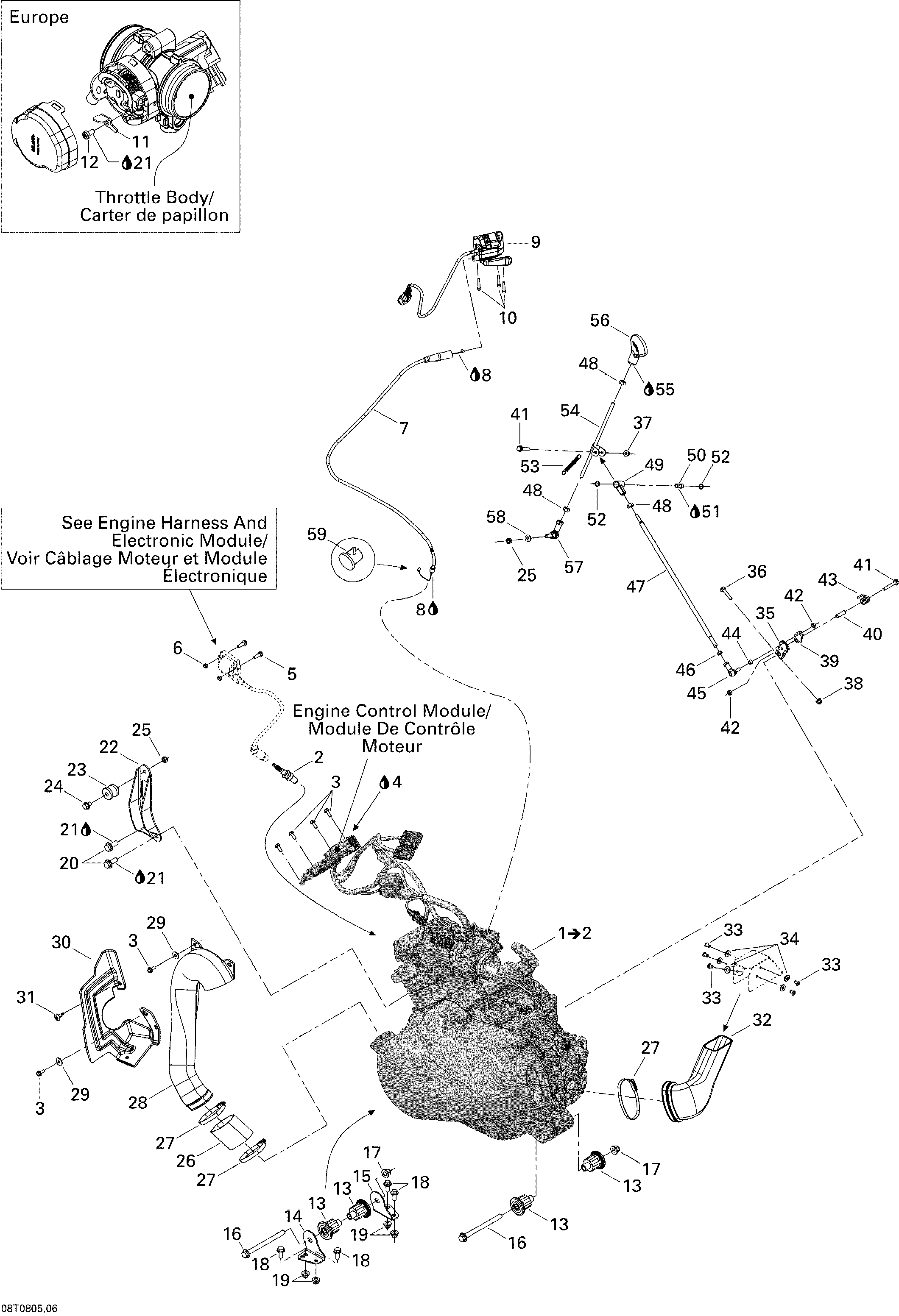

01- Engine And Engine Support для BRP Outlander 400 EFI XT - 2008
-
№АртикулНазвание
-
1707000538 Engine Rotax 4 Stroke. Includes 1 to 2Engine Rotax 4 Stroke. Includes 1 to 2
-
1707000637 Engine Rotax 4 Stroke. Includes 1 to 2, EuropeEngine Rotax 4 Stroke. Includes 1 to 2, Europe
-
2707000246 Spark Plug, NGK DCP-R8ESpark Plug, NGK DCP-R8E
-
3210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
5207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
6232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
7707000539 Throttle CableThrottle Cable
-
8293600041 Cable Lubricant, 400 GCable Lubricant, 400 G
-
9707000595 Throttle HandleThrottle Handle
-
10205052588 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
11707000658 Speed Limiter. EuropeSpeed Limiter. Europe
-
12250000332 Screw M4 X 8. EuropeScrew M4 X 8. Europe
-
13707000655 Anti-vibration PadAnti-vibration Pad
-
14707000364 Engine Bracket, BlackEngine Bracket, Black
-
15707000396 Engine Bracket, BlackEngine Bracket, Black
-
16230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
17233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
18207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
21293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
22707000224 Upper Engine BracketUpper Engine Bracket
-
23274000839 Rubber IsolatorRubber Isolator
-
24207581046 Flanged Screw M8 x 10 (Scotch Grip)Flanged Screw M8 x 10 (Scotch Grip)
-
25232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
26707000154 Flexible AdaptorFlexible Adaptor
-
27293650091 Norma ClampNorma Clamp
-
28707000540 Air IntakeAir Intake
-
29250200082 Flat WasherFlat Washer
-
30707000697 CVT Water DeflectorCVT Water Deflector
-
31414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
32707000541 Air OutletAir Outlet
-
33390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
34234051410 Flat Washer M5Flat Washer M5
-
35707000503 LeverLever
-
36207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
37233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
38233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
39707000507 Pivot PlatePivot Plate
-
40293900079 BushingBushing
-
41207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
42232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
43707000310 SpringSpring
-
44293900029 BushingBushing
-
45707000545 LH Ball JointLH Ball Joint
-
46232066414 LH Hex. Nut M6LH Hex. Nut M6
-
47707000567 Threaded RodThreaded Rod
-
48232081414 Hex. Nut M8Hex. Nut M8
-
49707000568 PivotPivot
-
50293900075 BushingBushing
-
51293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
52414583300 O-RingO-Ring
-
53707000569 SpringSpring
-
54707000570 Arm LeverArm Lever
-
55293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
56707000284 Lever HandleLever Handle
-
57707000546 RH Ball JointRH Ball Joint
-
58234081410 Flat Washer 8 mmFlat Washer 8 mm
-
59707000434 Cable GuideCable Guide
