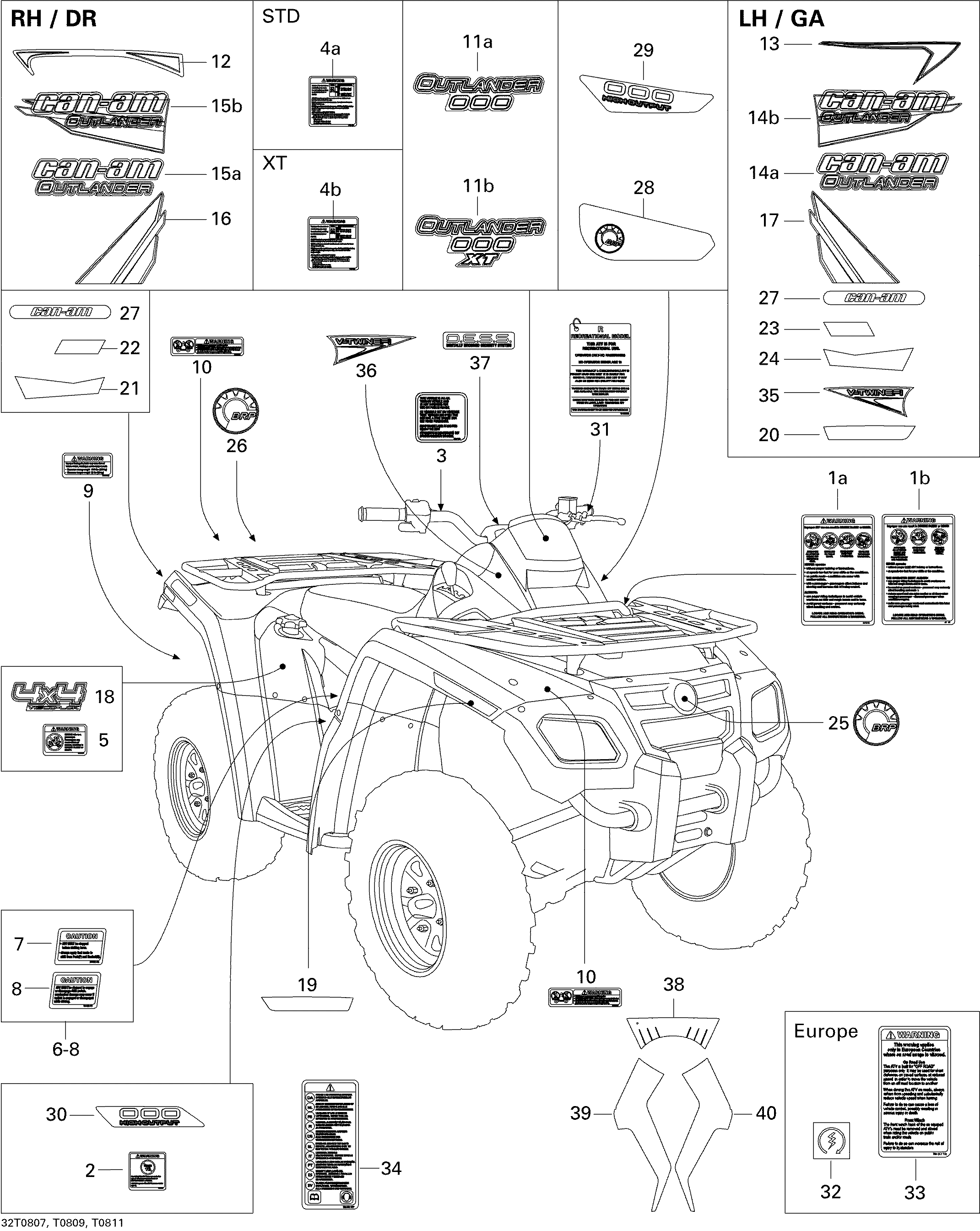

09- Decals STD для BRP Outlander 500 STD - 2008
-
№АртикулНазвание
-
1a704900112 Warning Label, Death And Injuries. Canada/USAWarning Label, Death And Injuries. Canada/USA
-
1b704901440 Warning Label, Death And Injuries. EuropeWarning Label, Death And Injuries. Europe
-
2704900011 Warning Label, Under 16 Years OldWarning Label, Under 16 Years Old
-
3704901438 Transport Canada Label. Canada/USATransport Canada Label. Canada/USA
-
3704901438 Transport Canada Label. InternationalTransport Canada Label. International
-
4a704901275 Warning Label, Tire Pressure. STDWarning Label, Tire Pressure. STD
-
5704900005 Warning Label, PassengerWarning Label, Passenger
-
6704900434 Caution Label, Lever And 4wd Switch. Canada/USACaution Label, Lever And 4wd Switch. Canada/USA
-
6704900434 Caution Label, Lever And 4wd Switch. InternationalCaution Label, Lever And 4wd Switch. International
-
6704900470 Caution Label, Shifting Lever. EuropeCaution Label, Shifting Lever. Europe
-
7704900470 Caution Label, Shifting LeverCaution Label, Shifting Lever
-
7704900470 Caution Label, Shifting LeverCaution Label, Shifting Lever
-
8704900471 Caution Label, 4wd SwitchCaution Label, 4wd Switch
-
8704900471 Caution Label, 4wd SwitchCaution Label, 4wd Switch
-
9704901091 CE Warning Label. EuropeCE Warning Label. Europe
-
9704901123 Warning Decal, Trailer. Canada/USAWarning Decal, Trailer. Canada/USA
-
9704901123 Warning Decal, Trailer. InternationalWarning Decal, Trailer. International
-
10704901089 Warning Label, LoadWarning Label, Load
-
11a704901230 Console 500 Decal. STDConsole 500 Decal. STD
-
12704901243 RH Panel DecalRH Panel Decal
-
13704901244 LH Panel DecalLH Panel Decal
-
14a704901216 LH & RH Decal. CamoLH & RH Decal. Camo
-
14b704901360 LH Front DecalLH Front Decal
-
15a704901216 LH & RH Decal. CamoLH & RH Decal. Camo
-
15b704901361 RH Front DecalRH Front Decal
-
16704901238 LH Rear Lateral DecalLH Rear Lateral Decal
-
17704901239 RH Rear Lateral DecalRH Rear Lateral Decal
-
18704901219 4x4 Decal4x4 Decal
-
19704901422 RH Reflector (Long)RH Reflector (Long)
-
20704901421 LH Reflector (Long)LH Reflector (Long)
-
21704901426 RH Rear Reflector. Canada/USARH Rear Reflector. Canada/USA
-
22704901424 RH Rear ReflectorRH Rear Reflector
-
23704901423 LH Rear ReflectorLH Rear Reflector
-
24704901425 LH Rear Reflector. Canada/USALH Rear Reflector. Canada/USA
-
25219902469 BRP Logo, 68 mmBRP Logo, 68 mm
-
26219902672 BRP Logo 68 mmBRP Logo 68 mm
-
27704901271 Signature LabelSignature Label
-
27704901273 Signature Label. CamoSignature Label. Camo
-
28704900963 CVT DecalCVT Decal
-
29704901205 Cvt 500 Decal. 500Cvt 500 Decal. 500
-
30704901242 Engine Cover Decal. 500Engine Cover Decal. 500
-
31704900930 Warning Label, UtilityWarning Label, Utility
-
32704900705 Symbol Label, Start. EuropeSymbol Label, Start. Europe
-
33704901444 Europe Warning Label. EuropeEurope Warning Label. Europe
-
34704901177 International Decal, Multilingual. EuropeInternational Decal, Multilingual. Europe
-
34704901177 International Decal, Multilingual. InternationalInternational Decal, Multilingual. International
-
35704901115 LH Console DecalLH Console Decal
-
36704901116 RH Console DecalRH Console Decal
-
37704901117 DESS DecalDESS Decal
-
38704901475 Central Protector DecalCentral Protector Decal
-
39704901477 Side Protector Decal, LHSide Protector Decal, LH
-
40704901479 Side Protector Decal, RHSide Protector Decal, RH
