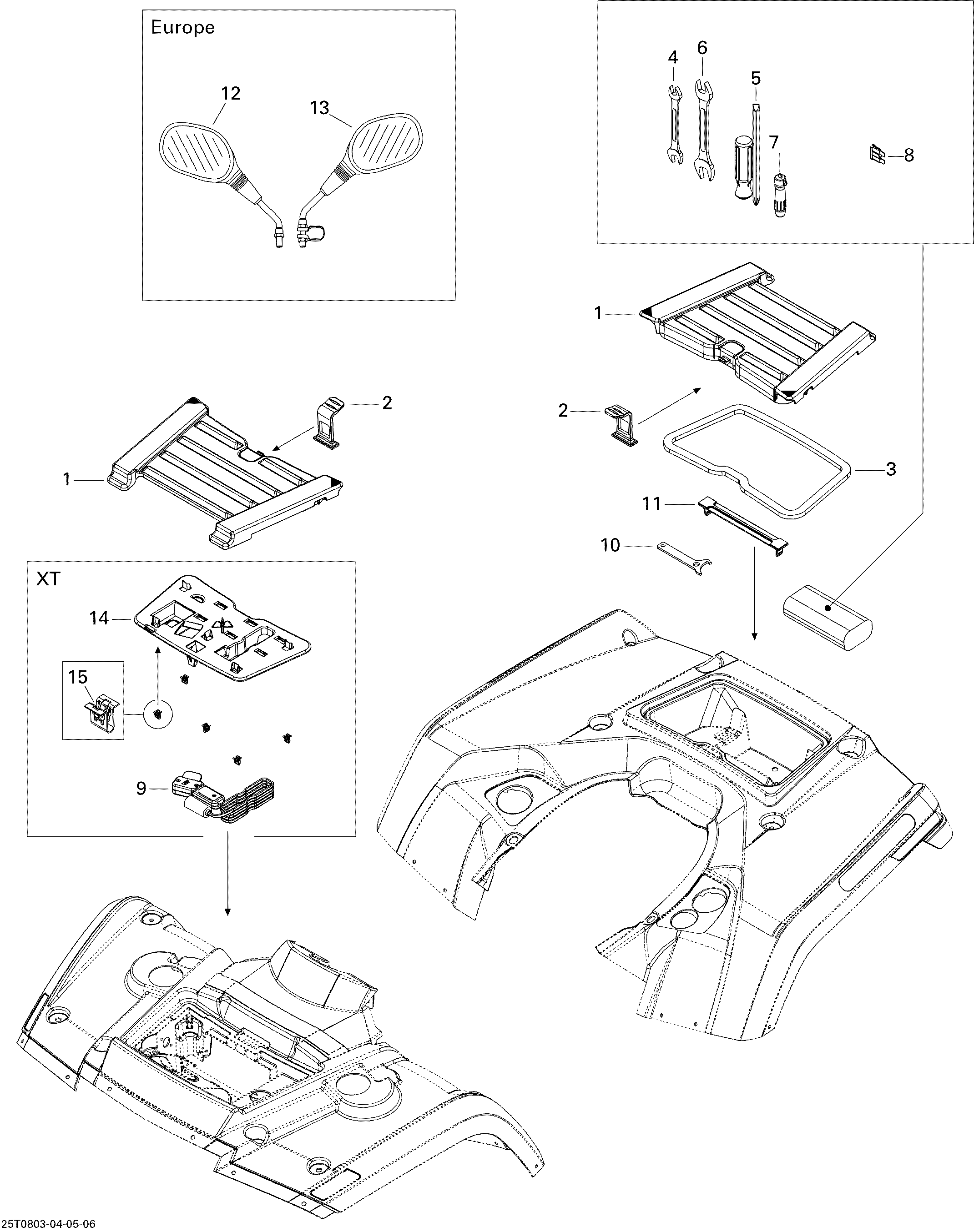

09- Front and Rear Trays STD для BRP Outlander MAX 400 EFI STD - 2008
-
№АртикулНазвание
-
1705001853 Storage CoverStorage Cover
-
2708200061 Storage Cover LatchStorage Cover Latch
-
3293250192 Neoprene SealNeoprene Seal
-
4529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
5529000004 Driver ScrewDriver Screw
-
6529000003 Fork Wrench 15/17 mmFork Wrench 15/17 mm
-
7704700003 Pressure GaugePressure Gauge
-
8410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
8409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
8278000343 Fuse, 15 AmperesFuse, 15 Amperes
-
10529000035 Adjustement WrenchAdjustement Wrench
-
11708200062 Tool Kit LatchTool Kit Latch
-
12709400406 LH Mirror. EuropeLH Mirror. Europe
-
13709400407 RH Mirror. EuropeRH Mirror. Europe
