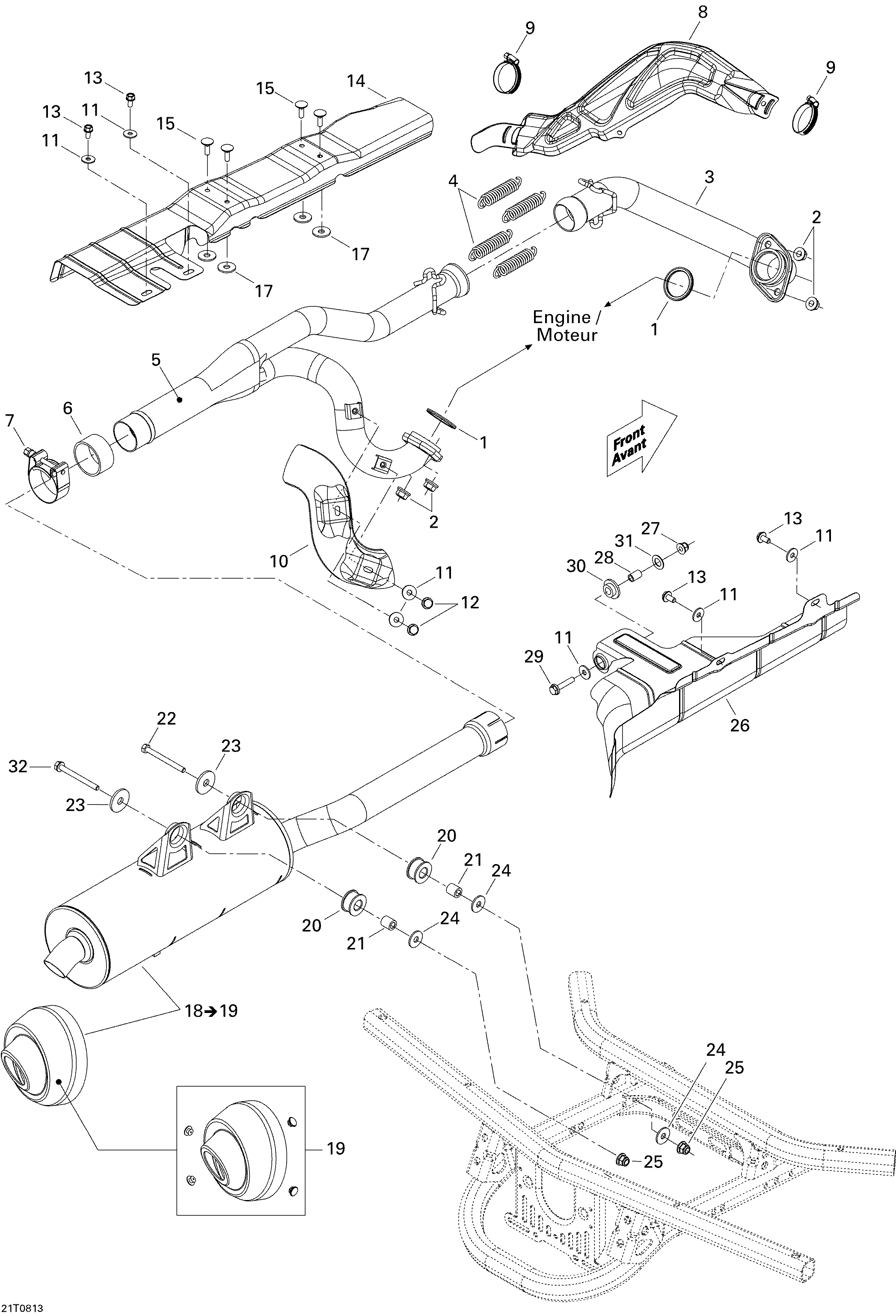

01- Exhaust System для BRP Outlander MAX 800 LTD - 2008
-
№АртикулНазвание
-
1707600317 GasketGasket
-
2233081416 Hex Flanged Nut M8Hex Flanged Nut M8
-
3707600529 Front Tuned PipeFront Tuned Pipe
-
4415107100 SpringSpring
-
5707600530 Rear Tuned PipeRear Tuned Pipe
-
6707600430 Pipe GasketPipe Gasket
-
7293650177 Norma Gear ClampNorma Gear Clamp
-
8707600342 Front Heat ShieldFront Heat Shield
-
9293650098 Norma Gear ClampNorma Gear Clamp
-
10707600318 Tuned Pipe ProtectorTuned Pipe Protector
-
11391302000 Flat WasherFlat Washer
-
12250000073 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
13210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
14707600437 Heat ShieldHeat Shield
-
15390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
17517124300 WasherWasher
-
18707600502 Muffler. Includes 18 to 19Muffler. Includes 18 to 19
-
18707600503 Muffler. Europe, Includes 18 to 19Muffler. Europe, Includes 18 to 19
-
19703500701 Muffler Cap KitMuffler Cap Kit
-
20707600077 RubberRubber
-
21293900082 BushingBushing
-
22207087044 Hex Screw M8 X 70Hex Screw M8 X 70
-
23503032900 WasherWasher
-
24234082410 Flat Washer 8 mmFlat Washer 8 mm
-
25233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
26707600284 Muffler ProtectorMuffler Protector
-
27233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
28293900078 SleeveSleeve
-
29207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
30709200115 BushingBushing
-
31503175800 WasherWasher
-
32207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
