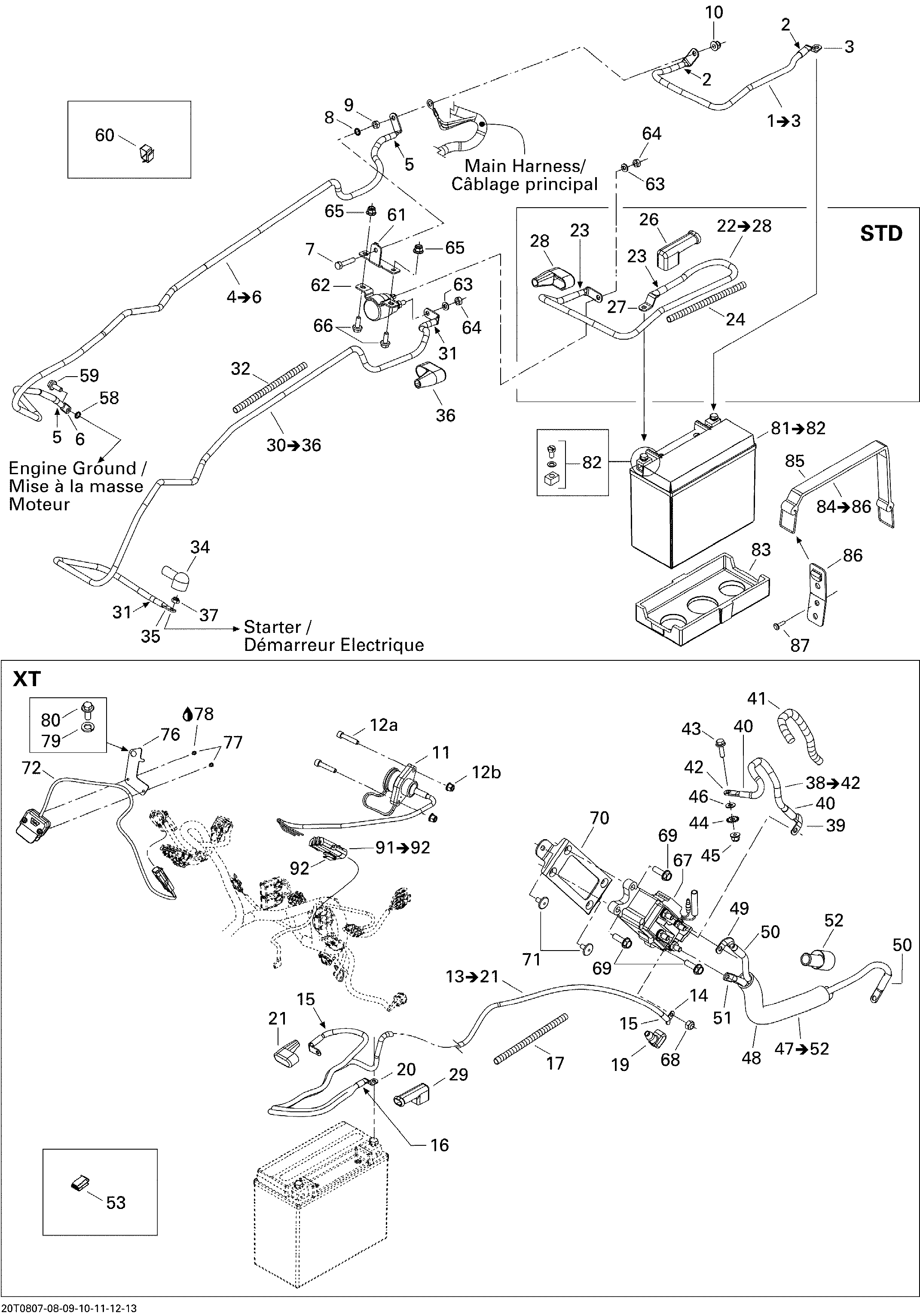

10- Electrical System STD для BRP Outlander MAX 800 STD - 2008
-
№АртикулНазвание
-
1710000830 Ground Cable, Battery/frame. Includes 1 to 3Ground Cable, Battery/frame. Includes 1 to 3
-
2710000483 Shrink TubingShrink Tubing
-
3710000518 Open BarrelOpen Barrel
-
4710000844 Ground Cable. Includes 4 to 6Ground Cable. Includes 4 to 6
-
5710000483 Shrink TubingShrink Tubing
-
6710000530 Open BarrelOpen Barrel
-
7207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
8234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
9232061414 Hex Nut M6Hex Nut M6
-
10233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
22710000834 Positive Cable. Includes 22 to 28, STDPositive Cable. Includes 22 to 28, STD
-
23710000483 Shrink Tubing. STDShrink Tubing. STD
-
24710000497 Protector Tube, 9 mm. STDProtector Tube, 9 mm. STD
-
26710000516 Protector Cap. STDProtector Cap. STD
-
27710000518 Open Barrel. STDOpen Barrel. STD
-
28710000902 Protector Cap. STDProtector Cap. STD
-
29710000516 Protector Cap. XTProtector Cap. XT
-
30710000903 Positive Cable, Starter Relay/starter. Includes 30 to 36Positive Cable, Starter Relay/starter. Includes 30 to 36
-
31710000483 Shrink TubingShrink Tubing
-
32710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
34710000526 Protector CapProtector Cap
-
35710000530 Open BarrelOpen Barrel
-
36710000902 Protector CapProtector Cap
-
37232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
58234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
59207561644 Hex Flanged Screw M6 X 16, Scotch GripHex Flanged Screw M6 X 16, Scotch Grip
-
60414227300 ClipClip
-
61710001260 Solenoid SupportSolenoid Support
-
62710001364 Starter RelayStarter Relay
-
63234161601 Lock Washer Helical M6Lock Washer Helical M6
-
64232061600 Hex Nut M6Hex Nut M6
-
65233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
66207661244 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
81410301203 Battery, 18 Amperes. Includes 81 to 82Battery, 18 Amperes. Includes 81 to 82
-
82295500849 Battery Fastener KitBattery Fastener Kit
-
83710000279 Insulator PadInsulator Pad
-
84710001033 Strap Ass'y. Includes 84 to 86Strap Ass'y. Includes 84 to 86
-
85293850097 Rubber StrapRubber Strap
-
86293850030 Strap ClipStrap Clip
-
87390402400 Pop Rivet 3/16''Pop Rivet 3/16''
