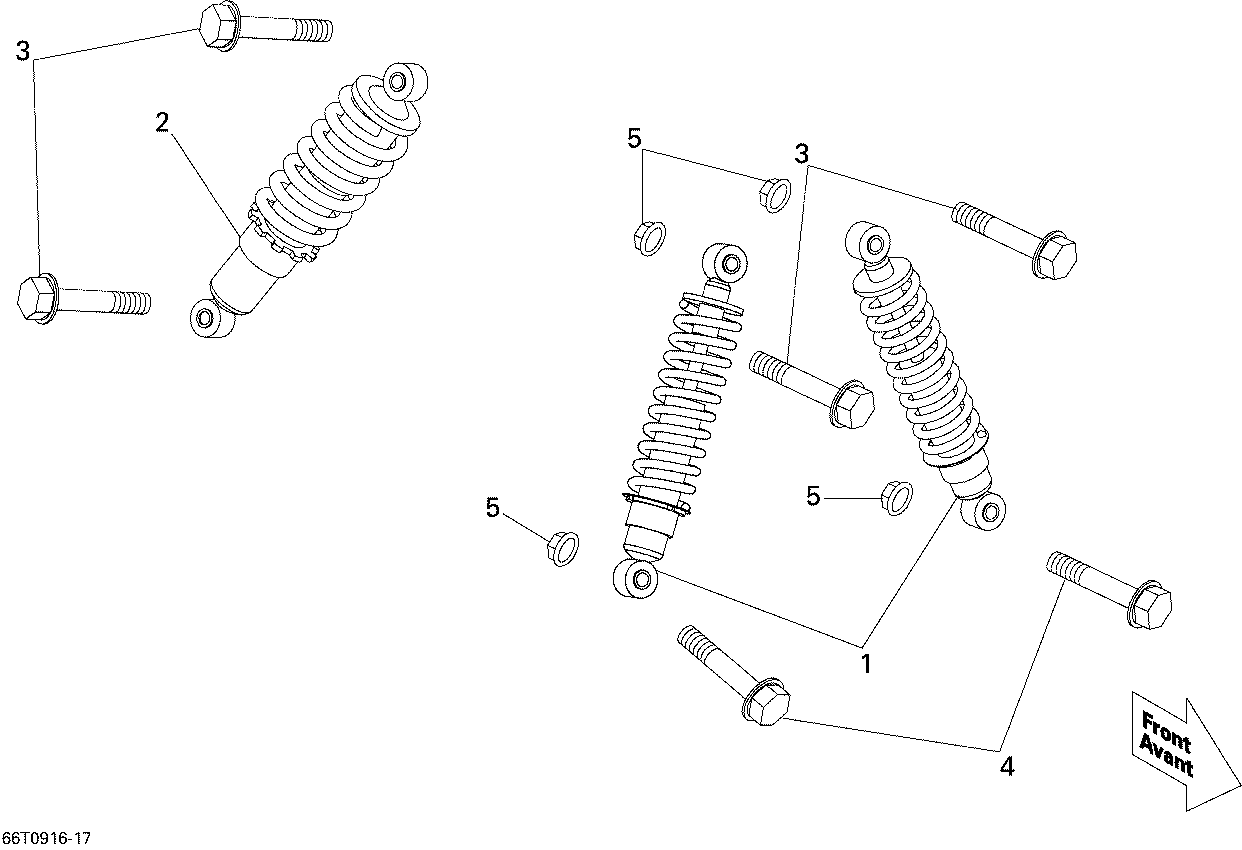

07- Shocks для BRP DS 90 - 2009
-
№АртикулНазвание
-
1V52500DGF010YE Shock Absorber FrontShock Absorber Front
-
2V52400DGF010YE Shock Absorber RearShock Absorber Rear
-
3V9600010040 Hexagonal Flanged ScrewHexagonal Flanged Screw
-
4V9200010040 Hexagonal ScrewHexagonal Screw
-
5A9035010000 Nut Nylon M10Nut Nylon M10
