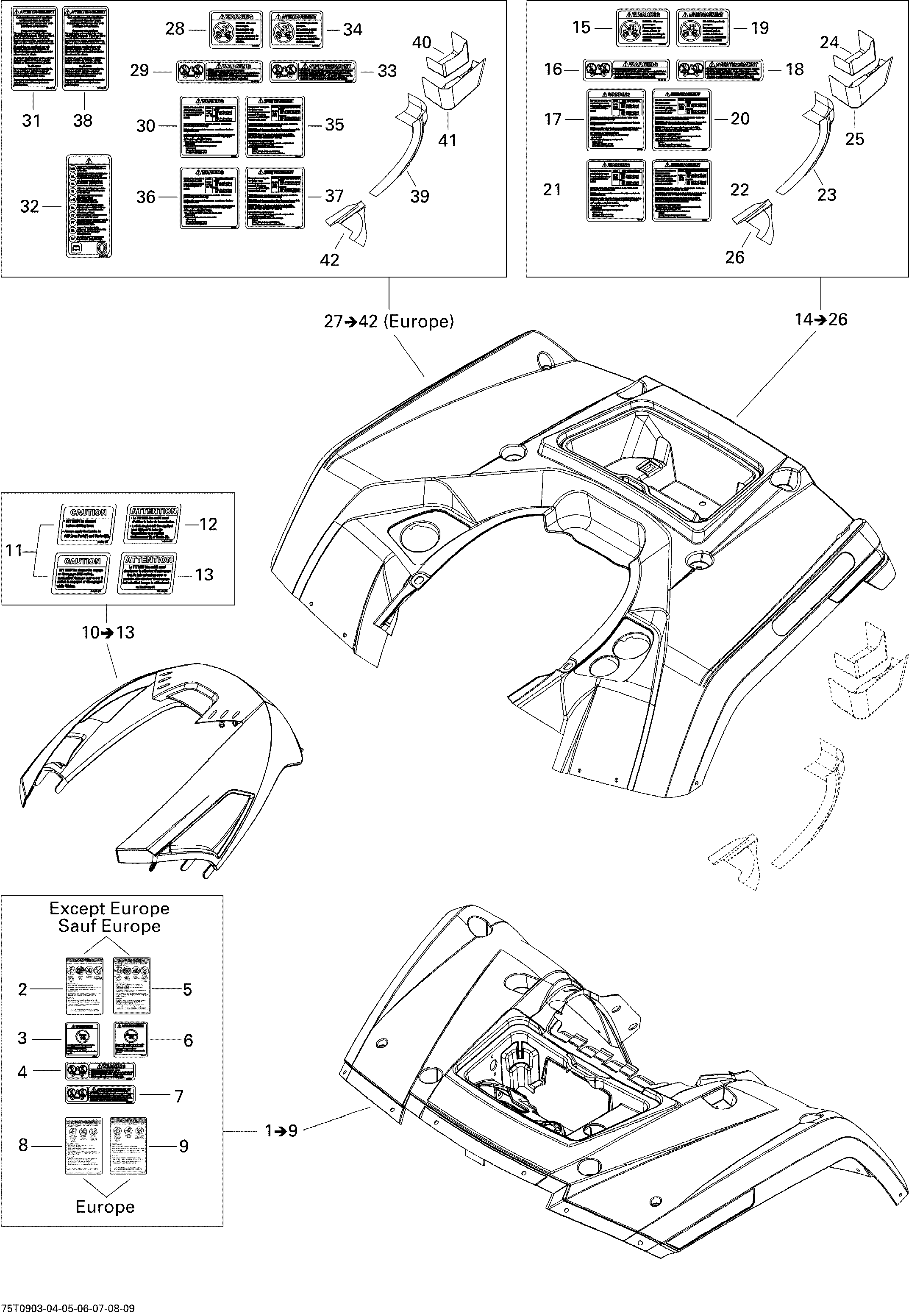

09- Fender And Central Panel Kit STD для BRP Outlander 650 EFI - 2009
-
№АртикулНазвание
-
1715000809 Front Fender Kit, Red. Includes 1 to 9, Viper RedFront Fender Kit, Red. Includes 1 to 9, Viper Red
-
1715000811 Front Fender Kit, Yellow. Includes 1 to 9, YellowFront Fender Kit, Yellow. Includes 1 to 9, Yellow
-
2704901878 Warning Decal, Death And Injuries. English Version, Except EuropeWarning Decal, Death And Injuries. English Version, Except Europe
-
3704900011 Warning Decal, Under 16 Years Old. English VersionWarning Decal, Under 16 Years Old. English Version
-
4704901089 Warning Decal, Load. English VersionWarning Decal, Load. English Version
-
5704900002 Warning Label, Death And Injuries. French Version, Except EuropeWarning Label, Death And Injuries. French Version, Except Europe
-
6704900012 Warning Label, Under 16 Years Old. French VersionWarning Label, Under 16 Years Old. French Version
-
7704901090 Warning Label, Load. French VersionWarning Label, Load. French Version
-
8704901441 Warning Label, Death And Injuries. French Version, EuropeWarning Label, Death And Injuries. French Version, Europe
-
9704901875 Warning Decal, Death And Injuries. English Version, EuropeWarning Decal, Death And Injuries. English Version, Europe
-
10715000824 Central Panel Kit, Black. Includes 10 to 13Central Panel Kit, Black. Includes 10 to 13
-
10715000842 Central Panel Kit, Camo. Includes 10 to 13Central Panel Kit, Camo. Includes 10 to 13
-
11704900434 Caution Decal, Lever And 4wd Switch. English VersionCaution Decal, Lever And 4wd Switch. English Version
-
12704900475 Caution Label, Shifting Lever. French VersionCaution Label, Shifting Lever. French Version
-
13704900476 Caution Label, 4wd Switch. French VersionCaution Label, 4wd Switch. French Version
-
14715000819 Rear Fender Kit, Red. Includes 14 to 26, Viper RedRear Fender Kit, Red. Includes 14 to 26, Viper Red
-
14715000820 Rear Fender Kit, Yellow. Includes 14 to 26, YellowRear Fender Kit, Yellow. Includes 14 to 26, Yellow
-
15704900005 Warning Decal, Passenger. English VersionWarning Decal, Passenger. English Version
-
16704901089 Warning Decal, Load. English VersionWarning Decal, Load. English Version
-
17704901275 Warning Decal, Tire Pressure. English VersionWarning Decal, Tire Pressure. English Version
-
18704901090 Warning Label, Load. French VersionWarning Label, Load. French Version
-
19704900006 Warning Label, Passenger, French. French VersionWarning Label, Passenger, French. French Version
-
20704901279 Warning Label, Tire Pressure. French VersionWarning Label, Tire Pressure. French Version
-
21704901267 Warning Label, Tire Pressure. English VersionWarning Label, Tire Pressure. English Version
-
22704901278 Warning Label, Tire Pressure. French VersionWarning Label, Tire Pressure. French Version
-
23705002085 Reflective SheetReflective Sheet
-
24705002189 Reflective SheetReflective Sheet
-
25705002191 Reflective SheetReflective Sheet
-
26705002014 Reflective SheetReflective Sheet
