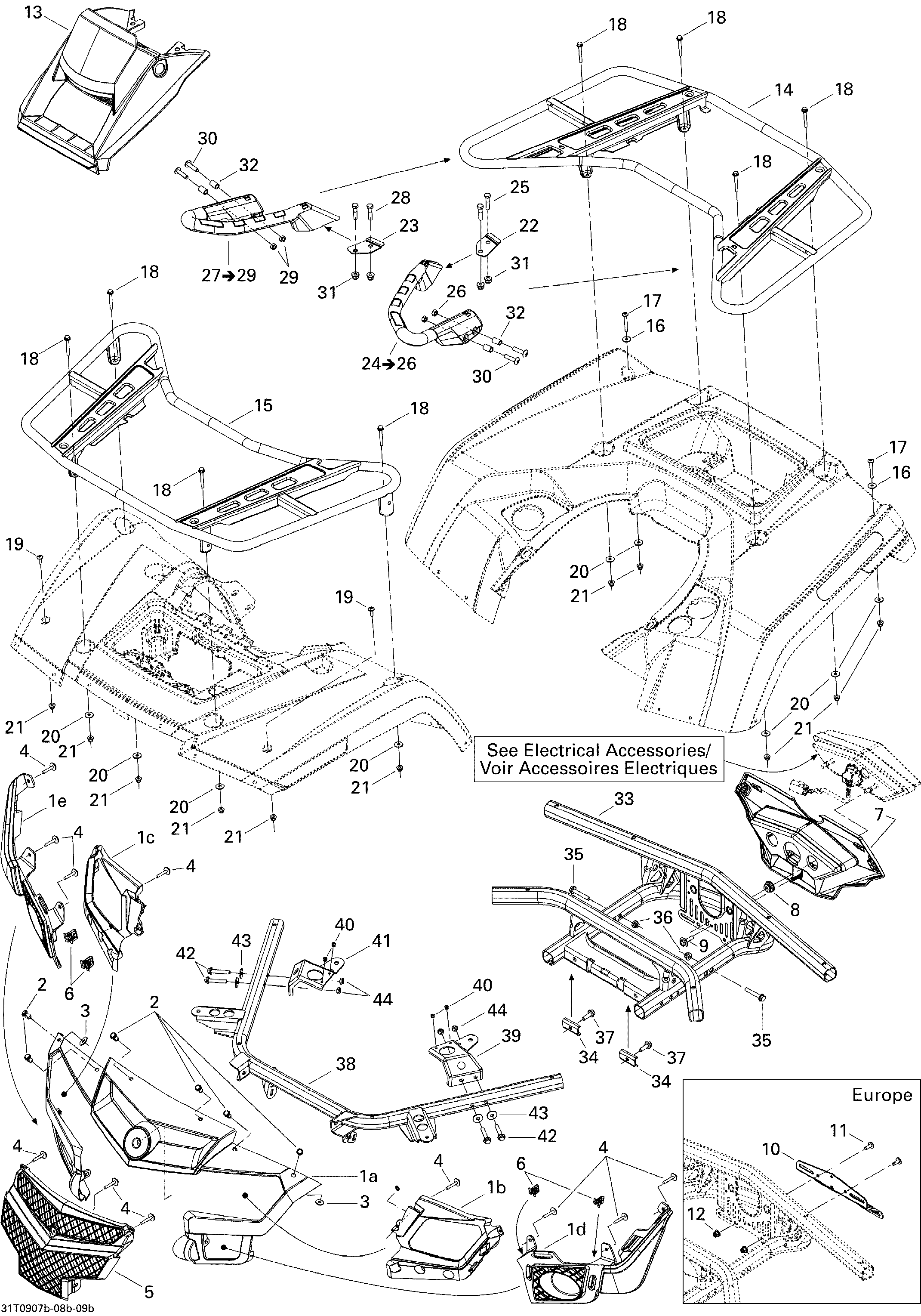

09- Body And Accessories 2, STD для BRP Outlander 800R EFI - 2009
-
№АртикулНазвание
-
1a705002778 Front Fascia, Yellow. YellowFront Fascia, Yellow. Yellow
-
1a705003078 Front Fascia, Radiant Red. Radiant RedFront Fascia, Radiant Red. Radiant Red
-
1a705003080 Front Fascia, Red. RedFront Fascia, Red. Red
-
1b705002825 LH Head Lamp SupportLH Head Lamp Support
-
1c705002826 RH Head Lamp SupportRH Head Lamp Support
-
1d705002780 LH Lower Front FaciaLH Lower Front Facia
-
1e705002781 RH Lower Front FaciaRH Lower Front Facia
-
2293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3506151252 WasherWasher
-
4250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
5705002779 Upper GrillUpper Grill
-
6517302785 ClipClip
-
7705002464 Rear FaciaRear Facia
-
8705001119 GrommetGrommet
-
9250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
13705001314 DashboardDashboard
-
14705002617 Rear Luggage RackRear Luggage Rack
-
15705002616 Front Luggage RackFront Luggage Rack
-
16250200040 Flat WasherFlat Washer
-
17250000239 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
18207065544 Hex. Screw M6 X 55Hex. Screw M6 X 55
-
19250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
20250200072 Flat WasherFlat Washer
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22705002762 LH Fixation PlateLH Fixation Plate
-
23705002760 RH Fixation PlateRH Fixation Plate
-
24705002700 LH Handle. Includes 24 to 26LH Handle. Includes 24 to 26
-
25207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
26232081494 Hex. NutHex. Nut
-
27705002699 RH Handle. Includes 27 to 29RH Handle. Includes 27 to 29
-
28207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
29232081494 Hex. NutHex. Nut
-
30250000316 Torx Truss Screw M8 X 35Torx Truss Screw M8 X 35
-
31233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
32705002153 BushingBushing
-
33705002851 SupportSupport
-
34705002668 U ReinforcementU Reinforcement
-
35207685044 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
36233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
37207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
38705003062 Front SupportFront Support
-
39705002995 LH Anchor PlateLH Anchor Plate
-
40390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
41705002997 RH Anchor PlateRH Anchor Plate
-
42207684544 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
43234082410 Flat Washer 8 mmFlat Washer 8 mm
-
44232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
