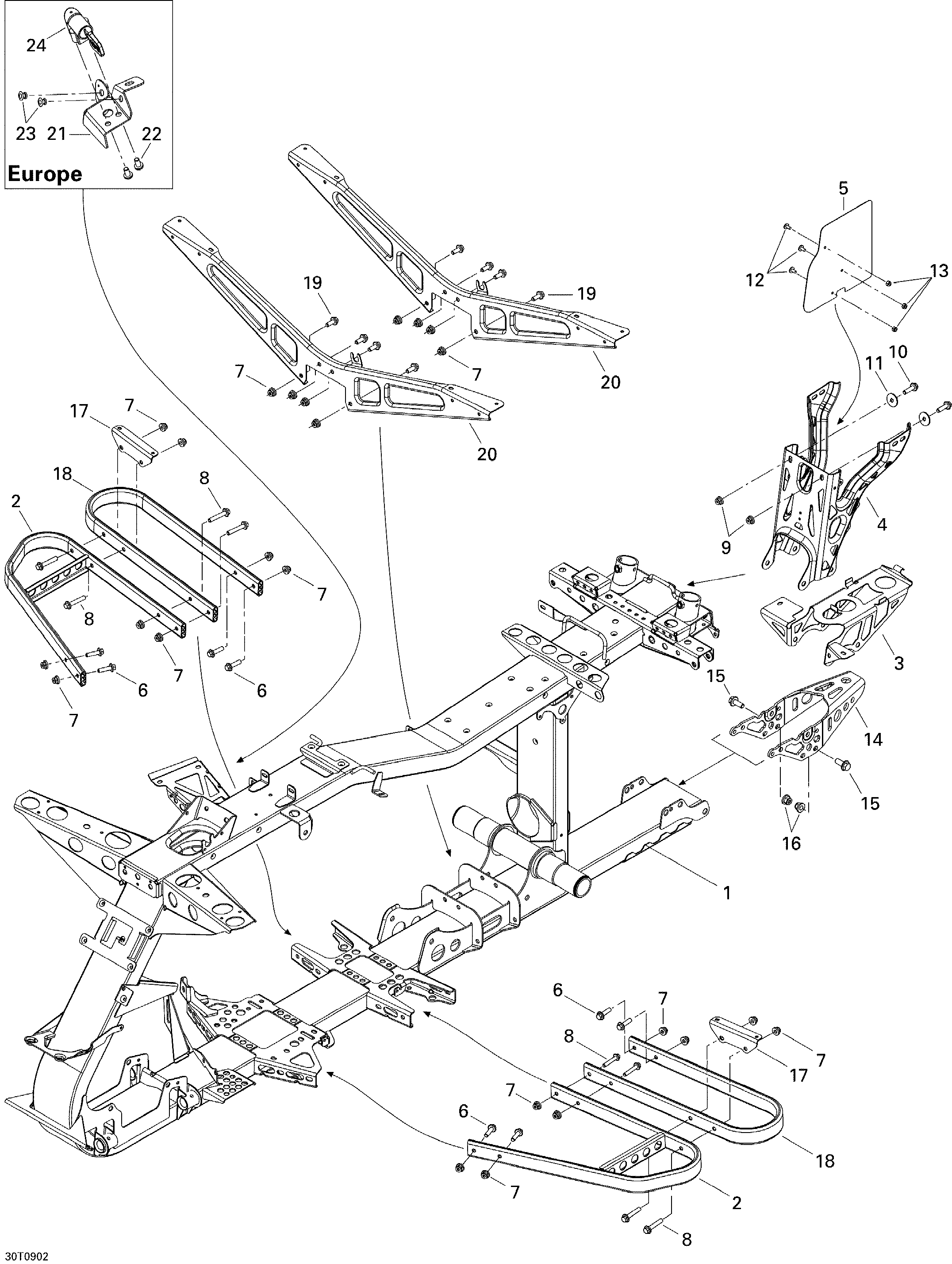

09- Frame, System для BRP Outlander Max 400 EFI - 2009
-
№АртикулНазвание
-
1705201712 Frame, BlackFrame, Black
-
2705200872 FootrestFootrest
-
3705201105 Battery Support BaseBattery Support Base
-
4705201603 Rear Battery Support, BlackRear Battery Support, Black
-
5705200936 Heat ShieldHeat Shield
-
6207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8207684544 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
9233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
10207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
11250200073 Flat WasherFlat Washer
-
12250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
13232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
14715000286 Trailer HookTrailer Hook
-
15207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
16233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
17705201535 SupportSupport
-
18705200896 Rear FootrestRear Footrest
-
19207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
20705200812 Rear Diagonal BraceRear Diagonal Brace
-
21705201707 Lock Support. EuropeLock Support. Europe
-
22205951046 Screw Socket Head, M5 X 10. EuropeScrew Socket Head, M5 X 10. Europe
-
23390402400 Pop Rivet 3/16''. EuropePop Rivet 3/16''. Europe
-
24707000666 Lock. EuropeLock. Europe
