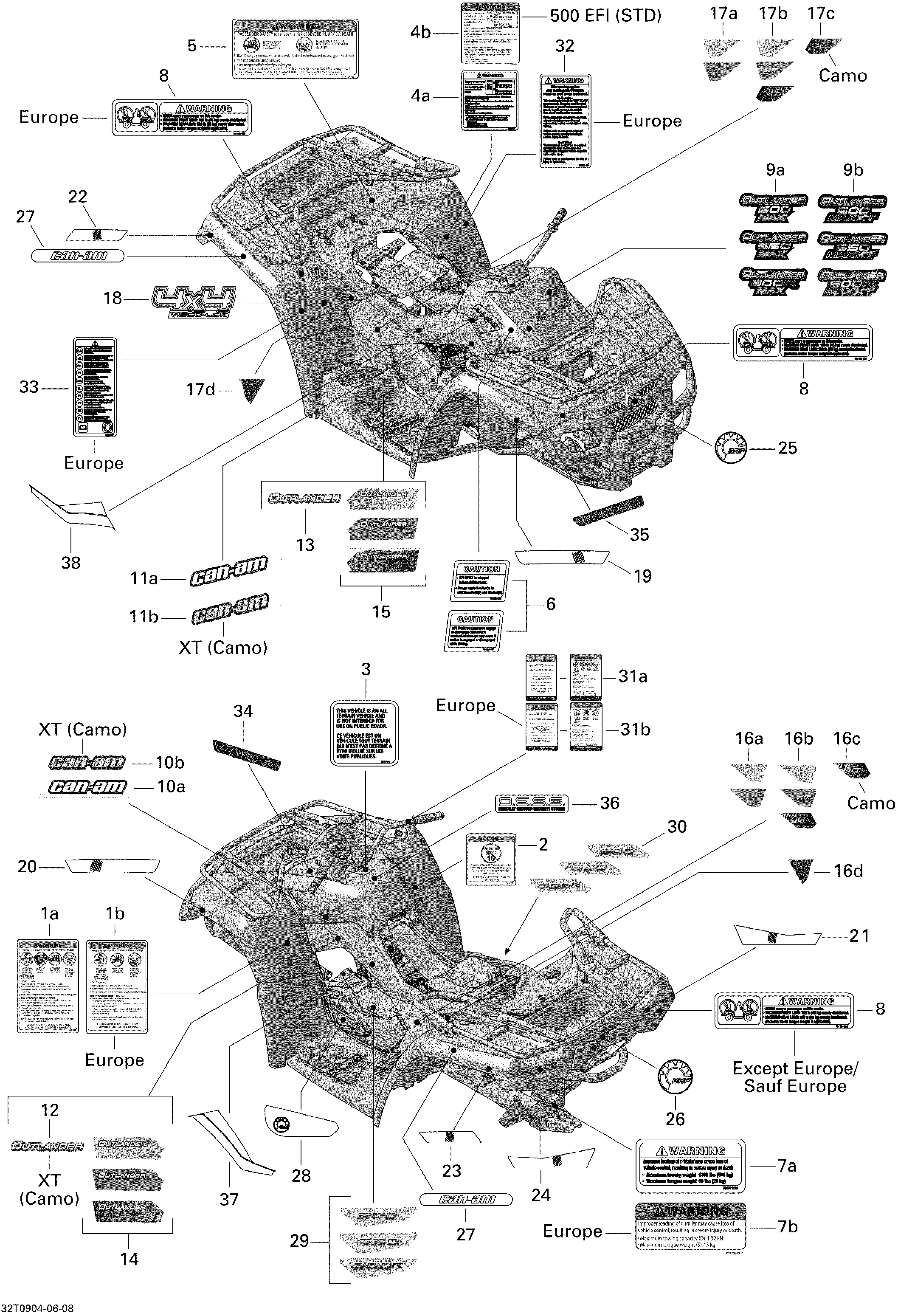

09- Decals XT для BRP Outlander Max 500 EFI XT - 2009
-
№АртикулНазвание
-
1a704901749 Warning Decal, Death And Injuries. Except EuropeWarning Decal, Death And Injuries. Except Europe
-
1b704901751 Warning Decal, Death And Injuries. EuropeWarning Decal, Death And Injuries. Europe
-
2704901753 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
3704901438 Transport Canada Label. Except EuropeTransport Canada Label. Except Europe
-
4a704901119 Warning Label, Tire PressureWarning Label, Tire Pressure
-
5704901762 Warning Decal, PassengerWarning Decal, Passenger
-
6704900434 Caution Decal, Lever And 4wd SwitchCaution Decal, Lever And 4wd Switch
-
7A704901123 Warning Decal, Trailer. Except EuropeWarning Decal, Trailer. Except Europe
-
7b704901905 Warning Decal, Maximum Towing. EuropeWarning Decal, Maximum Towing. Europe
-
8704901089 Warning Decal, LoadWarning Decal, Load
-
9b704901562 Console Decal, 500 MAX XT. 500 EFI XTConsole Decal, 500 MAX XT. 500 EFI XT
-
10a704901655 LH Center Panel Decal. STD, XTLH Center Panel Decal. STD, XT
-
10b704901660 LH Center Panel Decal. XT CamoLH Center Panel Decal. XT Camo
-
11a704901830 RH Center Panel Decal. STD, XTRH Center Panel Decal. STD, XT
-
11b704901832 RH Center Panel Decal. XT CamoRH Center Panel Decal. XT Camo
-
12704901685 LH Front Side Decal. CamoLH Front Side Decal. Camo
-
13704901833 RH Front Side Decal. CamoRH Front Side Decal. Camo
-
14704901687 LH Front Side Decal. YellowLH Front Side Decal. Yellow
-
14704901689 LH Front Side Decal. Viper RedLH Front Side Decal. Viper Red
-
14704901691 LH Front Side Decal. BlackLH Front Side Decal. Black
-
15704901686 RH Front Side Decal. YellowRH Front Side Decal. Yellow
-
15704901688 RH Front Side Decal. Viper RedRH Front Side Decal. Viper Red
-
15704901690 RH Front Side Decal. BlackRH Front Side Decal. Black
-
16b704901574 LH Side Decal. XT YellowLH Side Decal. XT Yellow
-
16b704901576 LH Side Decal. XT Viper RedLH Side Decal. XT Viper Red
-
16b704901578 LH Side Decal. XT BlackLH Side Decal. XT Black
-
16c704901581 LH Side Decal. CamoLH Side Decal. Camo
-
16d704901682 LH Rear Side Decal. CamoLH Rear Side Decal. Camo
-
17b704901573 RH Side Decal. XT YellowRH Side Decal. XT Yellow
-
17b704901575 RH Side Decal. XT Viper RedRH Side Decal. XT Viper Red
-
17b704901577 RH Side Decal. XT BlackRH Side Decal. XT Black
-
17c704901582 RH Side Decal. CamoRH Side Decal. Camo
-
17d704901683 RH Rear Side Decal. CamoRH Rear Side Decal. Camo
-
18704901219 4x4 Decal4x4 Decal
-
19704901422 RH Reflector (Long). STD, XTRH Reflector (Long). STD, XT
-
20704901421 LH Reflector (Long). STD, XTLH Reflector (Long). STD, XT
-
21704901426 RH Rear Reflector. Except EuropeRH Rear Reflector. Except Europe
-
22704901424 RH Rear Reflector. STD, XTRH Rear Reflector. STD, XT
-
23704901423 LH Rear Reflector. STD, XTLH Rear Reflector. STD, XT
-
24704901425 LH Rear Reflector. Except EuropeLH Rear Reflector. Except Europe
-
25219902469 BRP Logo, 68 mmBRP Logo, 68 mm
-
26219902672 BRP Logo 68 mmBRP Logo 68 mm
-
27704901271 Can-am LabelCan-am Label
-
27704901273 Signature Label. CamoSignature Label. Camo
-
28704900963 Decal, CVTDecal, CVT
-
29704901554 Decal, CVT 500. 500 EFIDecal, CVT 500. 500 EFI
-
30704901555 Decal, Engine Cover, 500. 500 EFIDecal, Engine Cover, 500. 500 EFI
-
31a704901863 Warning Label, General Use Model. Except EuropeWarning Label, General Use Model. Except Europe
-
31b704901865 Warning Label, General Use Model. EuropeWarning Label, General Use Model. Europe
-
32704901444 Warning Decal, Public Road Use. EuropeWarning Decal, Public Road Use. Europe
-
33704901177 International Decal, Multilingual. EuropeInternational Decal, Multilingual. Europe
-
34704901693 LH Console DecalLH Console Decal
-
35704901692 RH Console DecalRH Console Decal
-
36704901117 DESS DecalDESS Decal
-
37704901843 LH Side Protector. BlackLH Side Protector. Black
-
38704901844 RH Side Protector. BlackRH Side Protector. Black
