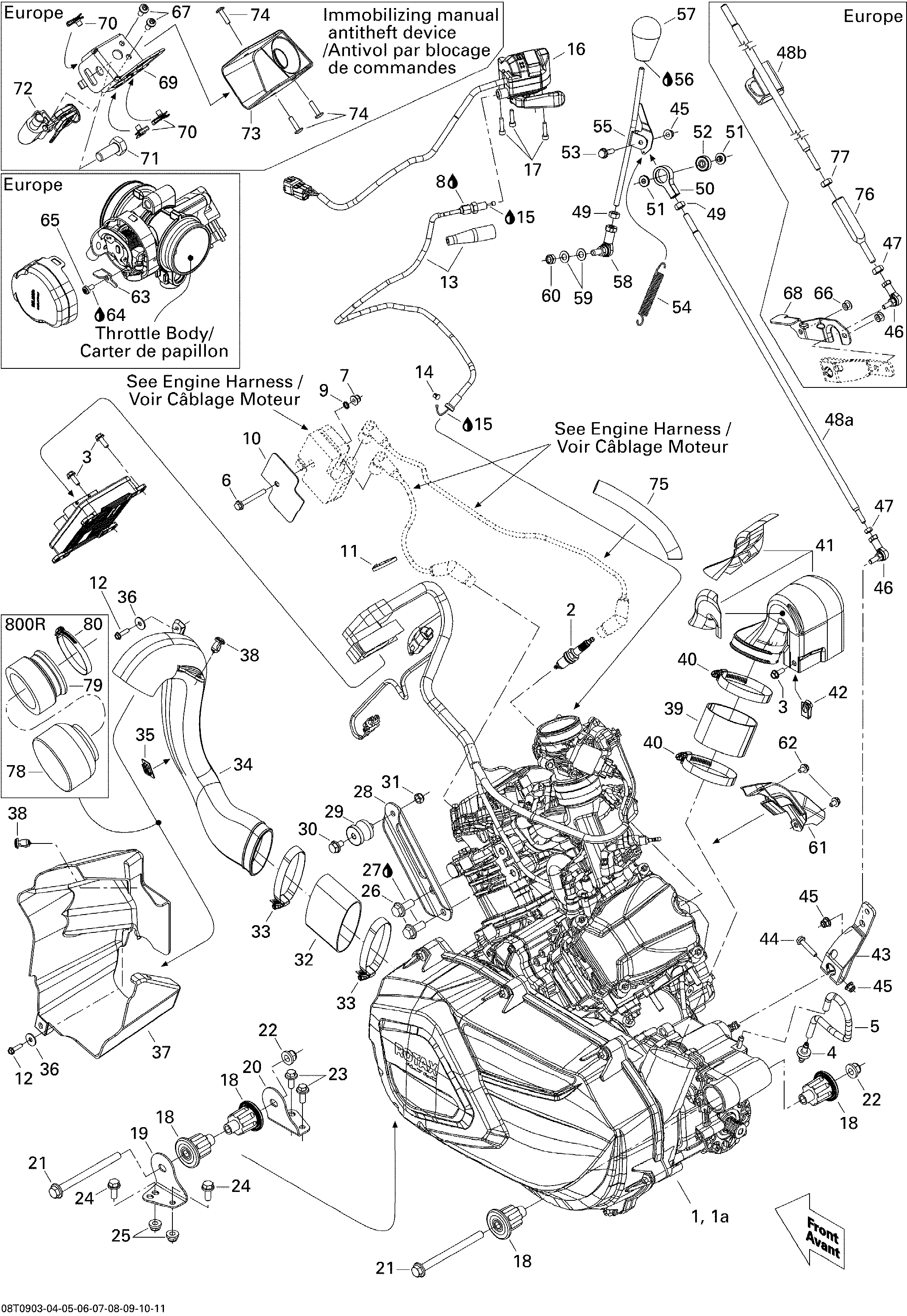

01- Engine And Engine Support для BRP Outlander Max 800R EFI Ltd - 2009
-
№АртикулНазвание
-
1a420081050 Long Block 810 EngineLong Block 810 Engine
-
2707000246 Spark Plug, NGK DCP-R8ESpark Plug, NGK DCP-R8E
-
3210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4275500398 Check ValveCheck Valve
-
5276000048 Hose 6 mmHose 6 mm
-
6207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
9234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
10710000073 Insulator PadInsulator Pad
-
11414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
12210252040 Hex. Forming ScrewHex. Forming Screw
-
13707000393 Throttle CableThrottle Cable
-
14707000434 Cable GuideCable Guide
-
15293600041 Cable Lubricant, 400 GCable Lubricant, 400 G
-
16707000595 Throttle HandleThrottle Handle
-
17205052588 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
18707000426 Anti-vibration MountAnti-vibration Mount
-
19707000364 Engine Bracket, BlackEngine Bracket, Black
-
20707000396 Engine Bracket, BlackEngine Bracket, Black
-
21230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
22233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
23207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
24207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
25233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
26207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
27293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
28707000371 Upper Engine Bracket, BlackUpper Engine Bracket, Black
-
29274000839 Rubber IsolatorRubber Isolator
-
30207581046 Flanged Screw M8 x 10 (Scotch Grip)Flanged Screw M8 x 10 (Scotch Grip)
-
31232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
32707000719 Flexible AdaptorFlexible Adaptor
-
33293650091 Norma ClampNorma Clamp
-
34707000723 Air InletAir Inlet
-
35293750040 Tie-rap MountTie-rap Mount
-
36391302000 Flat WasherFlat Washer
-
37707000461 Water DeflectorWater Deflector
-
38293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
39706600007 Flexible AdaptorFlexible Adaptor
-
40514052859 Norma Gear ClampNorma Gear Clamp
-
41707000459 Outlet Ass'yOutlet Ass'y
-
42250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
43707000691 LeverLever
-
44207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
45233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
46707000545 LH Ball JointLH Ball Joint
-
47232066414 LH Hex. Nut M6LH Hex. Nut M6
-
48a707000579 Threaded RodThreaded Rod
-
48b707000661 Threaded Rod. EuropeThreaded Rod. Europe
-
49232081414 Hex. Nut M8Hex. Nut M8
-
50707000575 PivotPivot
-
51707000576 BushingBushing
-
52293350039 Ball BearingBall Bearing
-
53207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
54707000577 SpringSpring
-
55707000578 Lever ArmLever Arm
-
56293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
57705500022 Lever ButtonLever Button
-
58707000546 RH Ball JointRH Ball Joint
-
59506151252 WasherWasher
-
60232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
61707000410 Cover OPSCover OPS
-
62210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
63707000572 Speed Limiter. EuropeSpeed Limiter. Europe
-
64293800060 Loctite 243, 10 ml. EuropeLoctite 243, 10 ml. Europe
-
65250000332 Screw M4 X 8. EuropeScrew M4 X 8. Europe
-
66390402200 Pop Rivet 3/16''. EuropePop Rivet 3/16''. Europe
-
67205951046 Screw Socket Head, M5 X 10. EuropeScrew Socket Head, M5 X 10. Europe
-
68707000692 Antitheft Plate. EuropeAntitheft Plate. Europe
-
69707000664 Fixing Plate. EuropeFixing Plate. Europe
-
70250100048 Extruded Panel Nut M4 X 0.7. EuropeExtruded Panel Nut M4 X 0.7. Europe
-
71205402596 Socket Head Screw , M10 X 25. EuropeSocket Head Screw , M10 X 25. Europe
-
72707000666 Lock. EuropeLock. Europe
-
73707000667 Cover Lock. EuropeCover Lock. Europe
-
74250000242 Truss Torx Screw M4 X 16. EuropeTruss Torx Screw M4 X 16. Europe
-
75409901800 Tubing 13 mm. EuropeTubing 13 mm. Europe
-
76707000668 Adjustment Block. EuropeAdjustment Block. Europe
-
77232061600 Hex. Nut M6. EuropeHex. Nut M6. Europe
-
78707000720 CVT FilterCVT Filter
-
79707000735 Foam CoreFoam Core
-
80293650091 Norma ClampNorma Clamp
