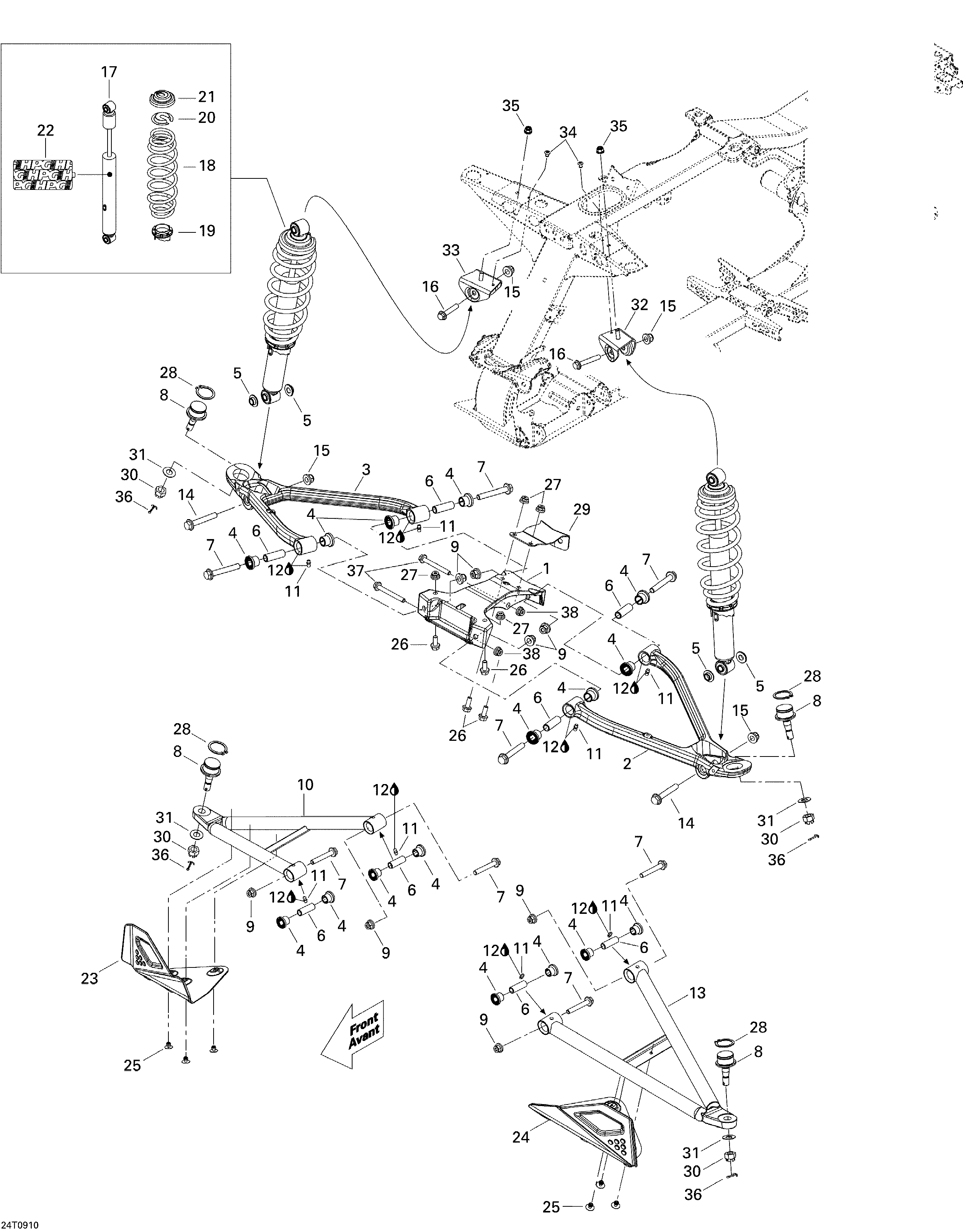

07- Front Suspension 500 для BRP Renegade 500 - 2009
-
№АртикулНазвание
-
1706200476 Upper Arm BracketUpper Arm Bracket
-
2706200763 LH Upper ArmLH Upper Arm
-
3706200764 RH Upper ArmRH Upper Arm
-
4706200181 CushionCushion
-
5706200677 Spacer BushingSpacer Bushing
-
6706200678 Inner BushingInner Bushing
-
7207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
8706200653 Ball JointBall Joint
-
9233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
10706200612 RH Suspension Arm, BlackRH Suspension Arm, Black
-
11408200700 Grease FittingGrease Fitting
-
12293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
13706200604 LH Suspension Arm, blackLH Suspension Arm, black
-
14207606546 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
-
15233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
16207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
17706200667 Front Shock. 500 EFIFront Shock. 500 EFI
-
18706200775 Paint Spring. RedPaint Spring. Red
-
18706200829 Paint Spring. YellowPaint Spring. Yellow
-
19706000294 Adjuster RingAdjuster Ring
-
20706200881 Spring StopperSpring Stopper
-
21503191610 CapCap
-
23706200616 RH ProtectorRH Protector
-
24706200615 LH ProtectorLH Protector
-
25293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
26207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
27233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
28293370009 Circlip 32 mmCirclip 32 mm
-
29706200405 Upper Arm BracketUpper Arm Bracket
-
30250100099 Nut M12Nut M12
-
31706200281 Hardened WasherHardened Washer
-
32706200735 LH Upper BracketLH Upper Bracket
-
33706200736 RH Upper BracketRH Upper Bracket
-
34390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
35233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
36211400017 Cotter PinCotter Pin
-
37207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
38233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
