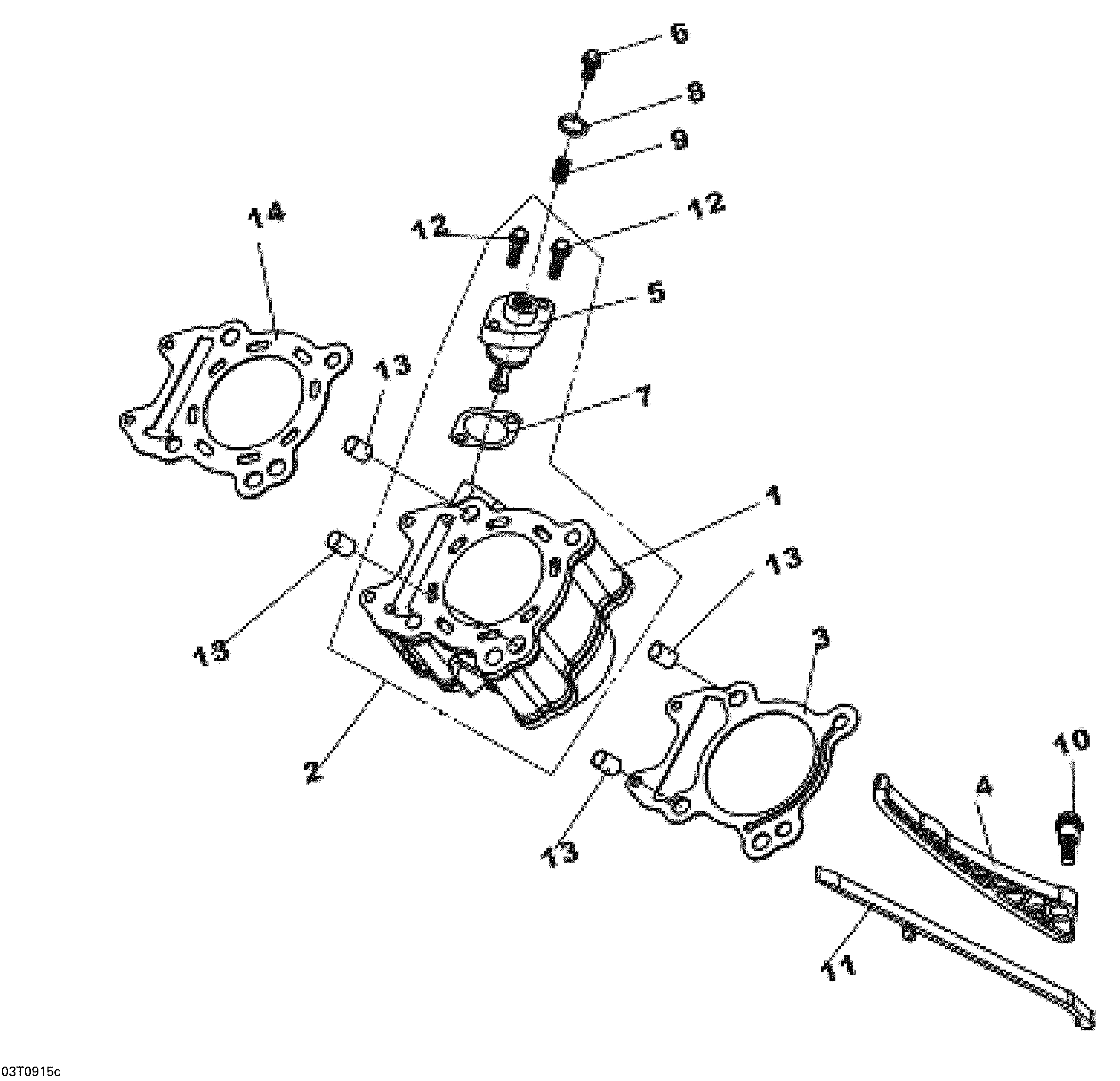

01- Cylinder для BRP DS 250 NA, CE & INT - 2010
-
№АртикулНазвание
-
1S12100RCA000 CylinderCylinder
-
3S12191HMA000 Cylinder GasketCylinder Gasket
-
4S14510HMA000 Cam Chain TensionerCam Chain Tensioner
-
5S14520H6T000 Tensioner LifterTensioner Lifter
-
6S14522H6T000 Adjuster BoltAdjuster Bolt
-
7S14523M9Q000 Tensioner Lifter GasketTensioner Lifter Gasket
-
8S14524H6T000 O-ringO-ring
-
9S14525H6T000 Adjuster SpringAdjuster Spring
-
10S14531KJ9000 Cam Chain Tensioner PivotCam Chain Tensioner Pivot
-
11S14610HMA000 Cam Chain GuideCam Chain Guide
-
12S90001M9Q000 Flanged Hex. ScrewFlanged Hex. Screw
-
13S9430112200 Dowel PinDowel Pin
-
14S12251HMA000 Cylinder Head GasketCylinder Head Gasket
