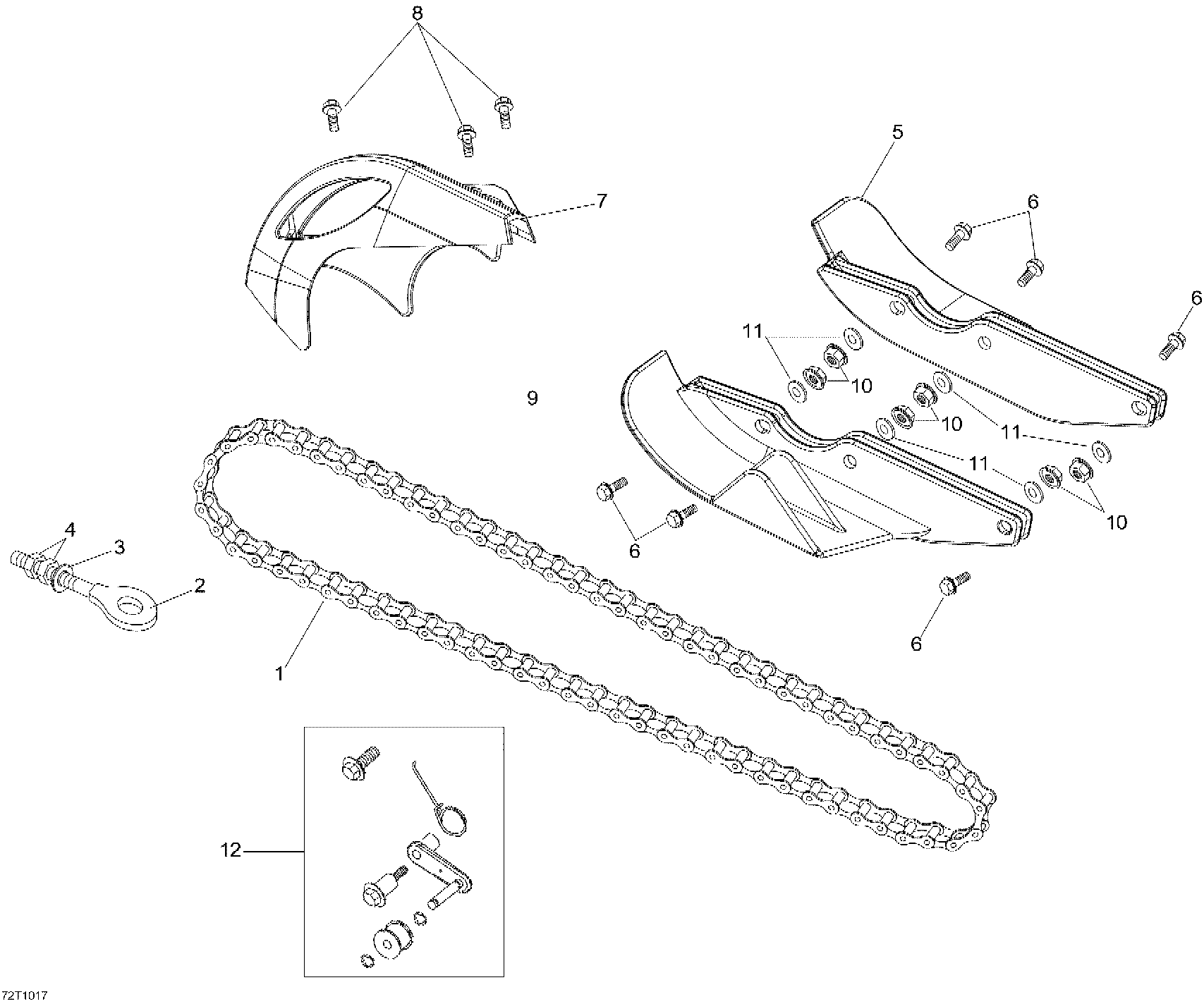

08- Chain для BRP DS 90 X - 2010
-
№АртикулНазвание
-
1V14428DGF01H ChainChain
-
2V50205DGF010 Chain AdjusterChain Adjuster
-
3V941010816015L WasherWasher
-
4V940010800001L Hexagonal Nut M8Hexagonal Nut M8
-
5V80118DGF00H LH SkidLH Skid
-
6A9600008025 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
7V83750DGF020 Chain CoverChain Cover
-
8V930000601201 Round Head ScrewRound Head Screw
-
9V80119DGF00H RH SkidRH Skid
-
10232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
11V941010816015L WasherWasher
-
12V72301DGF000 Chain TensionerChain Tensioner
