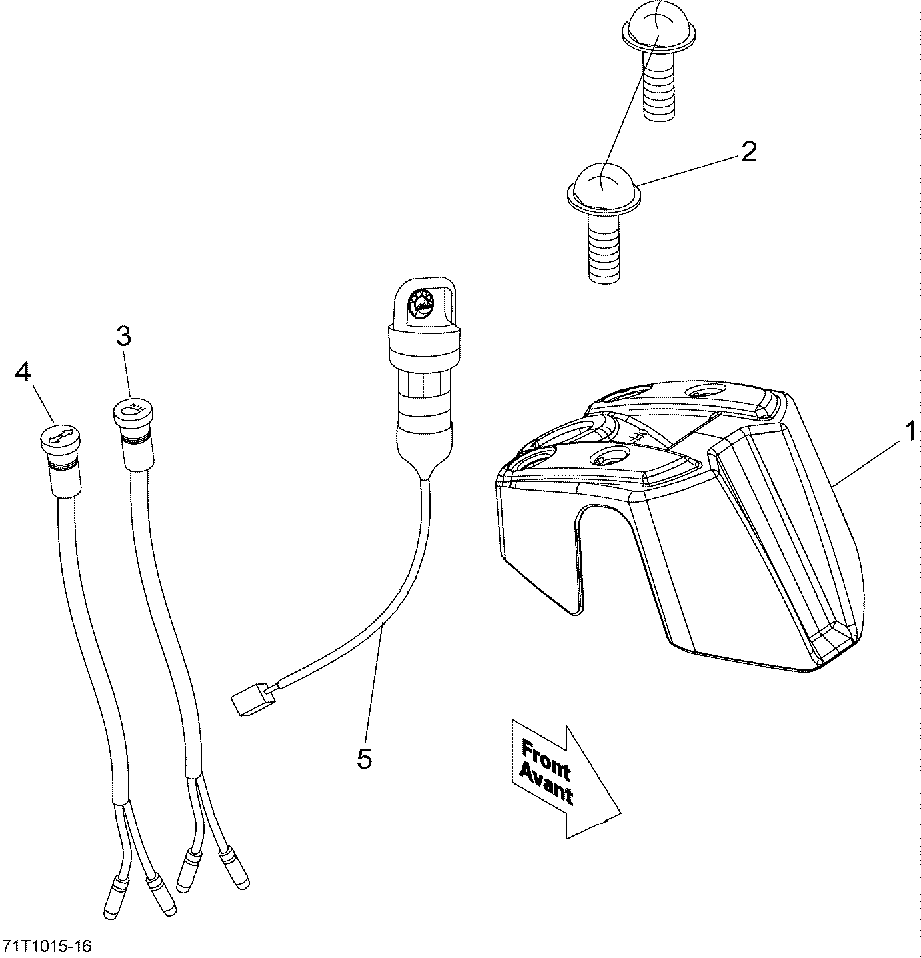

10- Indicator Lights And Cover для BRP DS 90 - 2010
-
№АртикулНазвание
-
1V80109DGF030BKLL Steering CoverSteering Cover
-
2V930000601201 Round Head ScrewRound Head Screw
-
3V33512DGF020GR Indicator Lights, NeutralIndicator Lights, Neutral
-
4V33513DGF020RD Indicator Lights, ReverseIndicator Lights, Reverse
-
5V35100DGF010 Key SwitchKey Switch
